Connections - Sharp PN-80SC5 Installationsanleitung

Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
For power outlet
Power cord
(Supplied)

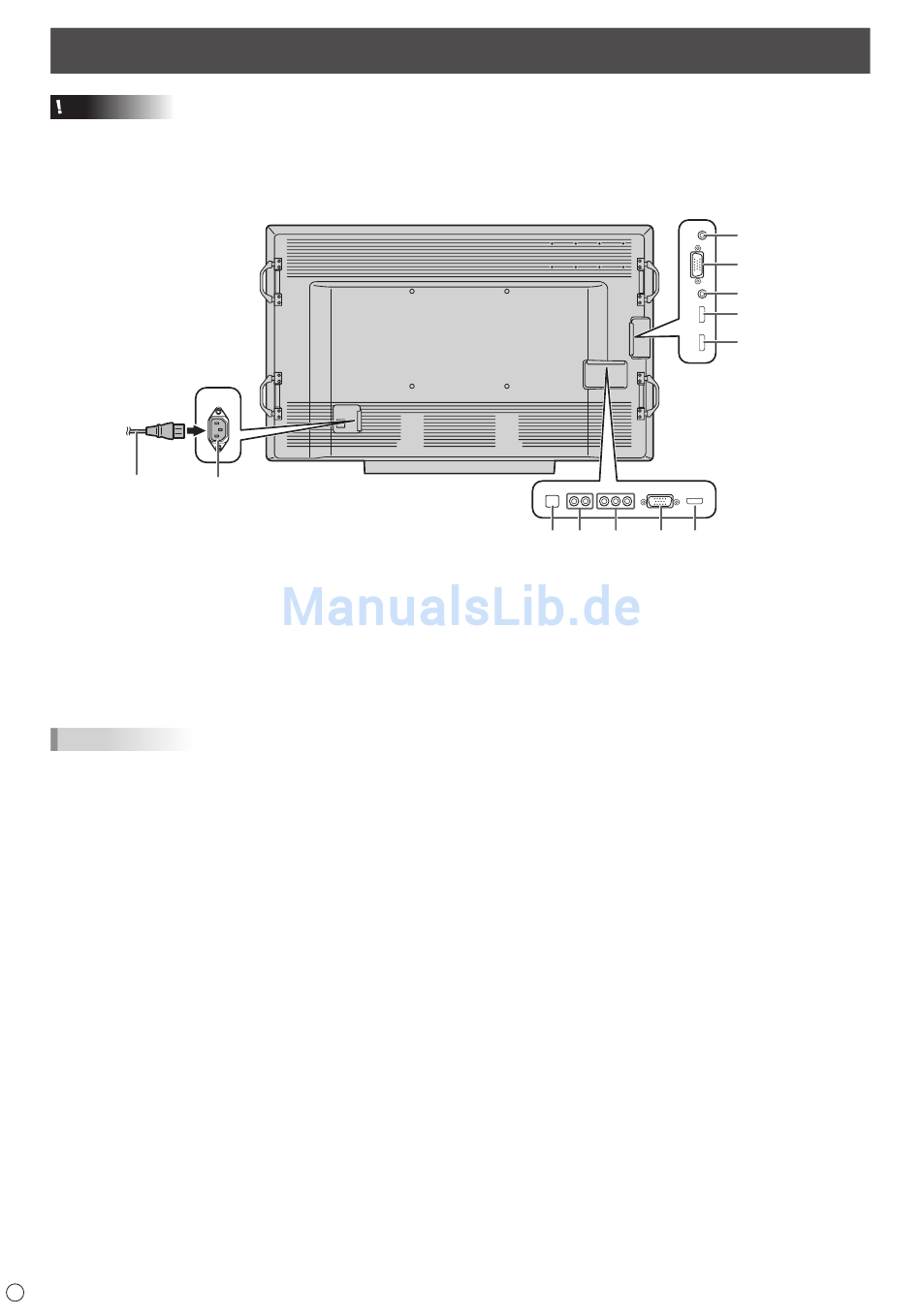

1. AC input terminal
2. Audio output terminal
3. D-sub input terminal (INPUT5)
4. Audio input terminal (for INPUT2/INPUT5)
5. HDMI 1 input terminal (INPUT1)
6. HDMI 2 input terminal (INPUT2)
TIPS
• To use the touch panel, connect the USB cable (supplied) to your computer.
• The touch panel operates with the standard Window driver. On the Mac, operation is only possible in mouse mode.
• Pen Software can be installed from the supplied CD-ROM.
When the Information Display Downloader is installed, you can check and download the most recent versions of the software
programs.
Download the setup program for the Sharp Display Connect and Touch Viewing Software with the Information Display Downloader.
To install and use the software, see the manual for each.
• Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or
other countries.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing, LLC in the United States and other countries.
• Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the
United States and/or other countries.
• Be sure to clamp the power cord (supplied) onto the cable clamp attachment using the supplied cable clamp (for power
cord). When clamping the power cord, take care not to stress the terminal of the power cord. Do not bend the power cord
excessively.
6
E

Connections

1
11 10 9
7. HDMI 3 input terminal (INPUT3)
8. RS-232C input terminal
9. AV component input terminals (INPUT4)
10. Audio input terminals (for INPUT4)
11. USB port (for touch panel)
2
3
4
5
6
8 7
