FITTING SUBFRAME & LOADER TO TRACTOR
Check that the markings on the accessory boxes
correspond with those on loader and subframe. Except
specifying details on the tractor model, the transfer on
the subframe accessory box also indicates number of
packages included in the set as well as Part Numbers.
Check this information.
Read enclosed instructions before attempting to attach
the loader.
Attach the subframe and connect the valve or the hose
set of the loader to the tractor's hydraulic system
according to instruction.

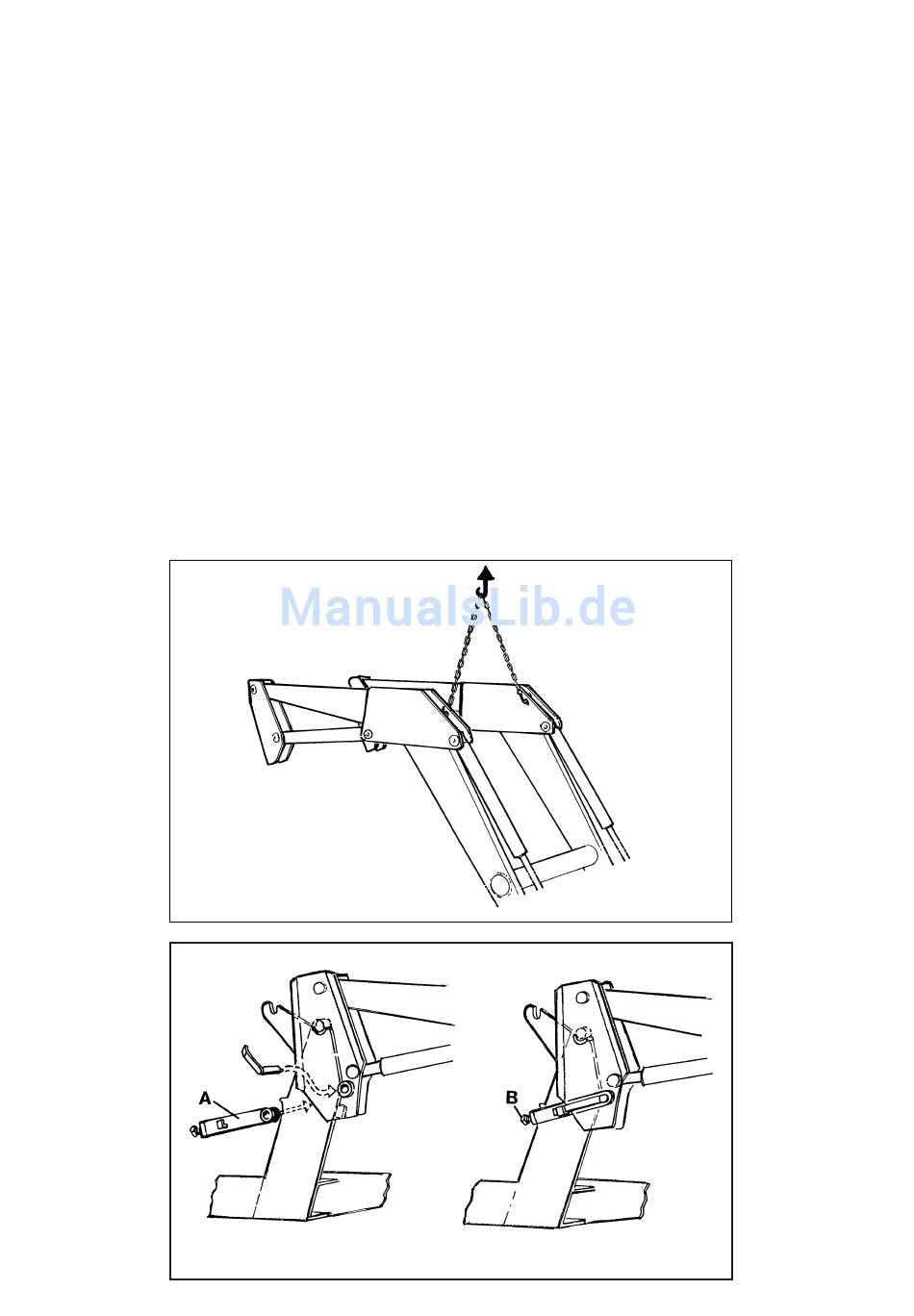

Lift the loader on to the subframe (Illus.17.).
Attach the retaining forks (see illus.18(A) and tighten
screws (B).
17
18
ENGLISH (107:01)
A key is supplied with the loader (in the cross pipe of the
loader).
The control device of the valve is to be connected to the
valve (if one is mounted) so that the loader beam is
lifted when the lever is brought backwards.
The control device is equipped with a mechanic catch,
that, if connected, prevents an uncontrolled operation.
