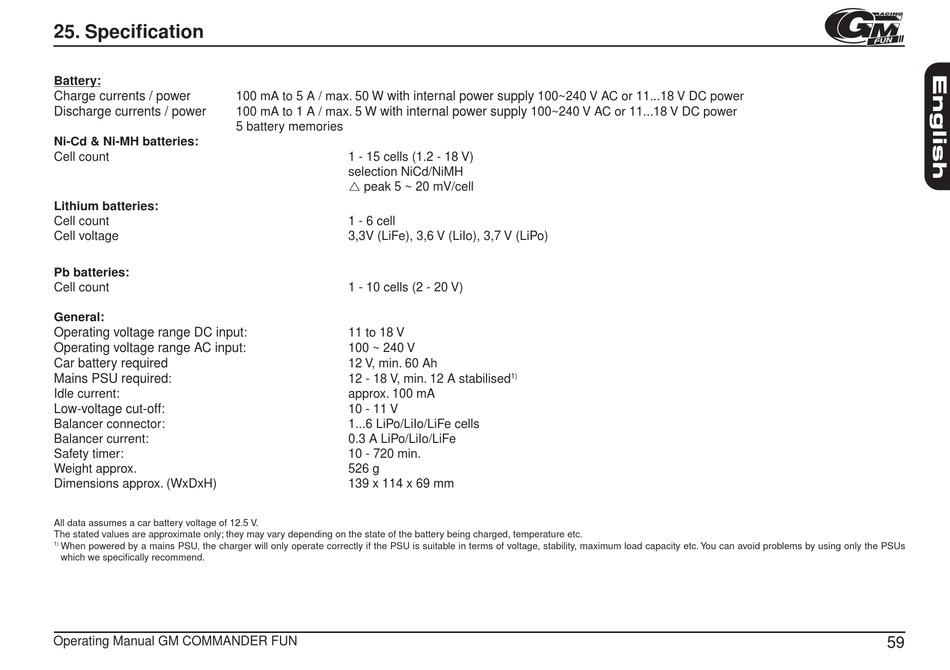

25. Specification

Battery:
Charge currents / power
Discharge currents / power
Ni-Cd & Ni-MH batteries:
Cell count
Lithium batteries:
Cell count
Cell voltage
Pb batteries:
Cell count
General:
Operating voltage range DC input :
Operating voltage range AC input :
Car battery required
Mains PSU required :
Idle current:
Low-voltage cut-off:
Balancer connector:
Balancer current:
Safety timer:
Weight approx.
Dimensions approx. (WxDxH)
All data assumes a car battery voltage of 12.5 V.
The stated values are approximate only; they may vary depending on the state of the battery being charged, temperature etc.
1)
When powered by a mains PSU, the charger will only operate correctly if the PSU is suitable in terms of voltage, stability, maximum load capacity etc. You can avoid problems by using only the PSUs
which we specifically recommend.
Operating Manual GM COMMANDER FUN
100 mA to 5 A / max. 50 W with internal power supply 100~240 V AC or 11...18 V DC power
100 mA to 1 A / max. 5 W with internal power supply 100~240 V AC or 11...18 V DC power
5 battery memories
1 - 15 cells (1.2 - 18 V)
selection NiCd/NiMH
 peak 5 ~ 20 mV/cell
1 - 6 cell
3,3V (LiFe), 3,6 V (LiIo), 3,7 V (LiPo)
1 - 10 cells (2 - 20 V)
11 to 18 V
100 ~ 240 V
12 V, min. 60 Ah
12 - 18 V, min. 12 A stabilised
approx. 100 mA
10 - 11 V
1...6 LiPo/LiIo/LiFe cells
0.3 A LiPo/LiIo/LiFe
10 - 720 min.
526 g
139 x 114 x 69 mm
1)
