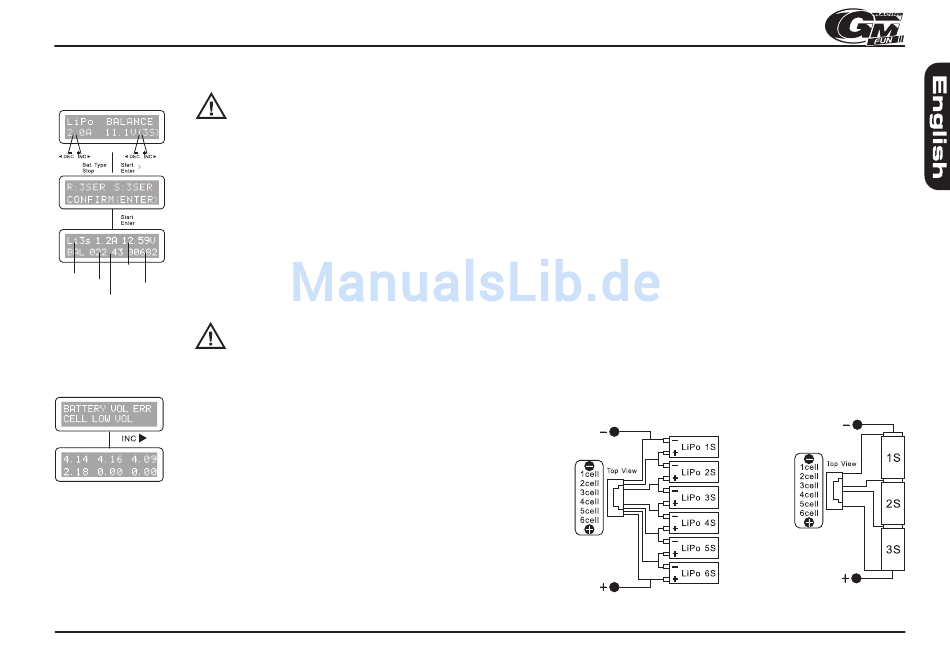

13. LiXX charge program with balancer

Charging LiXX packs with a balancer connection:
ATTENTION: if the balancer lead is not connected, the individual cells in the battery will not be balanced!
LiPo BALANCE:
Press the 'Batt. Type / Stop' button to move to the PROGRAM SELECT - LiPo BATT menu. Now press 'Start - Enter' for the 'LiPo
3 sec.
CHARGE' menu, followed by INC to move to the balancer program entitled BALANCE.
The default pre-set charge current and cell count are displayed on the screen. If you wish to change these settings, press 'Start
- Enter' again: the charge current starts to flash, and can now be changed using the DEC or INC button. Pressing the 'Start -
Enter' button again takes you to the cell count, which can be adjusted in the same manner.
When the settings are correct, hold the 'Start - Enter' button pressed in for three seconds; the charger then initiates the auto-
matic cell detect process BATTERY CHECK (please refer to Chapter 11 for details of programming the CHK time), and displays
the values on the screen. If everything is correct, press the 'Start - Enter' button to initiate the charge process; if you need to
Battery
Number voltage
correct the values again, you can interrupt the process with 'Stop'.
of cell Charging
charged
time
capacity
To interrupt the charge process before it terminates automatically, press the 'Stop' button.
Charging current
WARNING: it is absolutely essential to enter the correct charge current and cell count at this point, otherwise the
battery may be damaged or - worse - ignite or even explode!
If you press the INC button during the charge / discharge
process, the screen will display the individual cell voltages
of the battery connected to the charger. Pressing the INC
button again takes you back to the Charge display.
Note: if the voltage of one cell differs substantially from the
others during the charge / discharge process, the screen
displays the warning BATTERY VOL ERROR, and the char-
ger halts the process; the screen also shows the CELL
LOW VOL alert (= low cell voltage). Pressing the INC button
again at this point takes you to a display of the individual
cell voltages, where you can see that the voltage of cell
3 is too low, and the balancer is unable to correct it. If this
should happen, your battery needs to be checked.
Operating Manual GM COMMANDER FUN
Balancer connection
Balancer
port
Balancer
port
47
