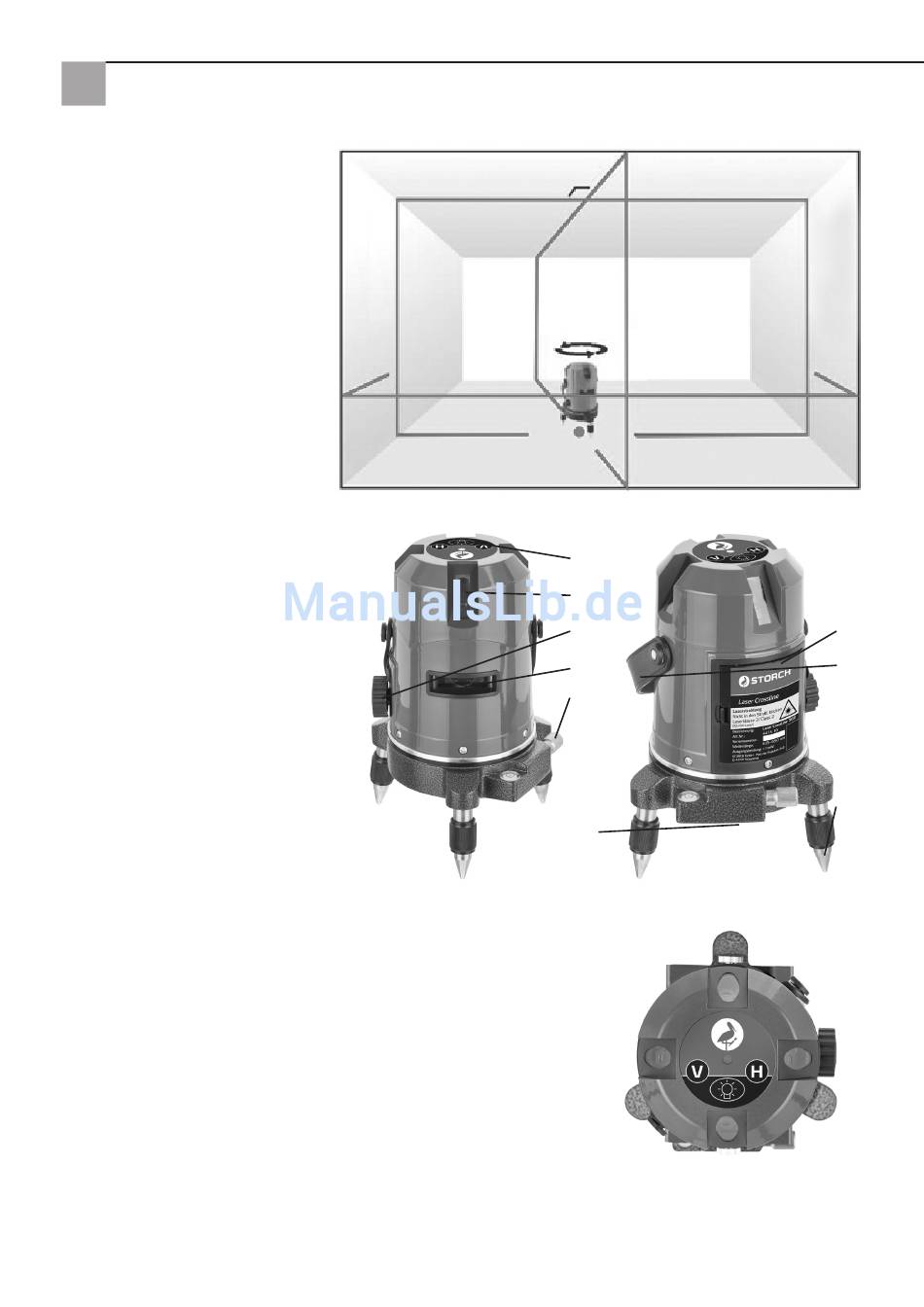

Laser line view

4 x vertical laser
1 x horizontal laser
1 x laser lot point downwards.
(The position of the lot point lies par-
allel to the intersection of the vertical
laser lines at the ceiling.)

Device description

CrossLine cross line lasers with well
visible laser lines are excellent for
aligning tiles, framework, windows,
doors etc.
1.
Key control panel
2.
4. Laser exit window for vertical
laser
3.
On/off switch
4.
Battery cover
5.
1. Laser exit window for horizontal
laser
6.
Carrying belt
7.
Fine adjustment of the vertical laser
lines with spirit-level
8.
3. Adjustable feet with levelling
screws
9.
Plumbline laser and tripod thread
with 5/8"

Control Panel

1.
Key Vertical line "V"
2.
Control LED
3.
Key horizontal line "H"
4.
Dimmer button "bulb icon" bright / dark
