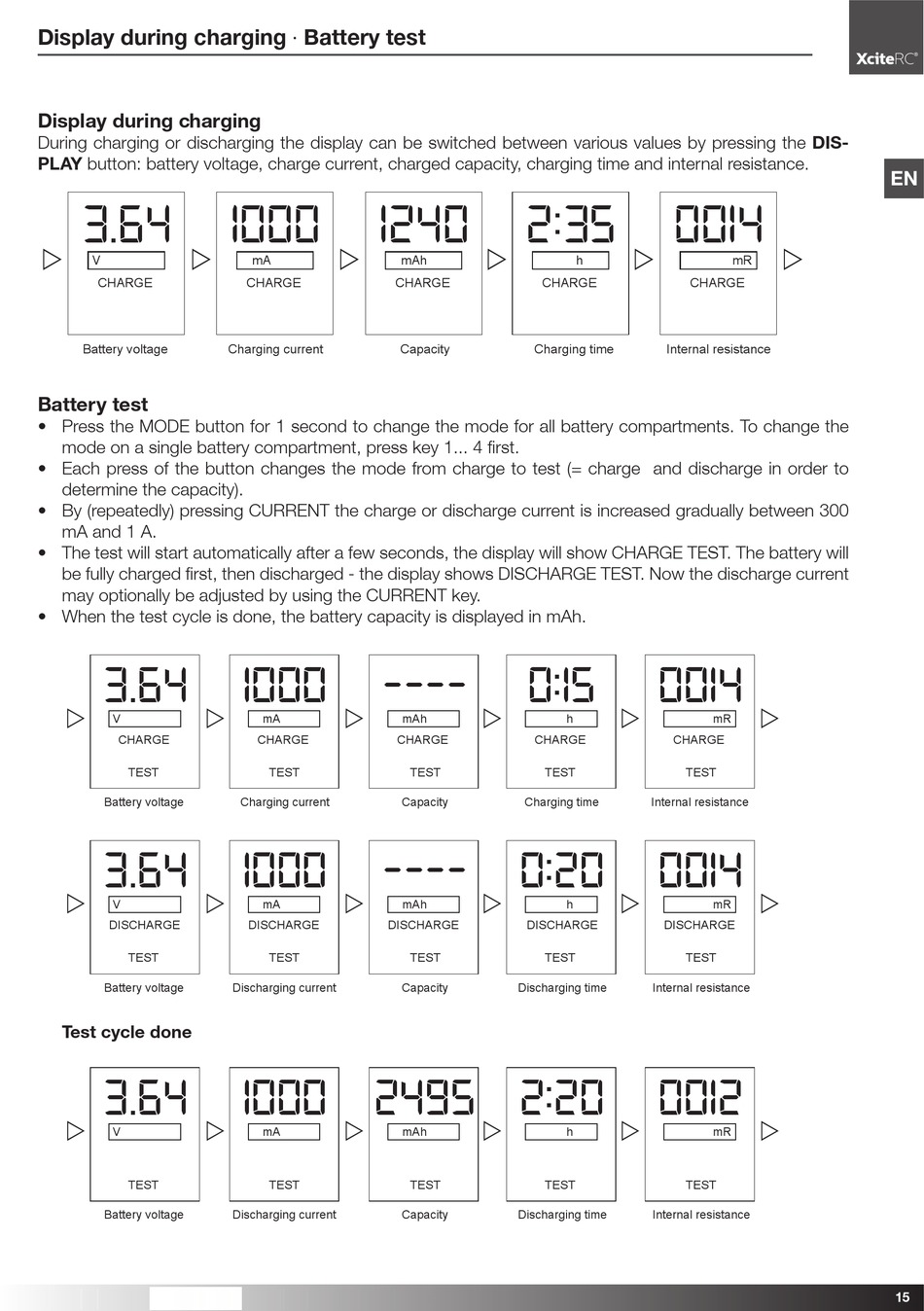

Display during charging · Battery test

Display during charging

During charging or discharging the display can be switched between various values by pressing the DIS-
PLAY button: battery voltage, charge current, charged capacity, charging time and internal resistance.
3.64
 
V
CHARGE
Battery voltage

Battery test

• Press the MODE button for 1 second to change the mode for all battery compartments. To change the
mode on a single battery compartment, press key 1... 4 first.
• Each press of the button changes the mode from charge to test (= charge and discharge in order to
determine the capacity).
• By (repeatedly) pressing CURRENT the charge or discharge current is increased gradually between 300
mA and 1 A.
• The test will start automatically after a few seconds, the display will show CHARGE TEST. The battery will
be fully charged first, then discharged - the display shows DISCHARGE TEST. Now the discharge current
may optionally be adjusted by using the CURRENT key.
• When the test cycle is done, the battery capacity is displayed in mAh.
