Overview; Using The Charger For The First Time - XciteRC 52000015 Bedienungsanleitung

Overview · Specifications · Operation

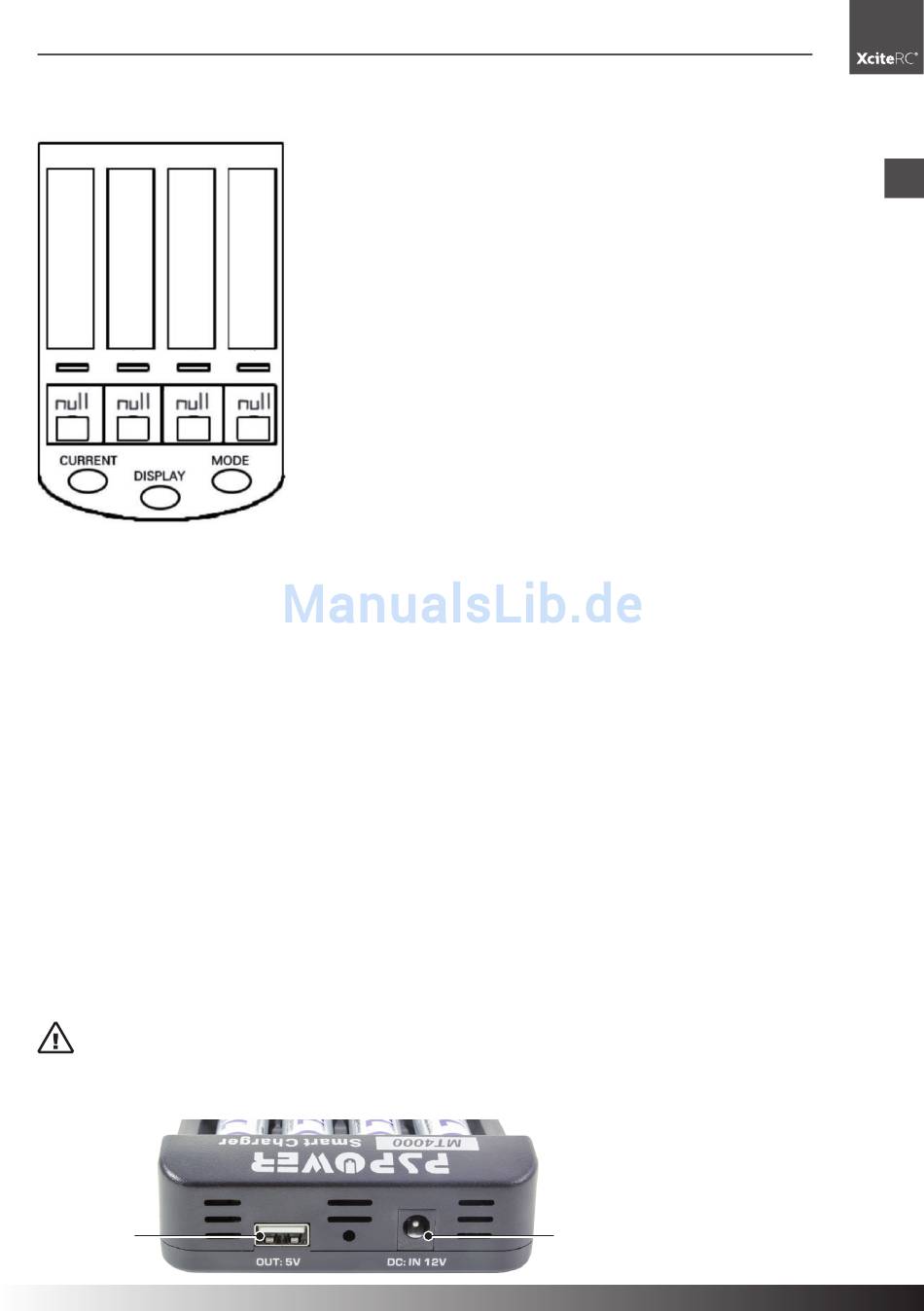

Overview

2
1 3
Specifications
Input voltage
Power consumption
Type of battery
Battery compartments
Charging current
NiCd, NiMH charging method
Discharge current
Modes
USB port

Using the charger for the first time

WARNING: use only the included mains adapter - fire or explosion hazard! Connect the included
mains adapter to the charger, then connect the mains adapter to an electrical outlet with 100-240 V AC. All
LCD segments shows null. The charger is now ready for operation.
USB port
5 V / 1000 mA
Charger 52000015
1, 2, 3, 4: Select the battery compartment and set the charging
parameters by pressing the buttons MODE or CUR-
RENT
MODE: Select mode charge or test or test (charge and di-
scharge). Press and hold the button for min. 1 se-
cond down to activate the mode. To change the
mode on a single battery compartment, press pre-
viously key 1 ... 4.
4
DISPLAY: one keypress shows rotating the charging current,
charging time, voltage, capacity and internal resis-
tance
CURRENT: Sets the charging current. The button works only
during the first eight seconds after inserting the bat-
teries. By pressing (repeatedly) the charging current
is increased gradually between 300 mA and 1 A. To
change the charge current on a single battery com-
partment, press previously key 1 ... 4.
100 - 240 V AC 50 Hz (mains adapter)
12V DC (via low-voltage socket), min. 3 A
max. 36 W
NiCd - NiMH: AA, AAA, A, SC, C
Li-Ion: LIR26650, 22650, 26500, 18650, 17670, 18490, 17500,
17335, 16340 (123A), 14500, 10440
4
300, 500, 700, 1000 mA (set separately per battery compartment)
∆ Peak
150, 250, 350, 500 mA (set separately per battery compartment)
Charging, test (set separately per battery compartment)
5 V max. 1 A
Mains adapter
port
EN
