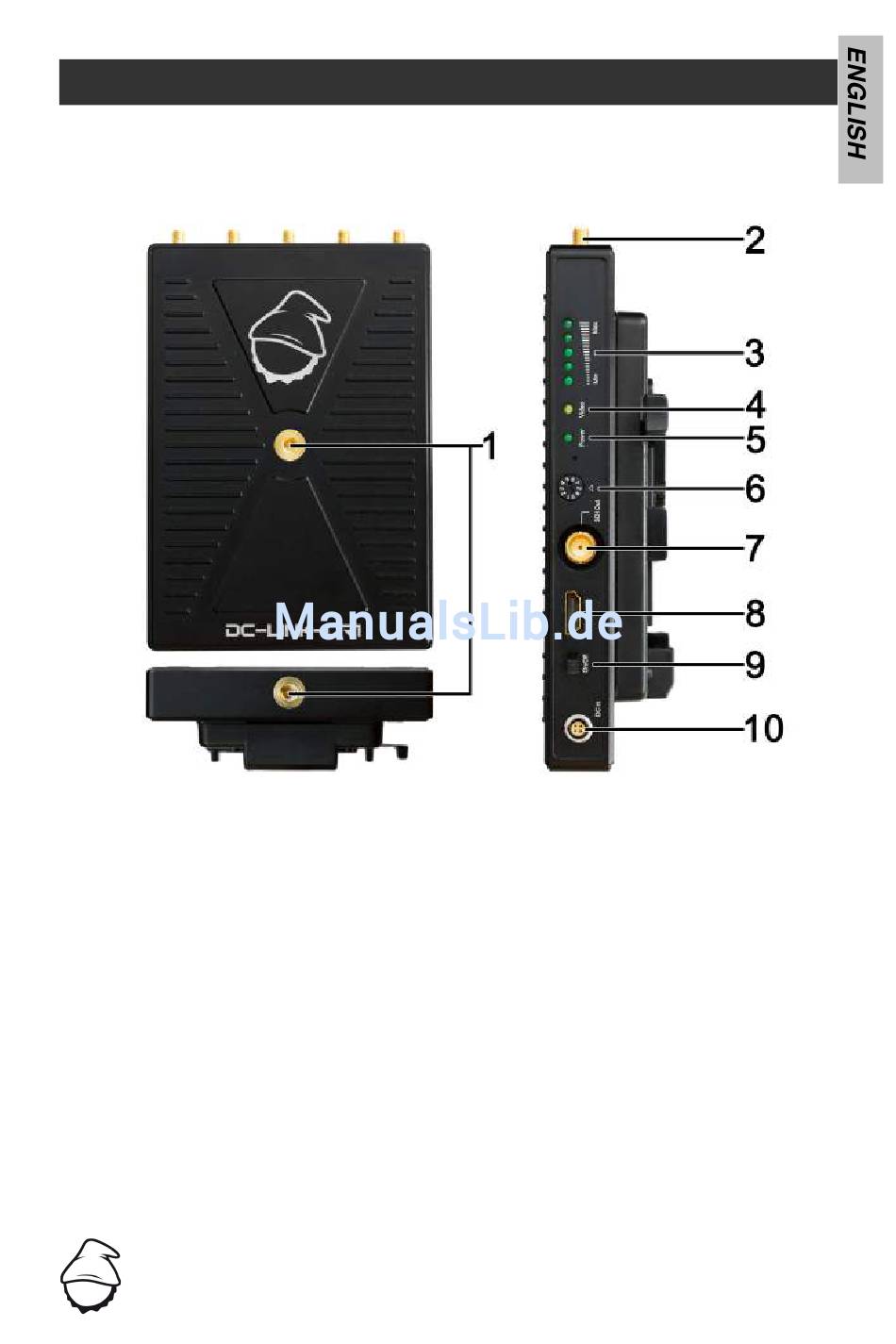

Product Description
Receiver:
¼" Tripod Mount
1)
Antenna Connection: RP-SMA (male) Connector
2)
RSSI Status Display: Signal Strength (5 Green LEDs)
3)
Video Status Display: Yellow LED
4)
Power Status Display: Green LED
5)
Frequency Selector: 10 Channels at Positions 0-9
6)
(Channels 5&6 permitted in Europe)
SDI-IN: 3G/HD/SD-SDI Input, (BNC Female Connector)
7)
HDMI-IN: HDMI Input (Type A Female Connector)
8)
ON-OFF: Power Switch
9)
10) DC-IN: 6.5 – 16.8V DC
7
