Ground Zero REFERENCE-SERIES Anleitung Seite 11

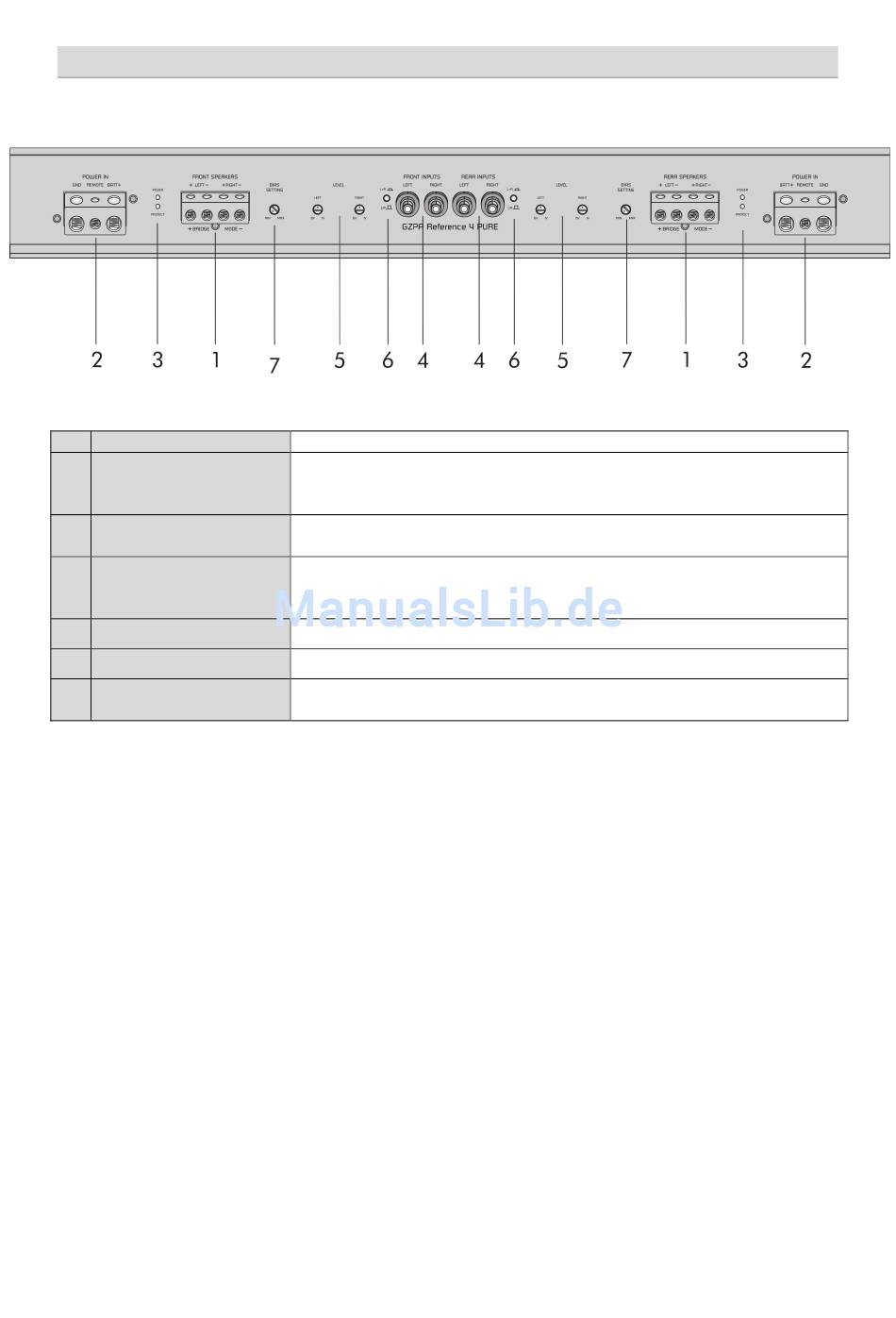

1 Speaker terminals
Power terminals
2
3 Status indication
4 RCA inputs
5 Input level controller
6 Level summarize function
7 Bias Setting
Controls and function
For connection of the speakers
GND -> Ground connection
REM -> Remote in
BATT -> +12 Volt
WHITE – OK
RED – Error
Terminal for connection of the RCA wires.
To avoid failure, please use high quality RCA wires like for example the
Ground Zero GZCC Reference RCA cable.
With this controller you can adjust the input sensitivity.
To summarize both channels to one Level controller. (Details on page 10)
Adjusting the Bias from Class AB to nearly Class A
( Details on page 10)
