Replacement and Spare Parts

1

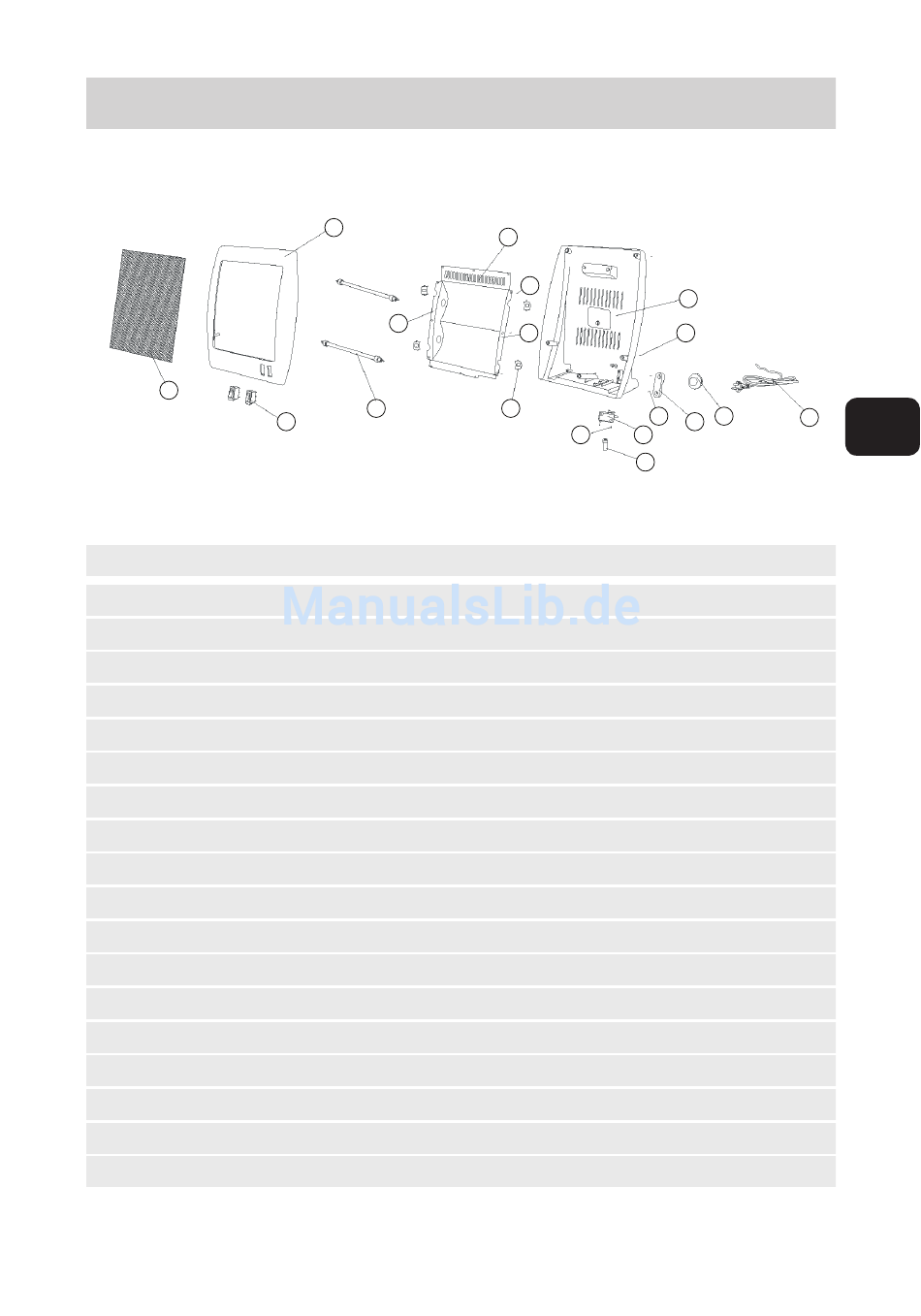

Fig. 3: Exploded view
Item Designation
1 Protective mesh
2 Heating level switch
3 Front housing cover
4 Heating tubes
5 Left screen
6 Reflector
7 Screw
8 Right screen
9 Holder for heating tubes
10 Screw
11 Tip prevention switch trigger
12 Tip prevention switch
13 Rear housing cover
14 Screw
15 Screw
16 Cable strain relief
17 Cable protection ring
18 Power cord
Tab. 6: Spare Parts List
3
5
4
2
34/36
6
7
8
9
15
10 12
11
Article number
4 03 03 5568
4 03 03 5569
4 03 03 5570
4 03 03 5571
4 03 03 5572
4 03 03 5573
4 03 03 5574
4 03 03 5575
4 03 03 5576
4 03 03 5577
4 03 03 5578
4 03 03 5579
4 03 03 5580
4 03 03 5581
4 03 03 5582
4 03 03 5583
4 03 03 5584
4 03 03 5585
13
14
17
18
16
