Connecting The Stove - WANDERS Square 60 Anleitung

degrees.
gases adequately, properly and safely.
Fire Safety
For reasons of fire safety is it important to observe the
instructions below before installing the stove.
1. If the floor around the stove is made of combustible
material, you must use a floor slab.
The floor slab must measure at least:
- 50 cm from the stove on the front side of the door
- 30 cm from the stove on the sides of the door.
2. Keep at least a distance of 80 cm between the stove
and combustible objects such as curtains, wooden
objects (cupboards and paintings) and glass objects.
Keep the same distance from the flue tube.
3. Wooden construction parts within the radiation
range of the stove (80 cm from the exterior of the
stove) must be covered with fireproof material.
4. If the flue tube goes through a ceiling and/or roof
that consist of flammable materials, the ceiling and
the roof must be covered with fireproof materials all
around (about 80 cm). Pay also attention to joisted
floor layers and any electric wiring.
5. Keep a distance of at least 50 cm (in all directions)
between the stove and supporting steel construc-
tion parts.
6. Shield off all combustible materials within a radius
of 80 cm from the stove openings with non-com-
bustible materials.
7. Never cover the chimney breast with combustible
material (e.g. paper covering).
8. The wall behind the stove must consist of, or be
insulated with, fire-proof materials. The insulation
material must resist a temperature of 700 °C and
have a density of 80 kg/m3. Please see for insulation
materials table page 24).
9. Avoid heat transmission when placing the stove.
Heat transmission of a burning stove can penetrate
the wall and even cause fire damage on the other
side of the wall. Prevention is better than cure.
Installation
The Square is tested in accordance with the international
EN 13229 standardization, and has an extra additional
standardization for optimally environment-friendly
heating devices related to flue gases (Section 15a B-Vg.
Des BmfWA). The stove can be connected to a flue tube
to which several stoves are connected. The flue tube has
a diameter of 150 mm.
Supply of combustion air
The stove must have enough supply of fresh combustion
air. If necessary, make an extra air supply opening as
close to the stove as possible to avoid draught. An extra
opening for air supply is always required if:
The air supply opening must be closable if it goes through
a fire-resistant wall. When there are several combustion
devices in the same space there must be enough air
openings to guarantee proper combustion.

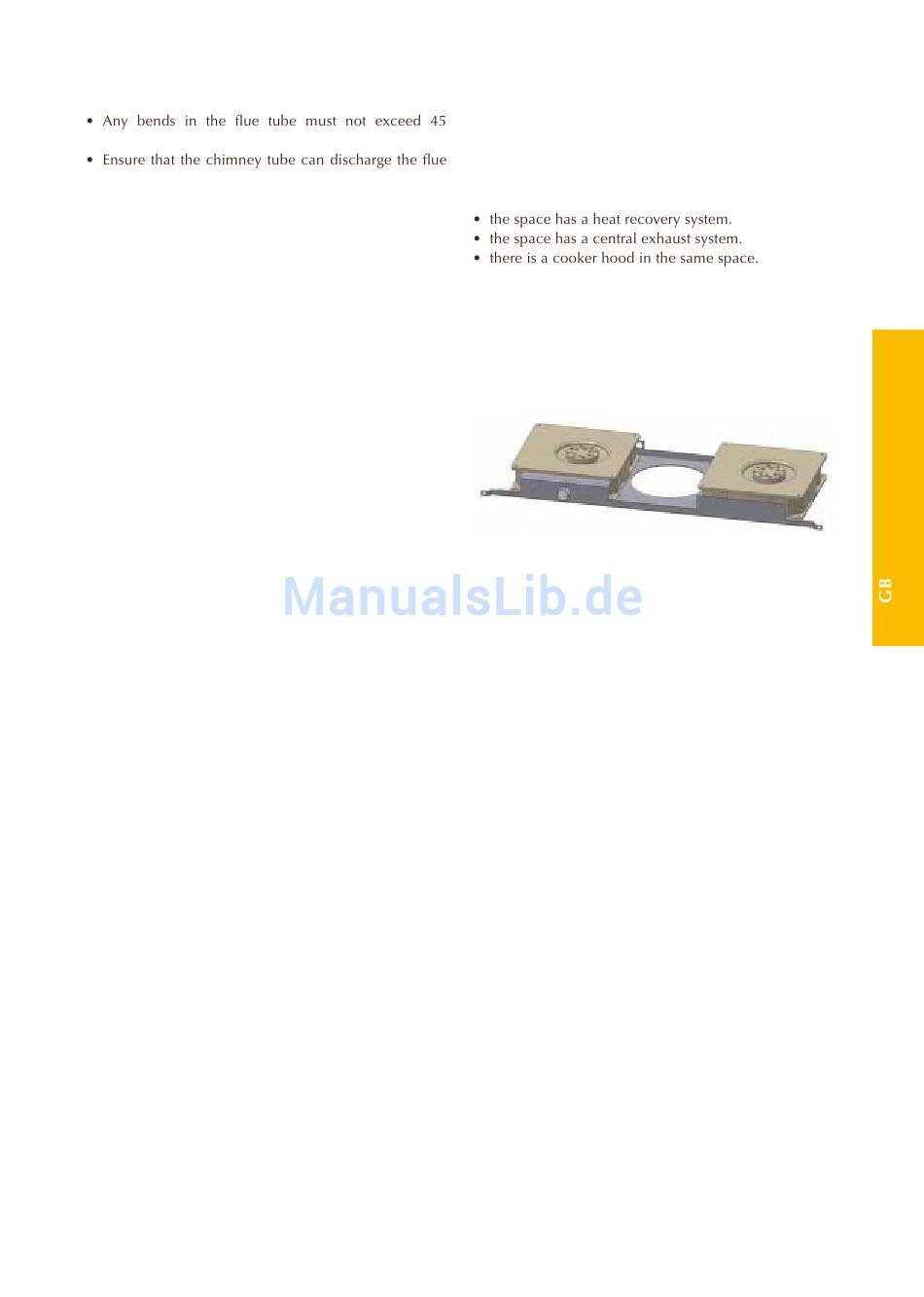

Fans (optional)
The fans can't be placed after the stove has been
installed. When fans were ordered they will be installed
in the factory.
Always connect the fans to an earthed wall socket.
Moreover there must be the possibility to disconnect
the stove from the electricity supply any service or
maintenance.
When starting the fans, they will start with their fastest
speed, you can regulate the speed of the fans with the
knob on the left side. Please be aware that the fans will
produce noise. All efforts are made to reduce this noise
as much as possible.
When refuelling the stove it's advised to turn the fans
off preventing the smoke from being drawn out of the
stove.
The technical specifications from the fans and the control
unit are as follows:
Control unit:
Voltage 230V / 50Hz
Size (L x W x H) 75 x 26 x 20 mm
Fan:
230V ~ 50Hz 120 mA 20W

Connecting the stove

The Square is a heavy insert. Check whether the floor on
which the stove is placed can carry this weight without
problem. You must follow the directions given in de
previous chapter on 'Preparation" before installing.
Please mind your back and the floor during installation!
21
