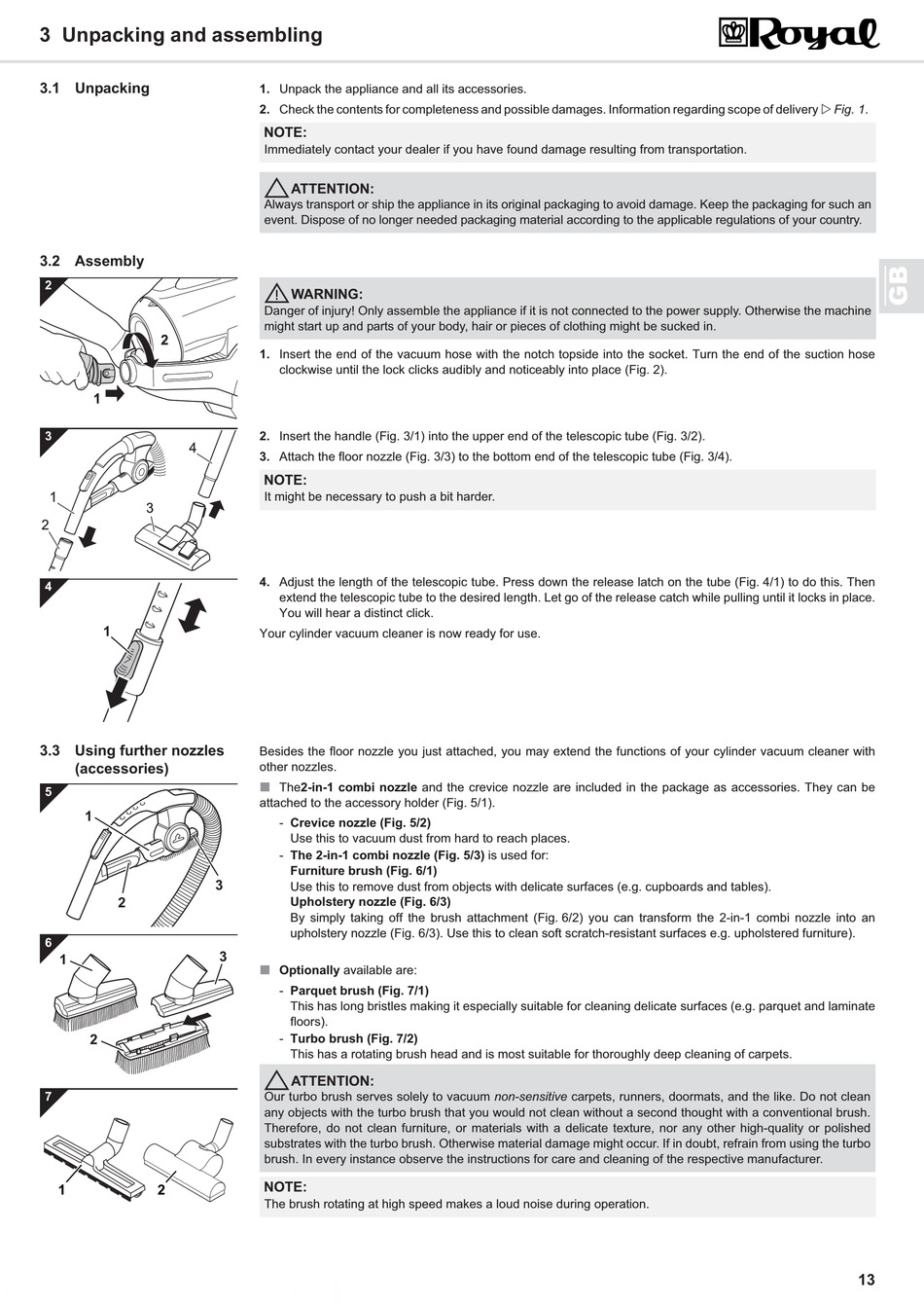

3 Unpacking and assembling

3.1 Unpacking
3 Unpacking and assembling
3.2 Assembly
2
3
4
1
3.3 Using further nozzles
(accessories)
5
1
2
6
1
2
7
1 2
1. Unpack the appliance and all its accessories.
2. Check the contents for completeness and possible damages. Information regarding scope of delivery Z Fig. 1.
NOTE:
Immediately contact your dealer if you have found damage resulting from transportation.
ATTENTION:
Always transport or ship the appliance in its original packaging to avoid damage. Keep the packaging for such an
event. Dispose of no longer needed packaging material according to the applicable regulations of your country.
WARNING:
Danger of injury! Only assemble the appliance if it is not connected to the power supply. Otherwise the machine
might start up and parts of your body, hair or pieces of clothing might be sucked in.
1. Insert the end of the vacuum hose with the notch topside into the socket. Turn the end of the suction hose
clockwise until the lock clicks audibly and noticeably into place (Fig. 2).
2. Insert the handle (Fig. 3/1) into the upper end of the telescopic tube (Fig. 3/2).
3. Attach the floor nozzle (Fig. 3/3) to the bottom end of the telescopic tube (Fig. 3/4).
NOTE:
It might be necessary to push a bit harder.
4. Adjust the length of the telescopic tube. Press down the release latch on the tube (Fig. 4/1) to do this. Then
extend the telescopic tube to the desired length. Let go of the release catch while pulling until it locks in place.
You will hear a distinct click.
Your cylinder vacuum cleaner is now ready for use.
Besides the floor nozzle you just attached, you may extend the functions of your cylinder vacuum cleaner with
other nozzles.
„
The2-in-1 combi nozzle and the crevice nozzle are included in the package as accessories. They can be
attached to the accessory holder (Fig. 5/1).
- Crevice nozzle (Fig. 5/2)
Use this to vacuum dust from hard to reach places.
- The 2-in-1 combi nozzle (Fig. 5/3) is used for:
Furniture brush (Fig. 6/1)
3
Use this to remove dust from objects with delicate surfaces (e.g. cupboards and tables).
Upholstery nozzle (Fig. 6/3)
By simply taking off the brush attachment (Fig. 6/2) you can transform the 2-in-1 combi nozzle into an
upholstery nozzle (Fig. 6/3). Use this to clean soft scratch-resistant surfaces e.g. upholstered furniture).
3
„
Optionally available are:
- Parquet brush (Fig. 7/1)
This has long bristles making it especially suitable for cleaning delicate surfaces (e.g. parquet and laminate
floors).
- Turbo brush (Fig. 7/2)
This has a rotating brush head and is most suitable for thoroughly deep cleaning of carpets.
ATTENTION:
Our turbo brush serves solely to vacuum non-sensitive carpets, runners, doormats, and the like. Do not clean
any objects with the turbo brush that you would not clean without a second thought with a conventional brush.
Therefore, do not clean furniture, or materials with a delicate texture, nor any other high-quality or polished
substrates with the turbo brush. Otherwise material damage might occur. If in doubt, refrain from using the turbo
brush. In every instance observe the instructions for care and cleaning of the respective manufacturer.
NOTE:
The brush rotating at high speed makes a loud noise during operation.
