Important Installation Information

• This appliance may only be connected to a 12 volt system with negative ground.
• Because of high power unit, using the unit while the engine is stopped may totally discharge the
battery, please run the engine in using the unit.
• The heat radiated when the amplifier is used means that sufficient air circulation is requered at the
place of installation. It is very important that the cooler`s cooler ribs do not contact any metal plating or
any surfaces which could impair air circulation.
• The amplifier may not be installed in small confined spaces or spaces without air circulation. Installation
in the boot is recommended.
• Install the amplifier in such a way that it is protected as far as possible against vibrations and dust and
dirt.
•
Make sure that the input/output cables are sufficiently distant from the power supply cables as
otherwise interference may occur.
• Make sure that the fuse and operating elements are accesible after installation.
• The appliances reliability and performance depend on the quality of installation.
• Preferably get an expert to install the system, particularly if you want to install several loudspeakers or a
complex multi-way system.

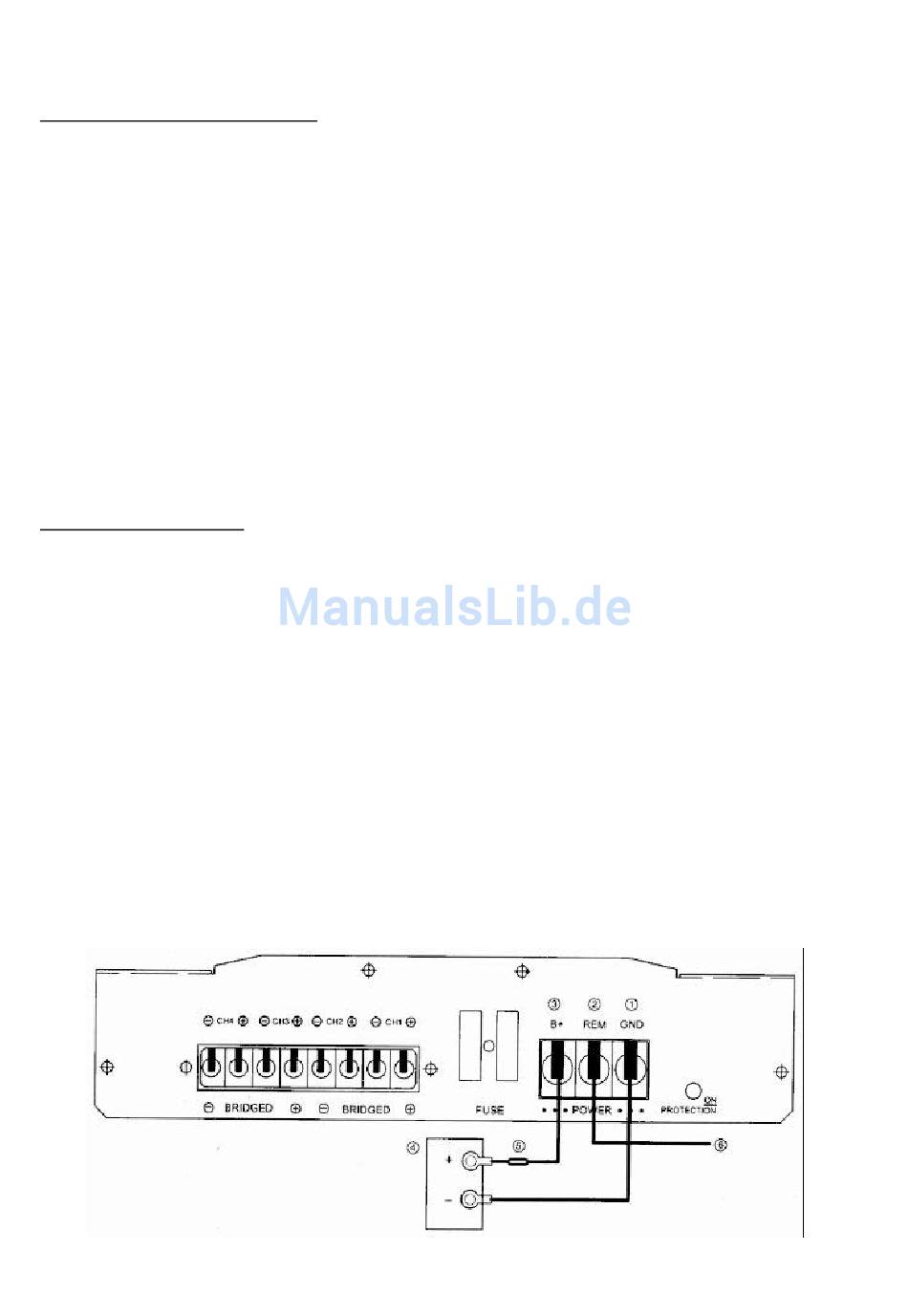

Connection Power Supply
Important Notice!
Before commencing the installation, disconnect the plus terminals from the car
Battery in order to prevent short circuits.
• The power cabling usually installed in on –board car networks is not sufficient for a power
•
Amplifiers demands.
•
Make sure that the power lines to GND and to the +12 V terminal have been suffciciently specivied.
a cable cross- section of 12 mm² must be used to connect the battery to the amplifiers terminals.
• First connect the amplifiers GND terminal to the batterys minus pole. It is very important that the
connection point. A loose connection may cause malfunctions or interference noise or distortion.
• The +12V amplifier connection must then be connected with a power cable possessing an integrated
fuse to the batterys plus pole. The fuse should be located close to the battery.
• Only insert the fuse when all installation work, including the connection of the loudspeakers has been
completed.
• Now connect the car Hi-fi receiver´s remote control connection to the amplifier´s REM control jack. A
cable with a cross-section of 0,75mm² is sufficient for connecting the amplifiers REMOTE Connection
and control device.
