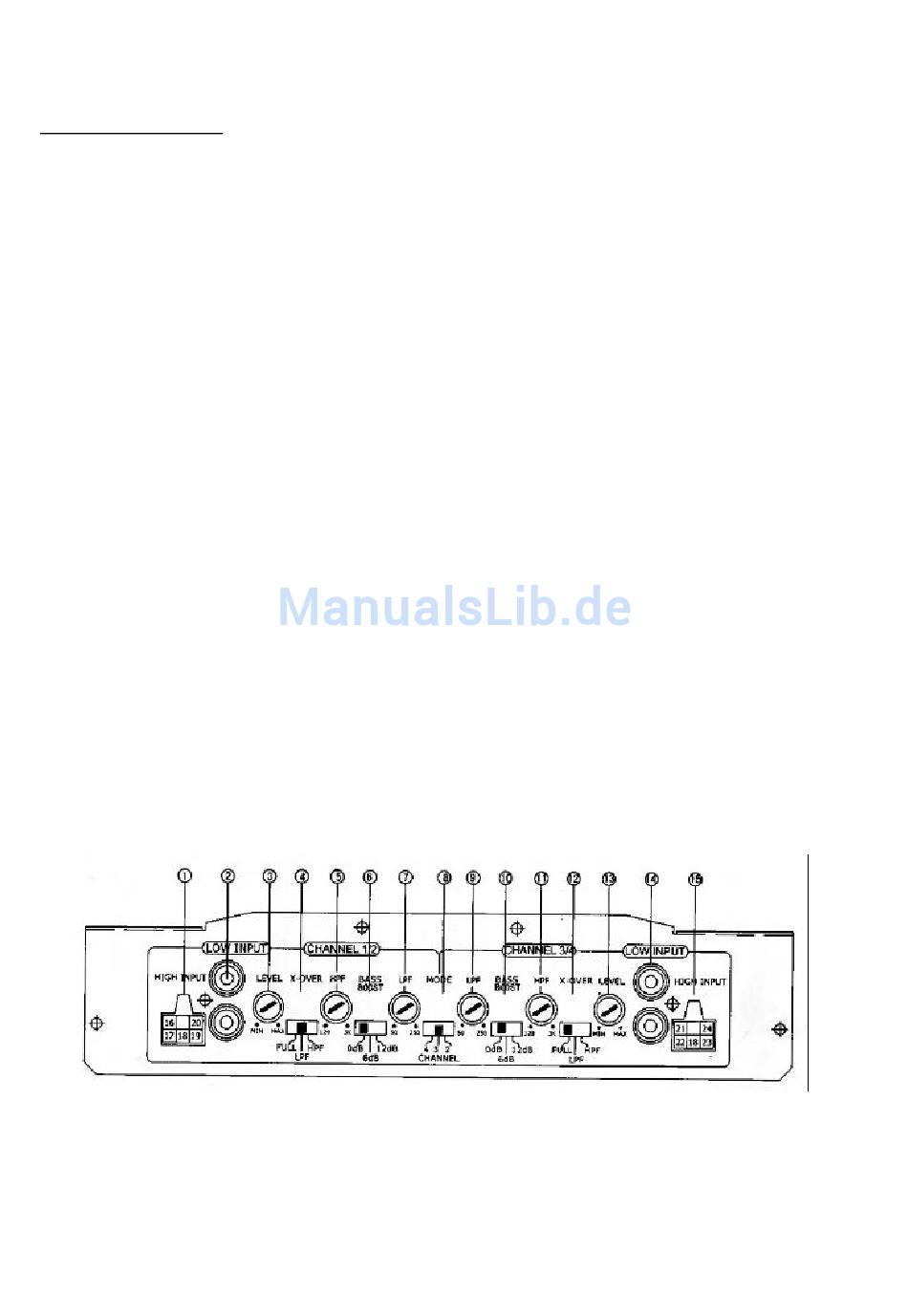

Connectors & Controls
1. Audioinput (high power)(1/2 CH)
2. Audioinput (low power)(1/2CH)
3. Low level input control (1/2CH)
4. Selector switch linear (FULL)/low-pass Filter (LPF)
high-pass filter (HPF) (1/2CH)
5. Cross-over frequency control for the high pass (1/2CH)
6. Bass-boost swith (1/2CH)
7. Cross-over frequency control for the low pass (1/2)
8. 2/3/4 CH Mode
9. Cross-over frequency control for the low pass (3/4CH)
10. Bass-boost switch (3/4CH)
11. Cross-over frequency control for the high pass (3/4CH)
12. Selector switch linear (FULL)/ low-pass filter
(LPF)/high-pass filter (HPF)(3/4CH)
13. Input Level control (3/4CH)
14. Low Level input (3/4CH)
15. High Level input (3/4CH)
16. To car stereo speaker rear R CH (-)
17. To car stereo Speaker rear L CH (-)
18. to car stereo GND
19. To car stereo speaker rear L CH (+)
20. To car stereo speaker rear R CH (+)
21. To car stereo speaker front R CH (+)
22. To car stereo speaker front L CH (+)
23. To car stereo speaker front L CH (-)
24. To car stereo speaker front R CH (-)
