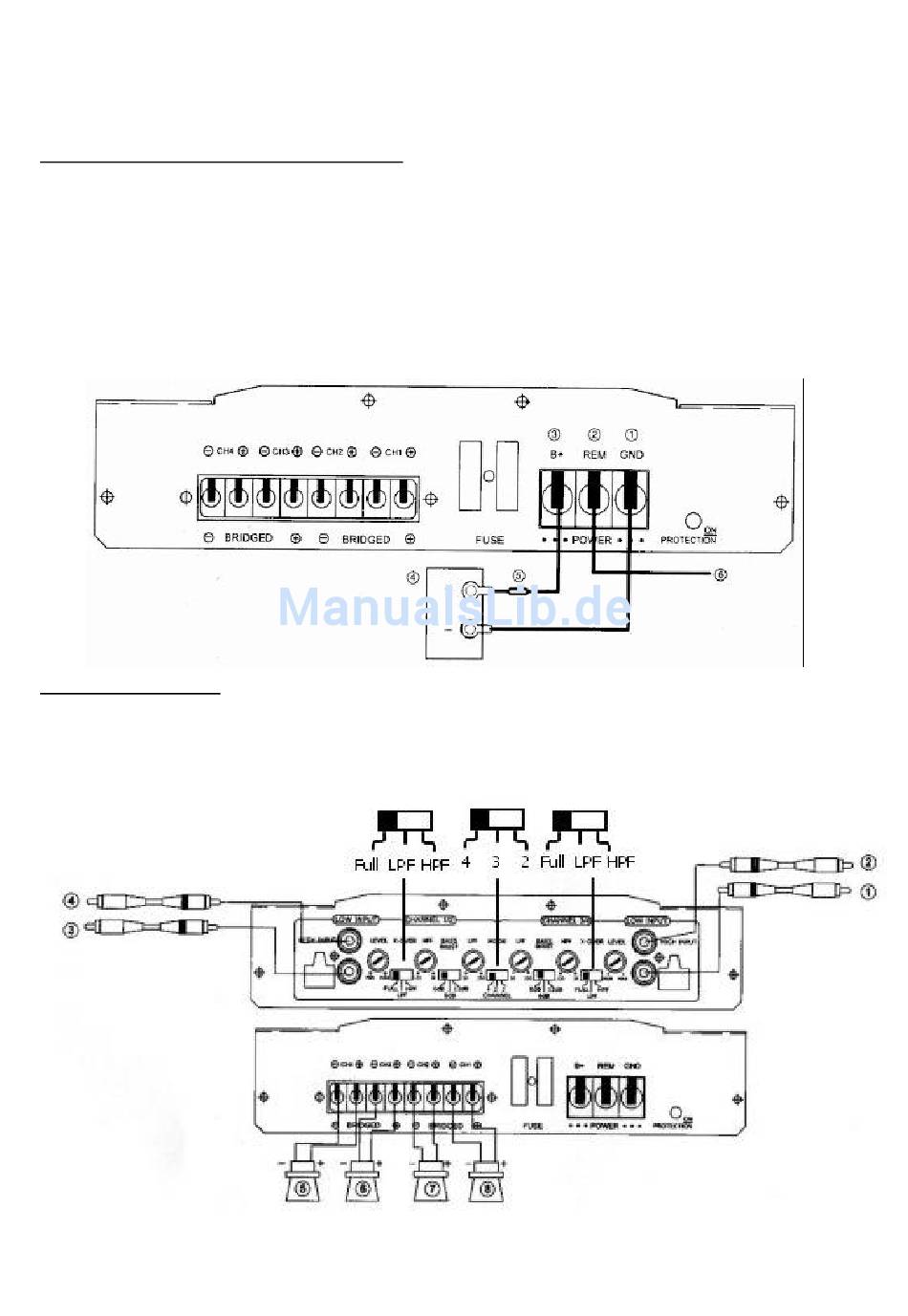

Power Supply/Remote Switch-On Connection
1. GND connecting terminal for earth, to negative battery terminal.
2. Remote terminal for remote swith-on
3. Connecting terminal for + 12 V battery voltage
4. Battery
5. Cable fuse
6. To your car radios automatic aerial connection, connect this cabels plus pole (+) to the ignition lock. An
on/off switck shold be inserted is this case. Make sure that this switched off if the amplifier is not used.
Figure 4 Channel Mode
1. To the car radio, front left output
3. To the car radio, rear left output
5. Front left Loudspeaker
7. Rear left Loudspeaker
© Firma WJG, Braunschweig. Nachdruck oder Vervielfältigung nur mit ausdrücklicher Genehmigung
2. To the car radio, front right output
4. To the car radio, rear right output
6. Front right Loudspeaker
8. Rear right Loudspeaker
751-121
