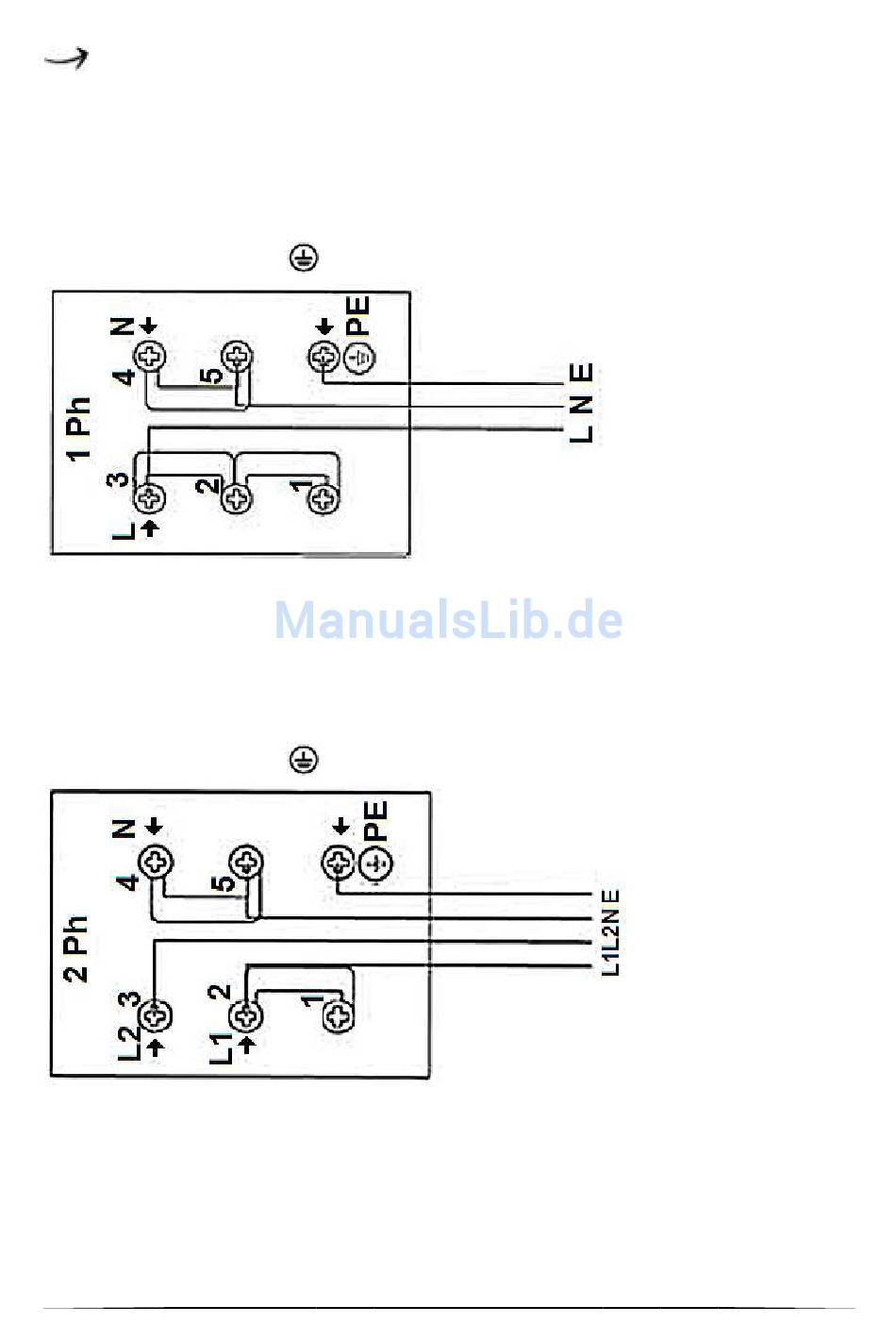

Connection diagram
1
For 220-240 VAC mains single-phase connection with operating neutral
conductor. Jumpers connecting the terminals 1-2-3. Jumpers to the terminals 4-5
for the operating neutral conductor.
Protective conductor on
H05VV-F 3G 6.0 mm
2
For 220-240 VAC mains two-phase connection with operating neutral conductor.
Jumpers connecting the terminals 1-2. Jumpers to the terminals 4-5 for the
operating neutral conductor.
Protective conductor on
H05VV-F 4G 6.0 mm
