5

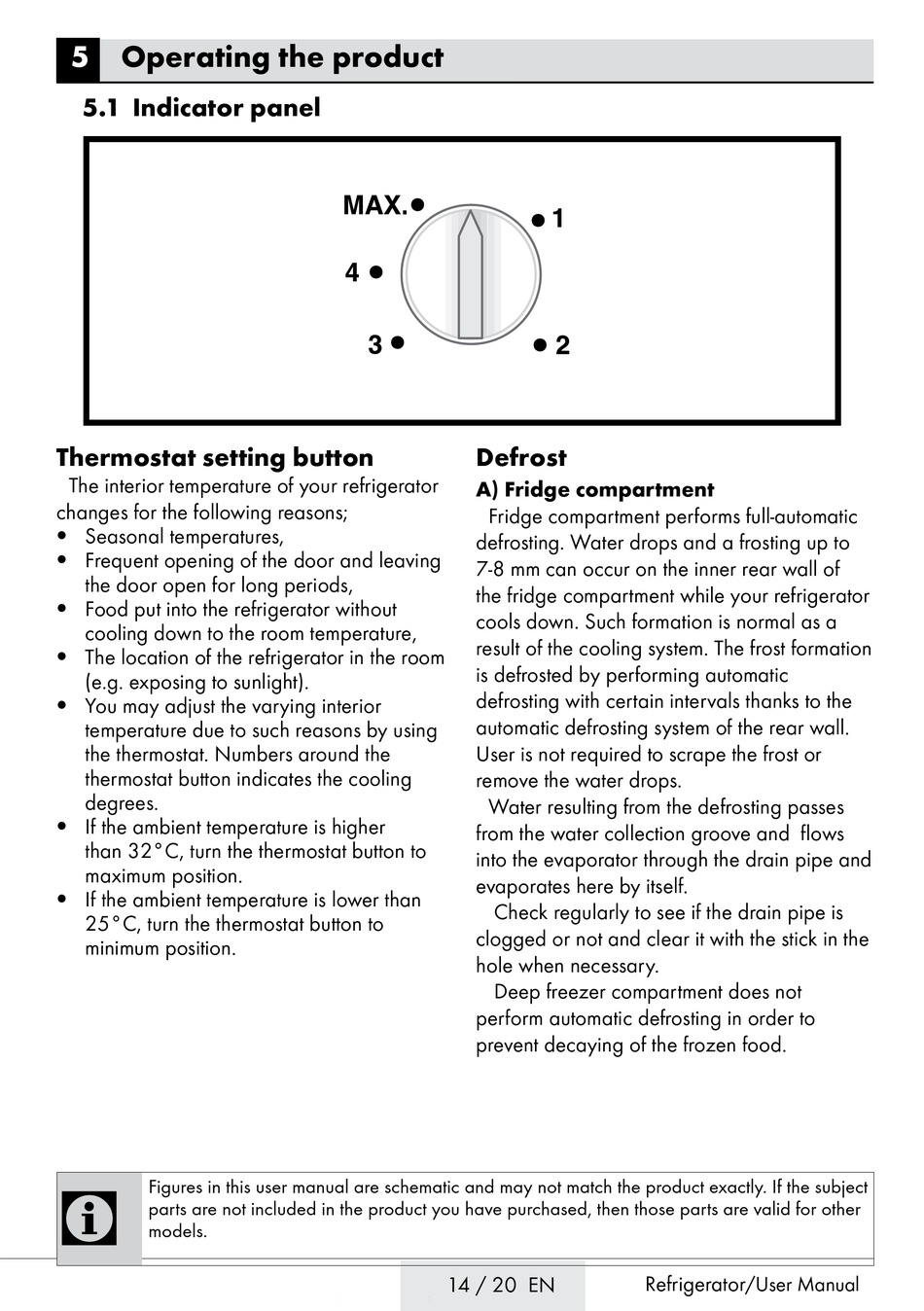

Operating the product

5.1 Indicator panel

Thermostat setting button

The interior temperature of your refrigerator
changes for the following reasons;
• Seasonal temperatures,
• Frequent opening of the door and leaving
the door open for long periods,
• Food put into the refrigerator without
cooling down to the room temperature,
• The location of the refrigerator in the room
(e.g. exposing to sunlight).
• You may adjust the varying interior
temperature due to such reasons by using
the thermostat. Numbers around the
thermostat button indicates the cooling
degrees.
• If the ambient temperature is higher
than 32°C, turn the thermostat button to
maximum position.
• If the ambient temperature is lower than
25°C, turn the thermostat button to
minimum position.
C
Figures in this user manual are schematic and may not match the product exactly. If the subject
parts are not included in the product you have purchased, then those parts are valid for other
models.
Defrost
A) Fridge compartment
Fridge compartment performs full-automatic
defrosting. Water drops and a frosting up to
7-8 mm can occur on the inner rear wall of
the fridge compartment while your refrigerator
cools down. Such formation is normal as a
result of the cooling system. The frost formation
is defrosted by performing automatic
defrosting with certain intervals thanks to the
automatic defrosting system of the rear wall.
User is not required to scrape the frost or
remove the water drops.
Water resulting from the defrosting passes
from the water collection groove and flows
into the evaporator through the drain pipe and
evaporates here by itself.
Check regularly to see if the drain pipe is
clogged or not and clear it with the stick in the
hole when necessary.
Deep freezer compartment does not
perform automatic defrosting in order to
prevent decaying of the frozen food.
14 / 20 EN
