12) FADE TIME SLIDER
Move to adjust fade time.
13) TAP SYNC
In AUTO CHASE, press it twice to define chasing speed.
14) SPEED SLIDER
Move to adjust chasing speed.
15) FULL ON KEY
When activated ,whole channel output will be maximum and disable BLACK OUT.
16) AUDIO LEVEL SLIDER
Move to adjust the sensitivity of audio.
17) BLACK OUT KEY
The key will force all DMX to "0".
18) STEP KEY
Press it once and the program go one step.
19) AUDIO KEY
Press it to get into audio control.
20) HOLD KEY
Press and hold it, whole output will be hold.
21) PARK A and B
In Chase-Scene mode, press Park B to select SINGLE CHASE or MIX CHASE. In DOUBLE PRESET
pressing PARK B is same as MASTER B at the maximum.In SINGLE PRESET, pressing PARK A is
same as MASTER A at the maximum.
22) REC EXIT
Exit record. When the LED is lighting, it is in KILL, press any one of all channel FLASH and all output is
zero except the one channel.
23) RECORD KEY
Press it to record the step of program.
24) PAGE KEY
Press it to select desired SCENE program in appropriate page.
25) MODE SELECT
By pressing the key you can select Chase-Scenes DOUBLE PRESET or SINGLE PRESET.
26) DARK KEY
Press it to pause whole output, including FULL ON and FLASH.
27) ALL REV
The key, when activated, will revers chasing direction of all program.
28) 0% OR 0-255 KEY
Press it to select 0% or 0-255 on DISPLAY.
29) BEAT REV
This key will reverse the Rec Speed program chase direction.
30) CHASE REV
This key will reverse the SCENE program chase direction.
31) REV ONE
Pess and hold the key, then press any one of PRESET B the SCENE program will chase in reversed
direction.

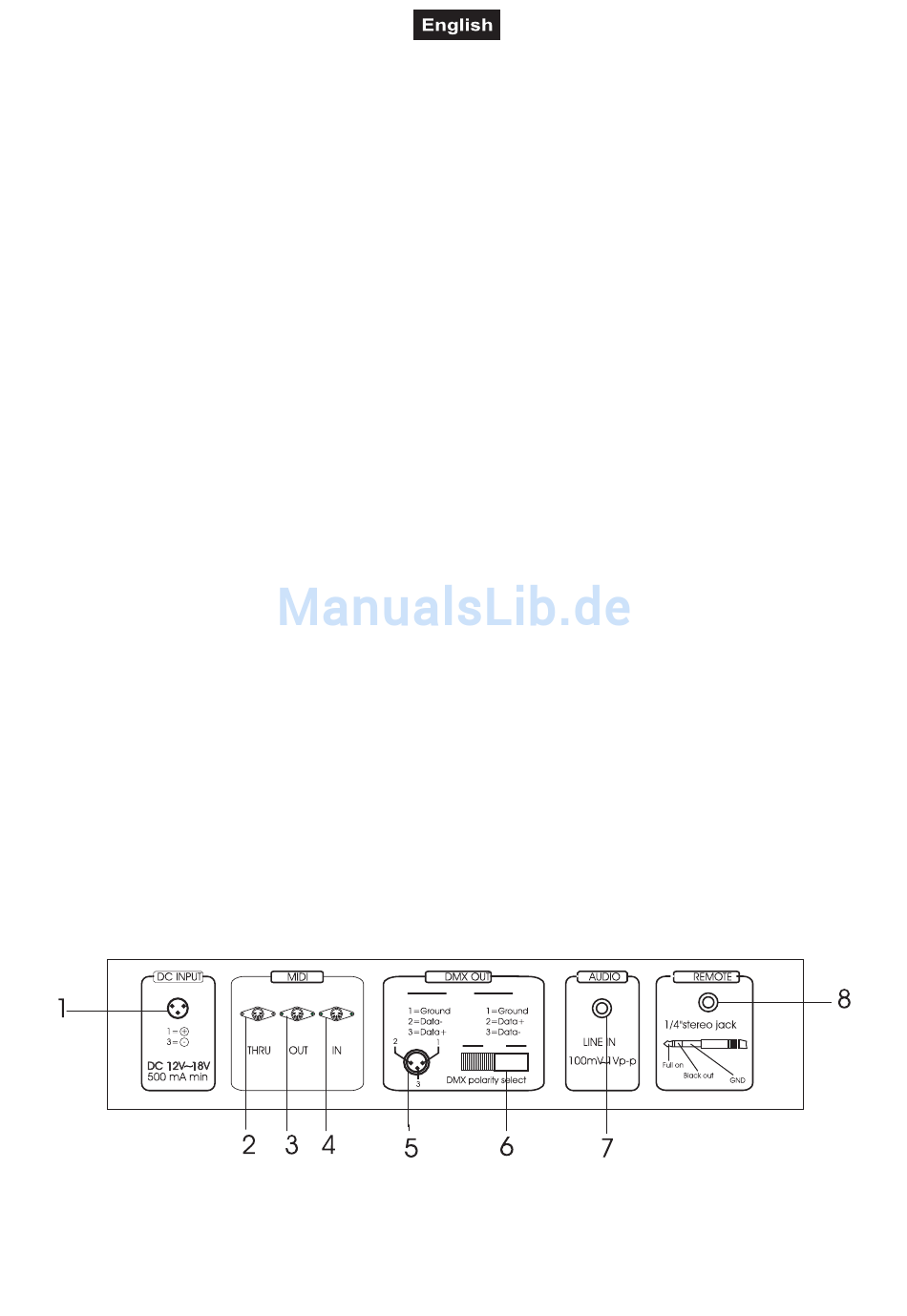

Rear panel:
1) DC IN socket
2) MIDI THROUGH socket
3) MIDI OUT socket
4) MIDI IN socket
