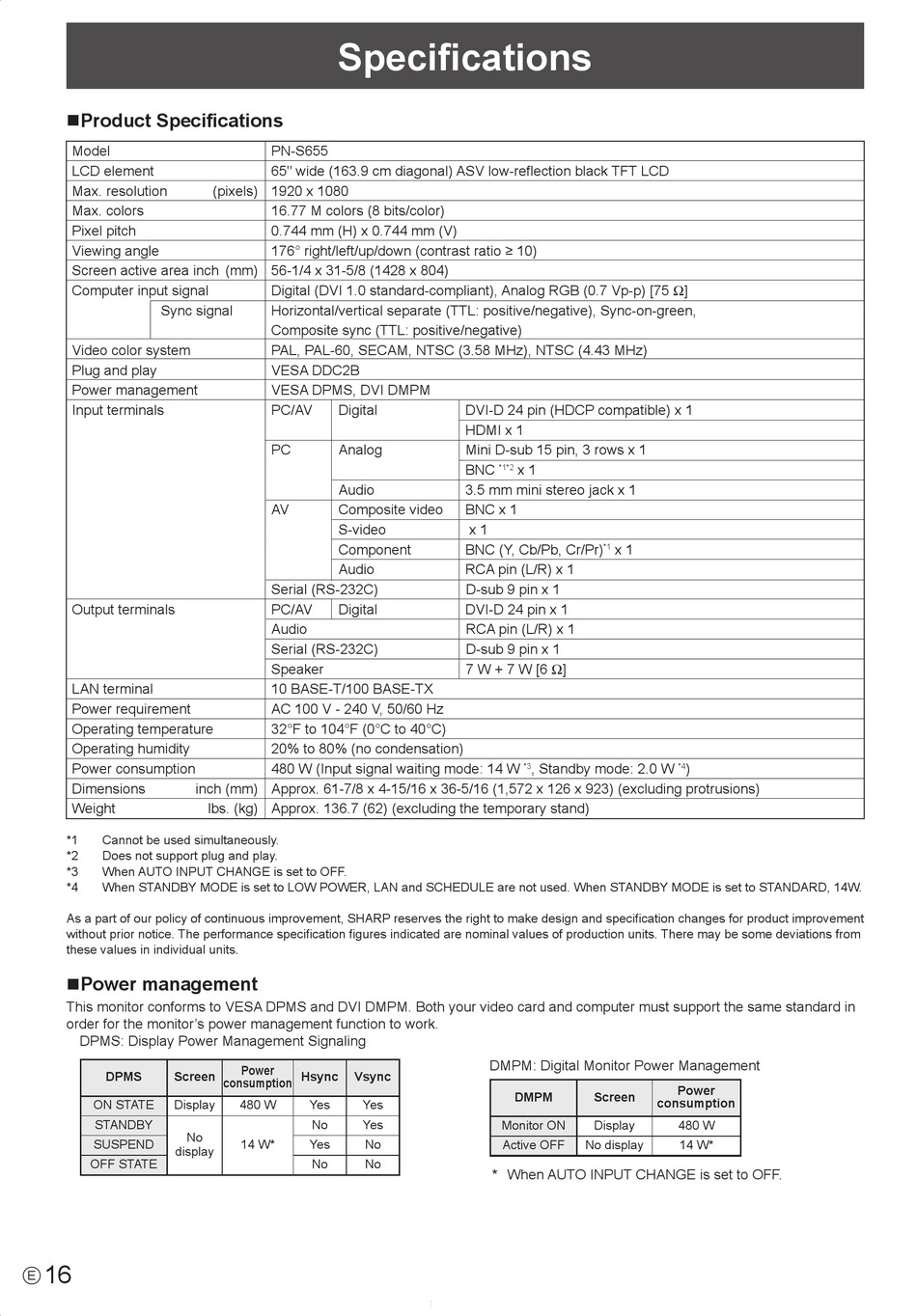

nProduct Specifications
Model
LCD element
Max. resolution
Max. colors
Pixel pitch
Viewing angle
Screen active area inch (mm) 56-1/4 x 31-5/8 (1428 x 804)
Computer input signal
Sync signal
Video color system
Plug and play
Power management
Input terminals
Output terminals
LAN terminal
Power requirement
Operating temperature
Operating humidity
Power consumption
Dimensions inch (mm) Approx. 61-7/8 x 4-15/16 x 36-5/16 (1,572 x 126 x 923) (excluding protrusions)
Weight
*1 Cannot be used simultaneously.
*2 Does not support plug and play.
*3 When AUTO INPUT CHANGE is set to OFF.
*4 When STANDBY MODE is set to LOW POWER, LAN and SCHEDULE are not used. When STANDBY MODE is set to STANDARD, 14W.
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement
without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from
these values in individual units.
nPower management
This monitor conforms to VESA DPMS and DVI DMPM. Both your video card and computer must support the same standard in
order for the monitor's power management function to work.
DPMS: Display Power Management Signaling
DPMS Screen
ON STATE Display
STANDBY
No
SUSPEND
display
OFF STATE
16
E

Specifications

PN-S655
65" wide (163.9 cm diagonal) ASV low-reflection black TFT LCD
(pixels) 1920 x 1080
16.77 M colors (8 bits/color)
0.744 mm (H) x 0.744 mm (V)
176° right/left/up/down (contrast ratio ≥ 10)
Digital (DVI 1.0 standard-compliant), Analog RGB (0.7 Vp-p) [75 Ω]
Horizontal/vertical separate (TTL: positive/negative), Sync-on-green,
Composite sync (TTL: positive/negative)
PAL, PAL-60, SECAM, NTSC (3.58 MHz), NTSC (4.43 MHz)
VESA DDC2B
VESA DPMS, DVI DMPM
PC/AV Digital
PC Analog
Audio
AV Composite video
S-video
Component
Audio
Serial (RS-232C)
PC/AV Digital
Audio
Serial (RS-232C)
Speaker
10 BASE-T/100 BASE-TX
AC 100 V - 240 V, 50/60 Hz
32°F to 104°F (0°C to 40°C)
20% to 80% (no condensation)
480 W (Input signal waiting mode: 14 W
lbs. (kg) Approx. 136.7 (62) (excluding the temporary stand)
Power
consumption Hsync Vsync
480 W Yes Yes
No Yes
14 W* Yes No
No No
DVI-D 24 pin (HDCP compatible) x 1
HDMI x 1
Mini D-sub 15 pin, 3 rows x 1
BNC
x 1
*1*2
3.5 mm mini stereo jack x 1
BNC x 1
x 1
BNC (Y, Cb/Pb, Cr/Pr) x 1
*1
RCA pin (L/R) x 1
D-sub 9 pin x 1
DVI-D 24 pin x 1
RCA pin (L/R) x 1
D-sub 9 pin x 1
7 W + 7 W [6 Ω]
, Standby mode: 2.0 W
*3
DMPM: Digital Monitor Power Management
DMPM Screen
Monitor ON Display
Active OFF No display
* When AUTO INPUT CHANGE is set to OFF.
)
*4
Power
consumption
480 W
14 W*
