G Operating instruction
A

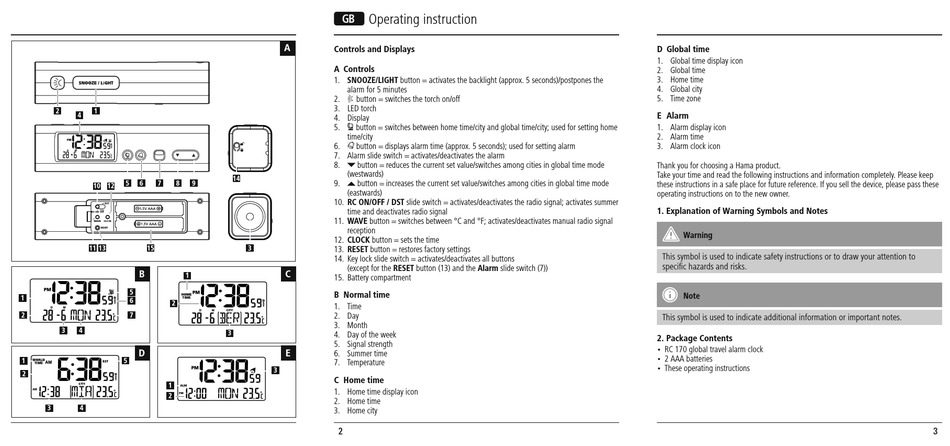

Controls and Displays
A Controls
1. SNOOZE/LIGHT button = activates the backlight (approx. 5 seconds)/postpones the
alarm for 5 minutes
2. button = switches the torch on/off
3. LED torch
4. Display
5. button = switches between home time/city and global time/city; used for setting home
time/city
6. button = displays alarm time (approx. 5 seconds); used for setting alarm
7. Alarm slide switch = activates/deactivates the alarm
8. button = reduces the current set value/switches among cities in global time mode
(westwards)
14
9. button = increases the current set value/switches among cities in global time mode
(eastwards)
10. RC ON/OFF / DST slide switch = activates/deactivates the radio signal; activates summer
time and deactivates radio signal
11. WAVE button = switches between °C and °F; activates/deactivates manual radio signal
reception
12. CLOCK button = sets the time
3
13. RESET button = restores factory settings
14. Key lock slide switch = activates/deactivates all buttons
(except for the RESET button (13) and the Alarm slide switch (7))
C
15. Battery compartment
B Normal time
1. Time
2. Day
3. Month
3
4. Day of the week
5. Signal strength
E
6. Summer time
7. Temperature
3
C Home time
1. Home time display icon
2. Home time
3. Home city
2
D Global time
1. Global time display icon
2. Global time
3. Home time
4. Global city
5. Time zone
E Alarm
1. Alarm display icon
2. Alarm time
3. Alarm clock icon
Thank you for choosing a Hama product.
Take your time and read the following instructions and information completely. Please keep
these instructions in a safe place for future reference. If you sell the device, please pass these
operating instructions on to the new owner.
1. Explanation of Warning Symbols and Notes
Warning
This symbol is used to indicate safety instructions or to draw your attention to
specific hazards and risks.
Note
This symbol is used to indicate additional information or important notes.
2. Package Contents
• RC 170 global travel alarm clock
• 2 AAA batteries
• These operating instructions
