Installation
3.1
Installation conditions
Working temperature range:
0 to 50 °C (32 to 122 °F), max. 75% rel.
humidity without condensation.
"
Caution!
• To avoid heat accumulation, please always ensure that the device is sufficiently cooled.
• Observe distance from strong magnetic fields.
• Environment at front in accordance with device ingress protection IP 54.
3.2
Installation instructions
3.2.1 Mounting tool
To install the control panel, all you need is a screwdriver.
86.5 mm
3.4"

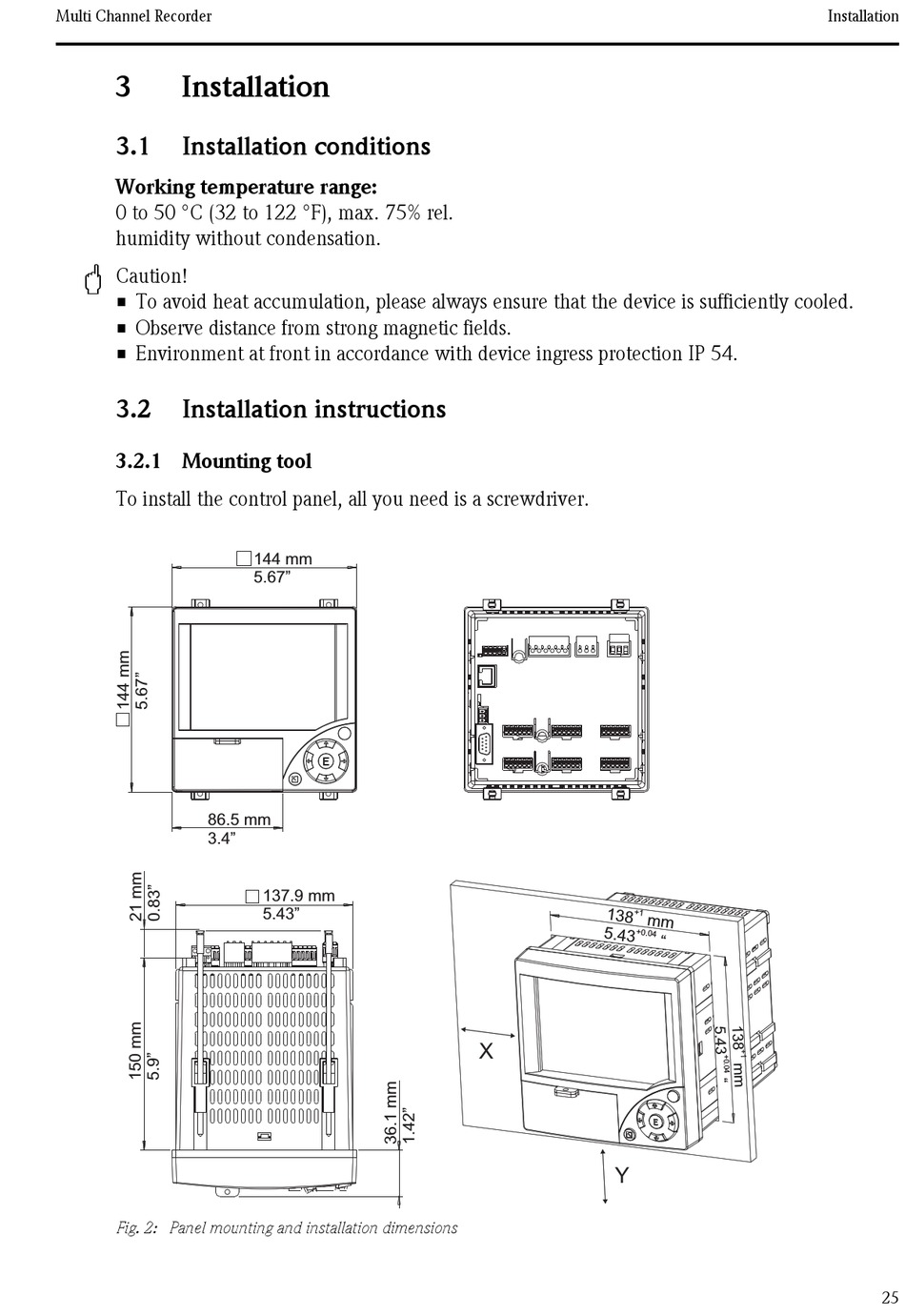

Fig. 2: Panel mounting and installation dimensions
144 mm
5.67"
137.9 mm
5.43"
X
Y
