Attach the Mounting Plate to the LitePro
1 Set the LitePro on a table with the bottom side
up. Align the holes in the mounting plate
with the holes in the projector.
2 Insert the 2 screws into the 2 quick release
sleeves (Figure 4).
3 Attach the screws and sleeves to the holes in
the front of the projector as shown in Figure 4.
Be careful not to over-tighten the bolts.
4 Align the keyholes in the mounting bracket
with the screws in the projector. Slide the
mounting bracket until the quick release
sleeves are at the top of the keyhole slot.
5 Attach the 4mm knurled knob to the projector
in the location shown in Figure 4.

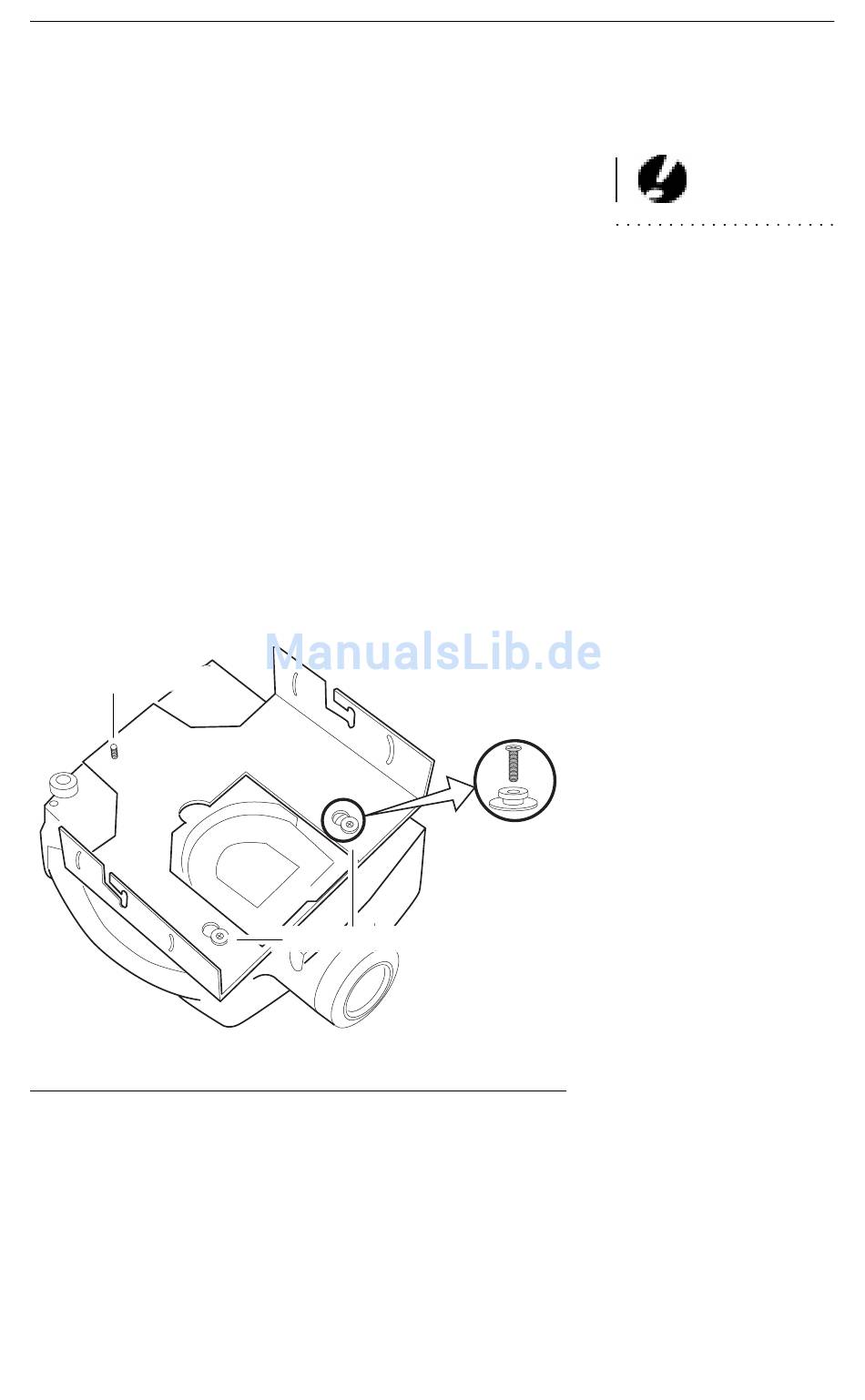

knurled knob goes here
quick release bolts
Attach the mounting plate to the projector
CAUTION: Use only the
hardware that is provided
with the LitePro 700
Series Ceiling Mount.
Using different hardware
may damage your projec-
tor.
F 4
IGURE
7
