P l a c i n g t h e P r o j e c t o r
2
The distance from the projector lens to the screen
determines the size of the projected image. Refer
to the Appendix of the LitePro User's Guide for
charts and tables showing these measurements.

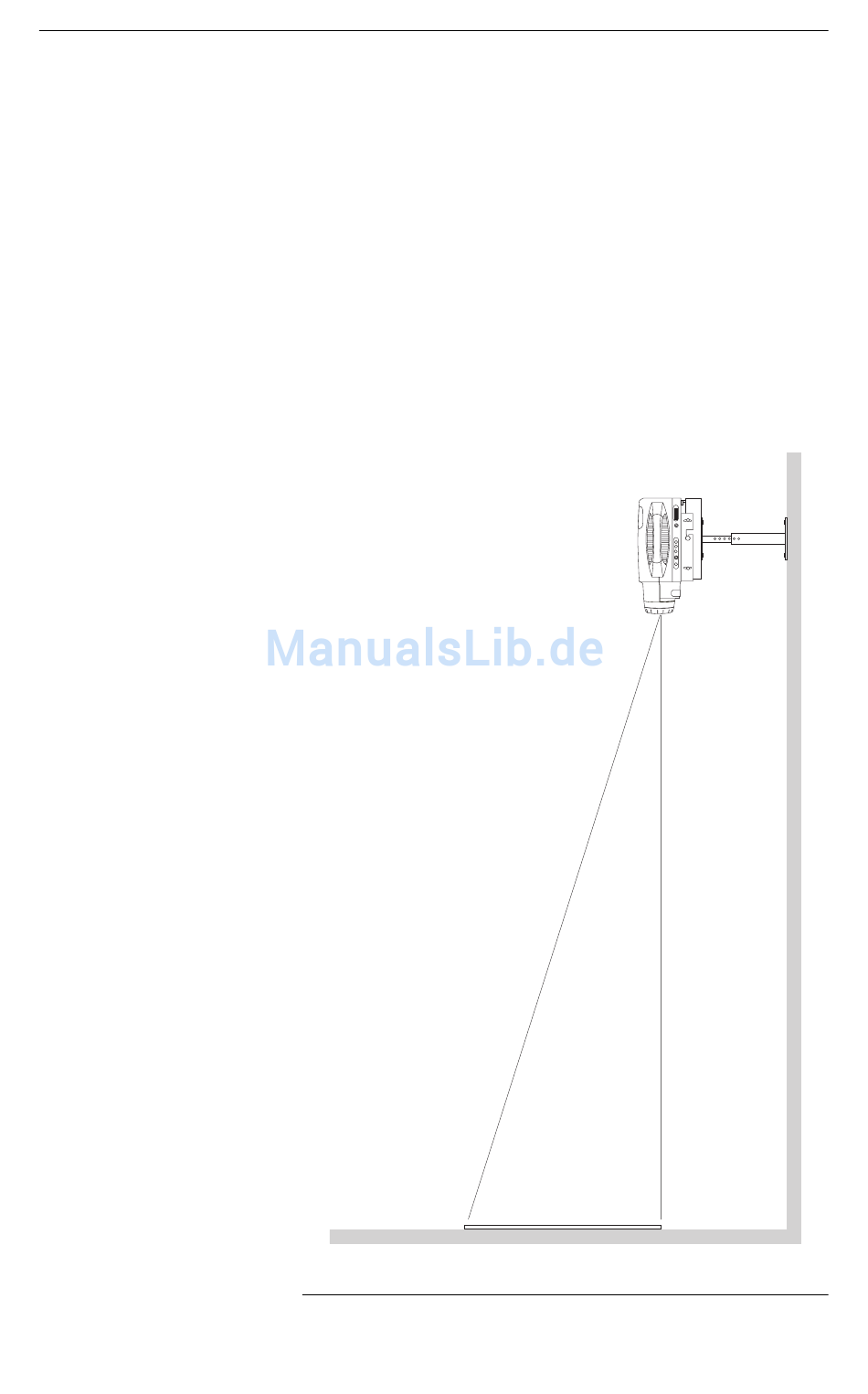

Figure 1 shows an example of a proper LP700
LiteMount installation. The room in this example
has a high ceiling, so the projector is mounted on
the LiteMount Pipe Tubing Extension. Note that
the projector 's lens is at the same height as the
top of the projection screen.
F 1
IGURE
Ceiling-Mounted LP700 Series Projector
