Behringer EPS500MP3 Handbuch Seite 6

10
EUROPORT EPS500MP3

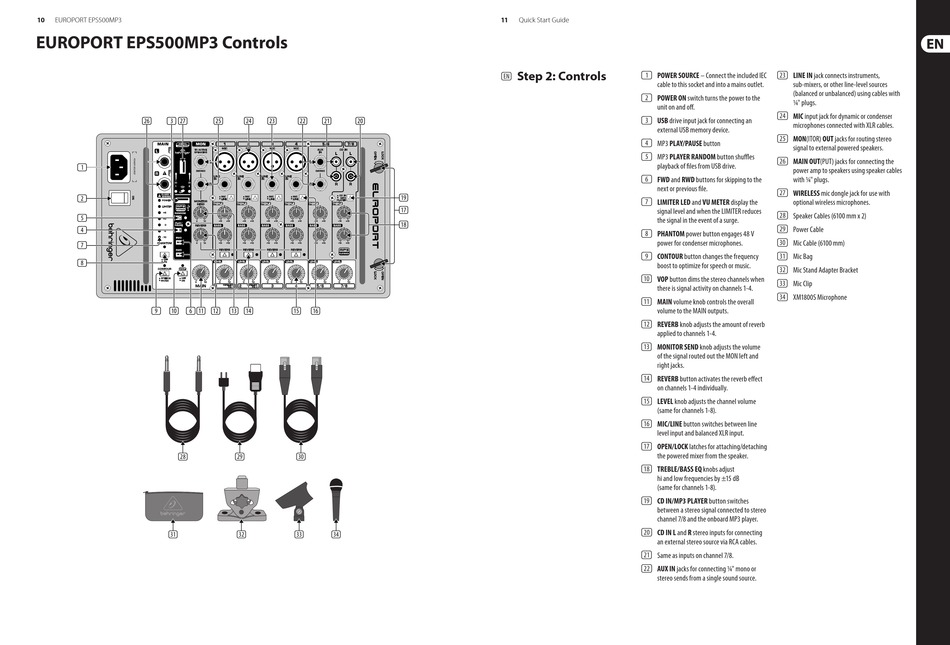

EUROPORT EPS500MP3 Controls
(26) (3) (27) (25)
(1)
(2)
(5)
(4)
(7)
(8)
(9) (10) (6) (11) (12)
(28)
(31)
(24) (23) (22) (21) (20)
(19)
(17)
(18)
(13) (14) (15) (16)
(29) (30)
(32) (33) (34)
11
Quick Start Guide
Step 2: Controls
(1) POWER SOURCE – Connect the included IEC
(EN)
cable to this socket and into a mains outlet.
(2) POWER ON switch turns the power to the
unit on and off.
USB drive input jack for connecting an
(3)
external USB memory device.
(4) MP3 PLAY/PAUSE button
MP3 PLAYER RANDOM button shuffles
(5)
playback of files from USB drive.
FWD and RWD buttons for skipping to the
(6)
next or previous file.
(7) LIMITER LED and VU METER display the
signal level and when the LIMITER reduces
the signal in the event of a surge.
PHANTOM power button engages 48 V
(8)
power for condenser microphones.
(9) CONTOUR button changes the frequency
boost to optimize for speech or music.
(10) VOP button dims the stereo channels when
there is signal activity on channels 1-4.
MAIN volume knob controls the overall
(11)
volume to the MAIN outputs.
(12) REVERB knob adjusts the amount of reverb
applied to channels 1-4.
MONITOR SEND knob adjusts the volume
(13)
of the signal routed out the MON left and
right jacks.
REVERB button activates the reverb effect
(14)
on channels 1-4 individually.
(15) LEVEL knob adjusts the channel volume
(same for channels 1-8).
MIC/LINE button switches between line
(16)
level input and balanced XLR input.
(17) OPEN/LOCK latches for attaching/detaching
the powered mixer from the speaker.
(18) TREBLE/BASS EQ knobs adjust
hi and low frequencies by ±15 dB
(same for channels 1-8).
CD IN/MP3 PLAYER button switches
(19)
between a stereo signal connected to stereo
channel 7/8 and the onboard MP3 player.
(20) CD IN L and R stereo inputs for connecting
an external stereo source via RCA cables.
(21) Same as inputs on channel 7/8.
AUX IN jacks for connecting ¼" mono or
(22)
stereo sends from a single sound source.
(23) LINE IN jack connects instruments,
sub-mixers, or other line-level sources
(balanced or unbalanced) using cables with
¼" plugs.
(24) MIC input jack for dynamic or condenser
microphones connected with XLR cables.
MON(ITOR) OUT jacks for routing stereo
(25)
signal to external powered speakers.
(26) MAIN OUT(PUT) jacks for connecting the
power amp to speakers using speaker cables
with ¼" plugs.
(27) WIRELESS mic dongle jack for use with
optional wireless microphones.
Speaker Cables (6100 mm x 2)
(28)
(29) Power Cable
(30) Mic Cable (6100 mm)
(31) Mic Bag
(32) Mic Stand Adapter Bracket
Mic Clip
(33)
(34) XM1800S Microphone
