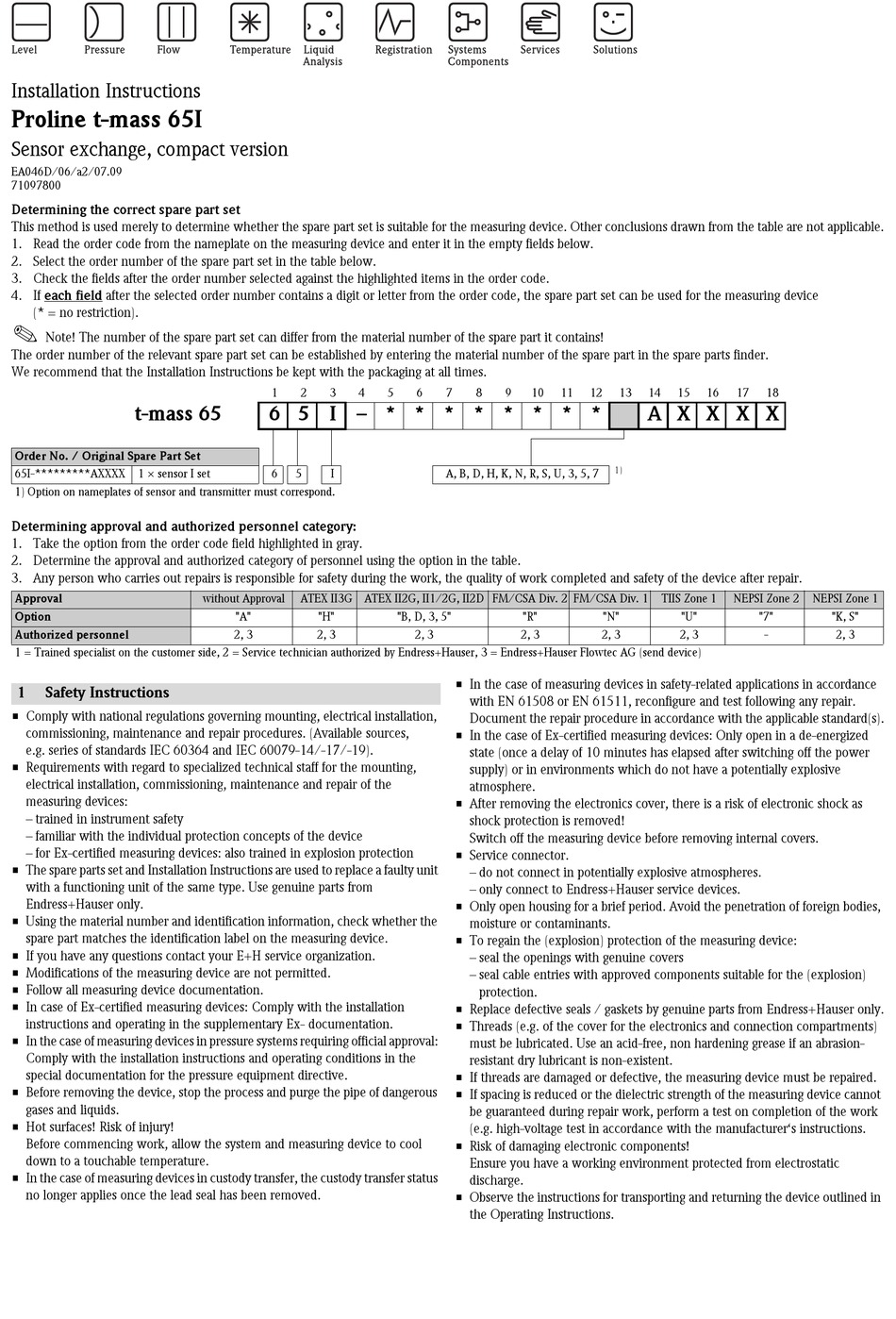

Installation Instructions
Proline t-mass 65I
Sensor exchange, compact version
EA046D/06/a2/07.09
71097800
Determining the correct spare part set
This method is used merely to determine whether the spare part set is suitable for the measuring device. Other conclusions drawn from the table are not applicable.
1. Read the order code from the nameplate on the measuring device and enter it in the empty fields below.
2. Select the order number of the spare part set in the table below.
3. Check the fields after the order number selected against the highlighted items in the order code.
4. If each field after the selected order number contains a digit or letter from the order code, the spare part set can be used for the measuring device
(* = no restriction).
!
Note! The number of the spare part set can differ from the material number of the spare part it contains!
The order number of the relevant spare part set can be established by entering the material number of the spare part in the spare parts finder.
We recommend that the Installation Instructions be kept with the packaging at all times.
t-mass 65
Order No. / Original Spare Part Set
65I-*********AXXXX 1 × sensor I set
1) Option on nameplates of sensor and transmitter must correspond.
Determining approval and authorized personnel category:
1. Take the option from the order code field highlighted in gray.
2. Determine the approval and authorized category of personnel using the option in the table.
3. Any person who carries out repairs is responsible for safety during the work, the quality of work completed and safety of the device after repair.
Approval
Option
Authorized personnel
1 = Trained specialist on the customer side, 2 = Service technician authorized by Endress+Hauser, 3 = Endress+Hauser Flowtec AG (send device)
1 Safety Instructions
• Comply with national regulations governing mounting, electrical installation,
commissioning, maintenance and repair procedures. (Available sources,
e.g. series of standards IEC 60364 and IEC 60079-14/-17/-19).
• Requirements with regard to specialized technical staff for the mounting,
electrical installation, commissioning, maintenance and repair of the
measuring devices:
– trained in instrument safety
– familiar with the individual protection concepts of the device
– for Ex-certified measuring devices: also trained in explosion protection
• The spare parts set and Installation Instructions are used to replace a faulty unit
with a functioning unit of the same type. Use genuine parts from
Endress+Hauser only.
• Using the material number and identification information, check whether the
spare part matches the identification label on the measuring device.
• If you have any questions contact your E+H service organization.
• Modifications of the measuring device are not permitted.
• Follow all measuring device documentation.
• In case of Ex-certified measuring devices: Comply with the installation
instructions and operating in the supplementary Ex- documentation.
• In the case of measuring devices in pressure systems requiring official approval:
Comply with the installation instructions and operating conditions in the
special documentation for the pressure equipment directive.
• Before removing the device, stop the process and purge the pipe of dangerous
gases and liquids.
• Hot surfaces! Risk of injury!
Before commencing work, allow the system and measuring device to cool
down to a touchable temperature.
• In the case of measuring devices in custody transfer, the custody transfer status
no longer applies once the lead seal has been removed.
1 2 3 4
6 5 I – * * * * * * * *
6 5 I
without Approval ATEX II3G ATEX II2G, II1/2G, II2D FM/CSA Div. 2 FM/CSA Div. 1
"A" "H"
2, 3 2, 3
5 6 7 8 9 10
A, B, D, H, K, N, R, S, U, 3, 5, 7
"B, D, 3, 5" "R"
2, 3 2, 3
• In the case of measuring devices in safety-related applications in accordance
with EN 61508 or EN 61511, reconfigure and test following any repair.
Document the repair procedure in accordance with the applicable standard(s).
• In the case of Ex-certified measuring devices: Only open in a de-energized
state (once a delay of 10 minutes has elapsed after switching off the power
supply) or in environments which do not have a potentially explosive
atmosphere.
• After removing the electronics cover, there is a risk of electronic shock as
shock protection is removed!
Switch off the measuring device before removing internal covers.
• Service connector.
– do not connect in potentially explosive atmospheres.
– only connect to Endress+Hauser service devices.
• Only open housing for a brief period. Avoid the penetration of foreign bodies,
moisture or contaminants.
• To regain the (explosion) protection of the measuring device:
– seal the openings with genuine covers
– seal cable entries with approved components suitable for the (explosion)
protection.
• Replace defective seals / gaskets by genuine parts from Endress+Hauser only.
• Threads (e.g. of the cover for the electronics and connection compartments)
must be lubricated. Use an acid-free, non hardening grease if an abrasion-
resistant dry lubricant is non-existent.
• If threads are damaged or defective, the measuring device must be repaired.
• If spacing is reduced or the dielectric strength of the measuring device cannot
be guaranteed during repair work, perform a test on completion of the work
(e.g. high-voltage test in accordance with the manufacturer's instructions.
• Risk of damaging electronic components!
Ensure you have a working environment protected from electrostatic
discharge.
• Observe the instructions for transporting and returning the device outlined in
the Operating Instructions.
11 12 13 14 15 16
A X X X X
1)
TIIS Zone 1
"N" "U"
2, 3 2, 3
17 18
NEPSI Zone 2 NEPSI Zone 1
"7" "K, S"
- 2, 3
