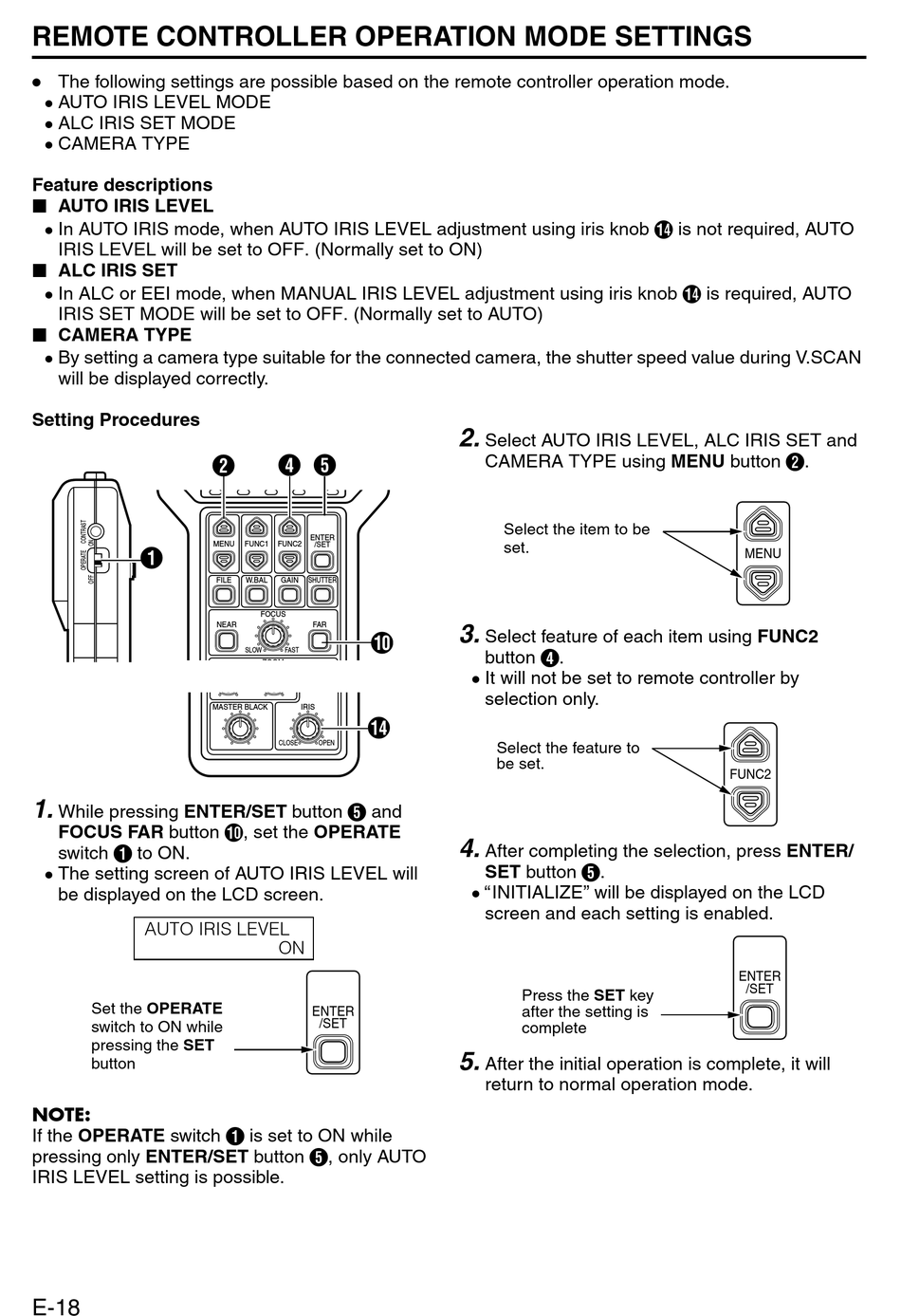

REMOTE CONTROLLER OPERATION MODE SETTINGS

●
The following settings are possible based on the remote controller operation mode.
● AUTO IRIS LEVEL MODE
ALC IRIS SET MODE
●
● CAMERA TYPE
Feature descriptions
o AUTO IRIS LEVEL
In AUTO IRIS mode, when AUTO IRIS LEVEL adjustment using iris knob N is not required, AUTO
●
IRIS LEVEL will be set to OFF. (Normally set to ON)
o ALC IRIS SET
In ALC or EEI mode, when MANUAL IRIS LEVEL adjustment using iris knob N is required, AUTO
●
IRIS SET MODE will be set to OFF. (Normally set to AUTO)
o CAMERA TYPE
● By setting a camera type suitable for the connected camera, the shutter speed value during V.SCAN
will be displayed correctly.
Setting Procedures
A
1.
While pressing ENTER/SET button E and
FOCUS FAR button J, set the OPERATE
switch A to ON.
● The setting screen of AUTO IRIS LEVEL will
be displayed on the LCD screen.
AUTO IRIS LEVEL
Set the OPERATE
switch to ON while
pressing the SET
button
NOTE:
If the OPERATE switch A is set to ON while
pressing only ENTER/SET button E, only AUTO
IRIS LEVEL setting is possible.
E-18
B D E
ENTER
MENU FUNC1 FUNC2 /SET
FILE W.BAL GAIN SHUTTER
FOCUS
NEAR FAR
J
SLOW FAST
ZOOM
MASTER BLACK IRIS
N
CLOSE OPEN
ON
ENTER
/SET
2.
Select AUTO IRIS LEVEL, ALC IRIS SET and
CAMERA TYPE using MENU button B.
Select the item to be
set.
3.
Select feature of each item using FUNC2
button D.
● It will not be set to remote controller by
selection only.
Select the feature to
be set.
4.
After completing the selection, press ENTER/
SET button E.
● AINITIALIZEB will be displayed on the LCD
screen and each setting is enabled.
Press the SET key
after the setting is
complete
5.
After the initial operation is complete, it will
return to normal operation mode.
MENU
FUNC2
ENTER
/SET
