The railcar also need not be opened to lubri-
cate the gear parts. It is perfectly sufficient to
swivel the motor bogie to one side as shown
in ( Fig. 7 ). Then you can look between bogie
and running gear and see the worm and worm
wheel (O) and use a pipette to oil all the gear parts ( Z ). Then run the railcar up and down
a little. This distributes the oil uniformly.
Use commercially available oils and use a fine cannula or a needle. Caution: do not use
cooking oil or hand cream.
Opening the vehicles
The vehicles can be opened, for example for the purposes of inserting passengers, in the
following manner:

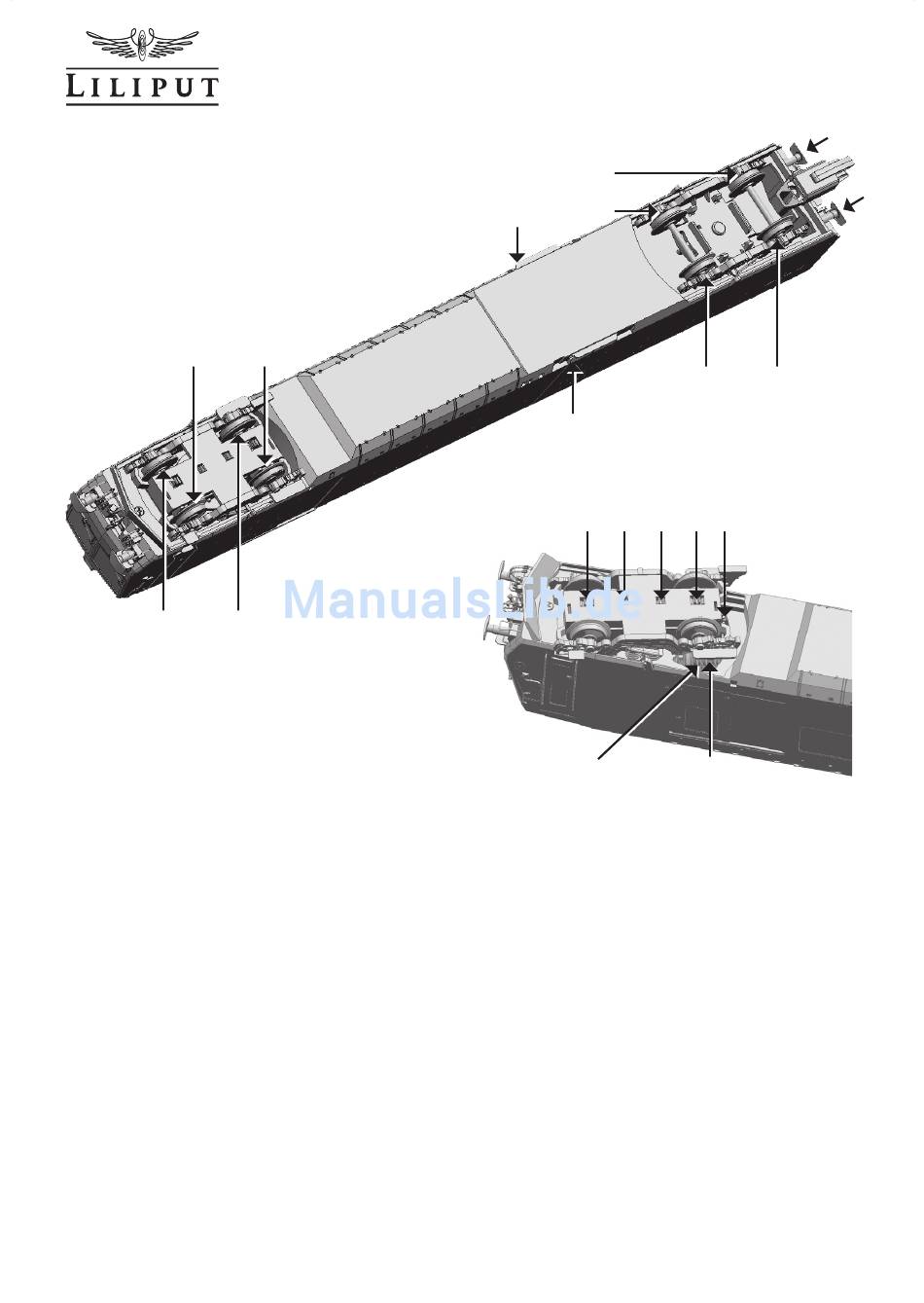

Please place both thumb nails around the rear door area ( T ) as shown in ( Fig. 6 ) to pull
the car body slightly apart and at the same time apply slight pressure with the index finger
around the rear buffer plates ( P ) to remove the car body completely from the running
gear.
