Trotec TTK 96 E Bedienungsanleitung Seite 14

TTK 127 E
3
3.2
3.1
2.3
2.4
1
2

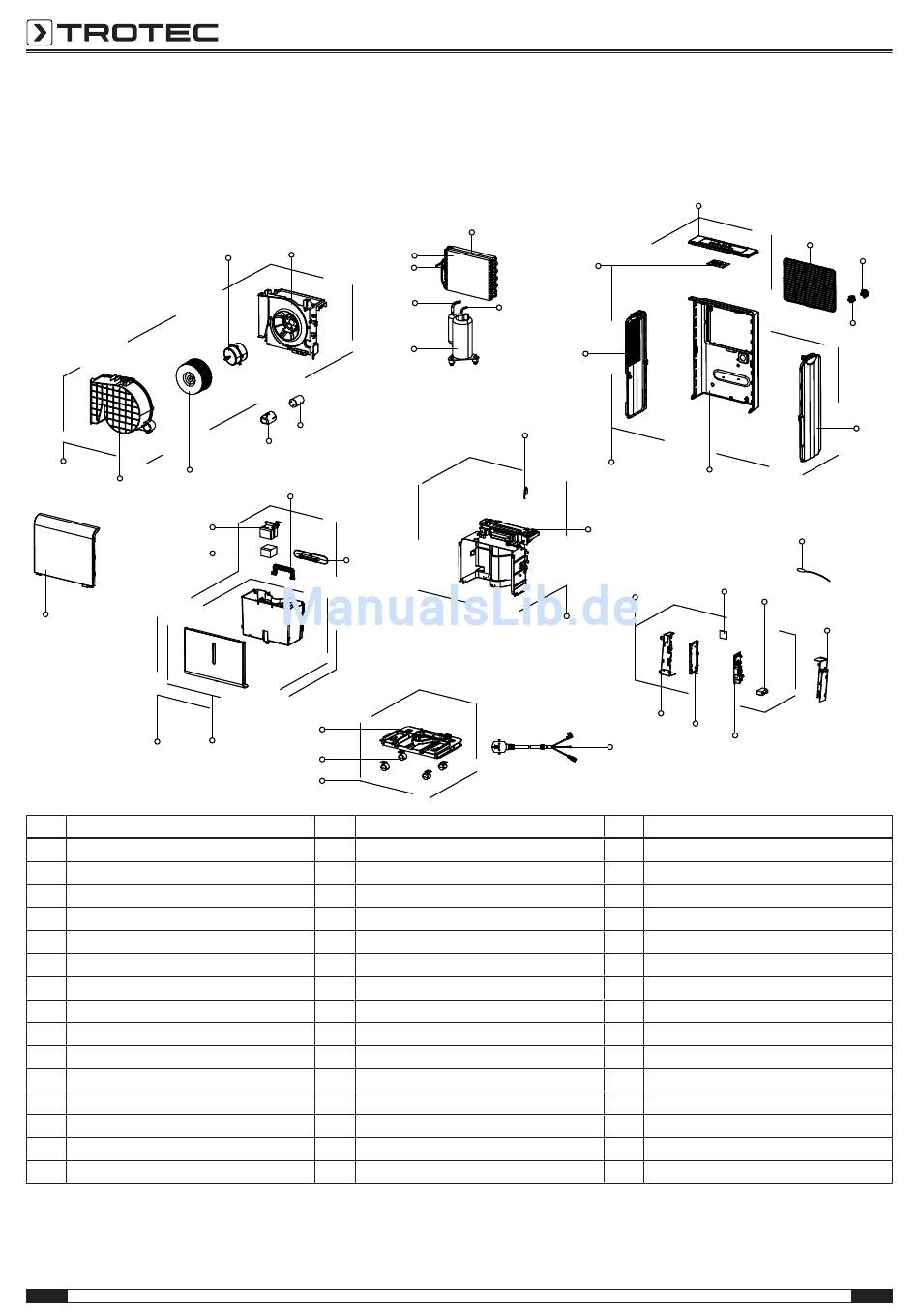

Nr. Ersatzteil
1 Front Panel
2 Water Tank Assembly
2.1 Water Tank Subassembly
2.2 Handle for Tank
2.3 Floater
2.4 Buoy foam
2.5 Winding Eyebolt
3 Scroll assembly
3.1 VoluteScroll
3.2 Centrifugal Fan
3.3 Single-phase Asynchronous Motor
3.4 Fan Motor Holder Subassembly
4 Capacitor Cap
5 Capacitor
6 Fixed speed rotary compressor
13
3.4
3.3
5
4
2.2
2.5
20.1
2.1
20.2
20
Nr. Ersatzteil
7 Parts of compressor return pipe
8 Capillary Assembly
9 Evaporator assembly Gas valve assembly
10 Condenser Assembly
11 Parts of compressor exhaust pipe
12 Rear Panel assembly
12.1 Rear panel
12.2 Right Side Plate
12.3 Left Side Floor
12.4 Top cover
12.5 Structure Subassembly of Display Box
13
14 Water Drain Connector
15 Filter
16 Temperature Sensor
Bedienungsanleitung – Luftentfeuchter TTK 96 E / TTK 127 E
Hinweis!
Die Positionsnummern der Ersatzteile unterscheiden sich von den in
der Bedienungsanleitung verwendeten Positionsnummern der
Bauteile.
10
9
12.5
8
7
11
6
12.3
17.2
17
12.4
12
12.1
17.1
18.5
18
18.4
18.1
18.2
21
18.3
Nr. Ersatzteil
17 Parts of middle clapboard
17.1 Parts of middle clapboard
17.2 Micro Switch
18 E-Parts Box assembly
18.1 Electrical Control Box
18.2 Mounting rack of main control panel
18.3 Main Control Board Subassembly(Sticker)
18.4 Capacitor
18.5 Humidity Sensor Board Subassembly
19 Electrical Control Box Cover Subassembly
20 Chassis Assembly
20.1 Chassis Subassembly
20.2 Universal wheel
21 Power Supply Cable Subassembly
15
14
13
12.2
16
19
DE
