Mode 1:
Output A is active when the left-hand foot-switch is pressed; it is deactivated if the
foot-switch is pressed again. Output B can be switched ON and OFF using the
center foot-switch, and Output C using the right-hand foot-switch.
The Lehle Dual SGoS operates in this mode in default condition.
Mode 2 (programmable mode):
In this mode, any combination of Outputs A, B and C can be programmed for any
foot-switch (see Item 8: Programming buttons). All outputs are switched off when
the same foot-switch is pressed a second time.
Mode 3 (programmable mode):
This is the mode needed to network several Lehle SGoS Switchers with one
another.
As far as programming is concerned, this mode functions like Mode 2, but without
going off after the second switching.
The Lehle 1at3 SGoS transmits a MIDI program-change command via MIDI
socket 6 as soon as a foot-switch is pressed in this mode.
10 The base of the Lehle 1at3 SGoS is designed for trouble-free fixing. The four
screws holding the cover in place must firstly be opened and the base of the unit
can then be screwed to a base-plate using the two screws, washers and spacers
supplied.

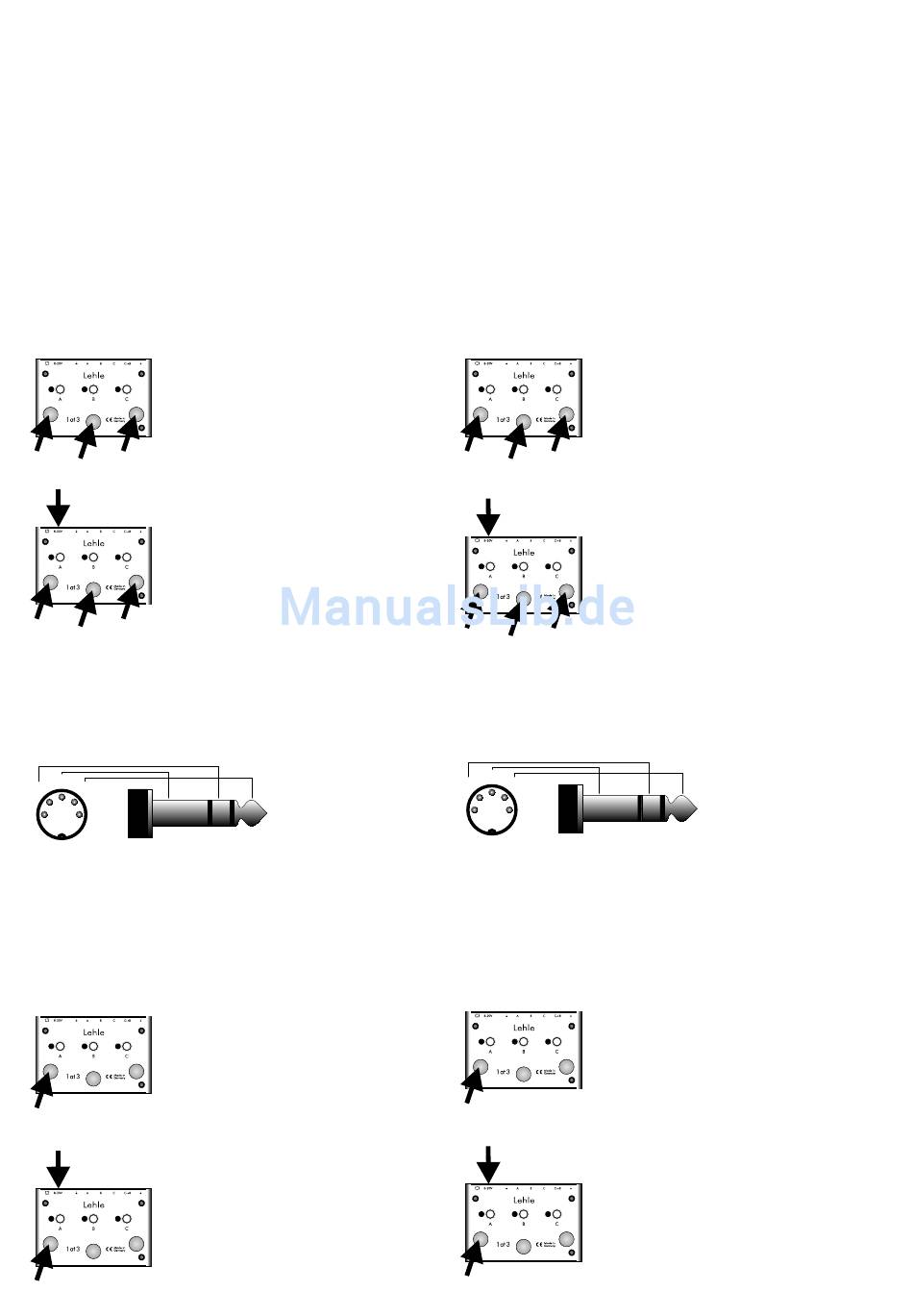

Restoring default state
All three foot-switches must be pressed before the power-supply connector (8) is
inserted.
The power-supply connector should be inserted while the foot-switches are kept
pressed.
The LEDs will all flash simultaneously for around 7 sec. and then go off
automatically. The foot-switches can then be released. The Lehle 1at3 SGoS is
now in default state.
The MIDI capabilities of the Lehle 1at3 SGoS
The Lehle 1at3 SGoS is able to receive MIDI-programchange commands in
every operation mode.
A lead (adapter) with the following pin assignments must be used to connect other
MIDI-capable devices:
2
5
4
Corresponding leads of various convenient lengths can be ordered from
www.lehle.com.
The Lehle 1at3 SGoS transmits on MIDI Channel 15 in Mode 3 (permanent
setting).
Selecting the MIDI reception channel
In its default state, the Lehle 1at3 SGoS receives on all MIDI channels
simultaneously (= Omnimode). It is also possible to select a specific channel on
which the Lehle 1at3 SGoS is to receive.
The left-hand foot-switch must be pressed before the power-supply connector (5) is
inserted.
The power-supply connector should be inserted while the left-hand foot-switch
remains pressed.
Betriebsmodus 1:
Wird der linke Fußtaster betätigt, ist Ausgang A aktiv, wird der Fußtaster noch einmal betätigt,
ist er deaktiviert. Ausgang B wird über den mittleren Fußtaster und C über den rechten
Fußtaster an- bzw. abgeschaltet.
Im Grundzustand arbeitet der Lehle 1at3 SGoS in dieser Betriebsart.
Betriebsmodus 2 (programmierbarer Modus):
Hier lassen sich zu jedem Fußtaster eine beliebige Kombination aus A,B oder C
programmieren (siehe Punkt 8 - Programmtaster). Wird der gedrückte Fußtaster ein zweites
mal betätigt, gehen A, B oder C aus.
Betriebsmodus 3 (programmierbarer Modus):
Dies ist der Betriebsmodus, den man benötigt, um mehrere Lehle SGoS Switcher
miteinander zu vernetzen.
Dieser Modus funktioniert von der Programmierung her wie Modus 2, allerdings ohne
Ausgehen der Ausgänge nach zweimaligem Schalten.
Sobald in diesem Modus ein Fußtaster betätigt wurde, sendet der Lehle 1at3 SGoS einen
MIDI-Programchange Befehl über die MIDI-Buchse (6).
10 Der Boden des Lehle 1at3 SGoS lässt sich problemlos befestigen. Zuerst müssen die vier
Gehäuseschrauben des Deckels geöffnet werden, dann kann der Boden des Gerätes mit Hilfe
der zwei mitgelieferten Schrauben, den Unterlegscheiben und den Distanzstücken auf eine
Grundplatte angeschraubt werden.
Herstellung des Ausgangszustandes
Bevor der Stecker für die Stromversorgung (5) eingesteckt wird, müssen alle drei Fußtaster
gedrückt sein.
Im gedrückten Zustand wird der Stecker für die Stromversorgung eingesteckt.
Ca. 7 sec blinken die LEDs gleichzeitig, bis sie erlöschen. Danach können die Fußtaster
losgelassen werden. Der Lehle 1at3 SGoS befindet sich jetzt im Ausgangszustand.
Die MIDI Eigenschaften des Lehle 1at3 SGoS
Der Lehle 1at3 SGoS empfängt in allen 3 Betriebsmodi MIDI-Programchange Befehle.
Um andere MIDI-fähige Geräte anzuschließen, muss ein Kabel (Adapter) benutzt werden,
dass folgende Belegung hat:
2
5
4
Passende Kabel mit verschiedenen Kabellängen können unter www.lehle.com bestellt werden.
Der Lehle Dual SGoS sendet im Betriebsmodus 3 fest eingestellt auf MIDI-Kanal 15.
MIDI-Empfangskanal festlegen
Im Ausgangszustand empfängt der Lehle 1at3 SGoS auf allen MIDI-Kanälen gleichzeitig (=
Omnimodus). Man kann aber auch einen bestimmten Kanal einstellen, auf dem der Lehle
1at3 SGoS empfängt.
Bevor der Stecker für die Stromversorgung (5) eingesteckt wird, muss der linke Fußtaster
gedrückt sein.
Im gedrückten Zustand wird der Stecker für die Stromversorgung eingesteckt.
