Venjakob 3867 free-motion Montageanleitung Seite 7

assembly
frame
metal
tub

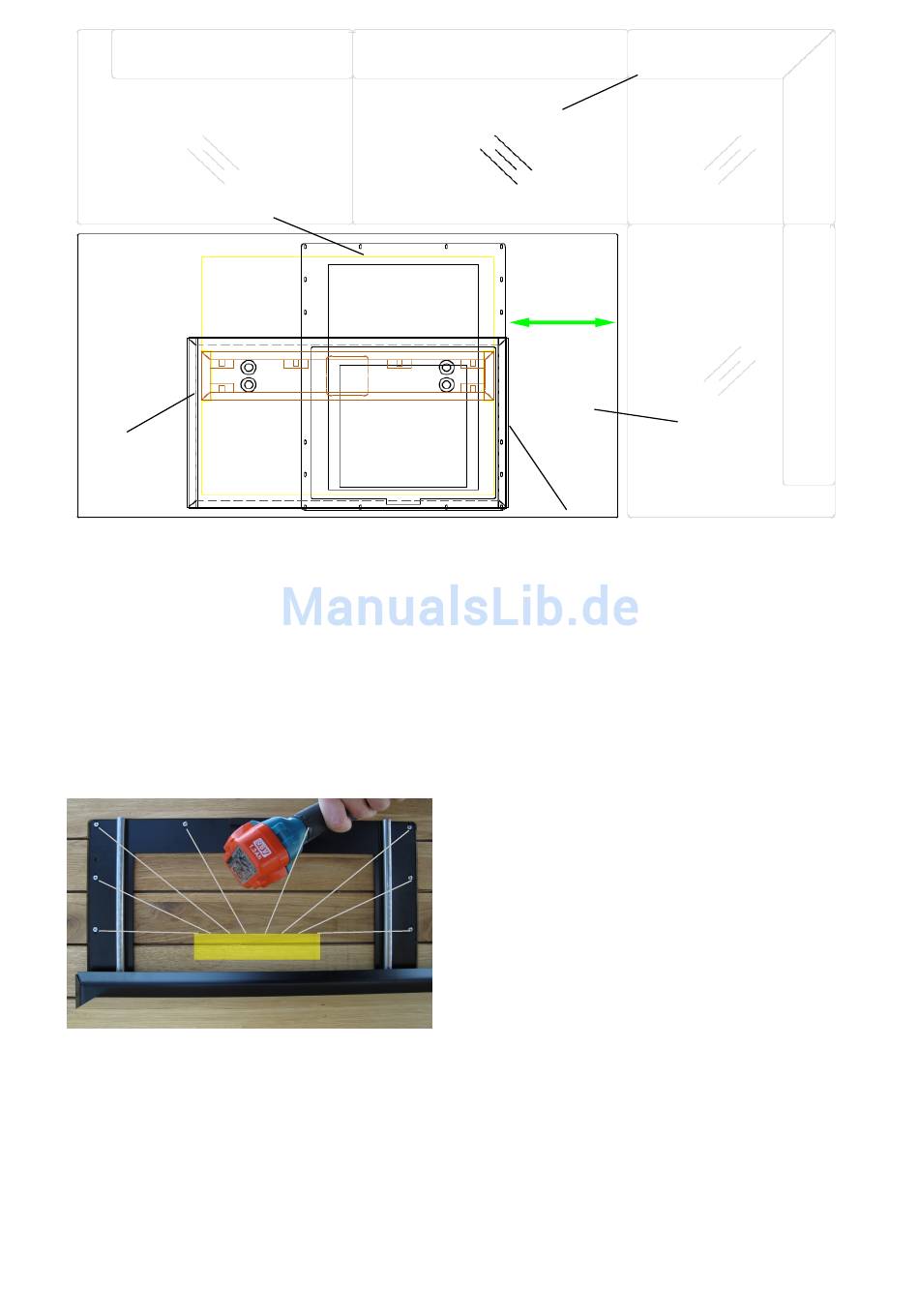

9.R option: corner bench RHF
The metal tub (assembled on frame asymmetrical) must be in the opposite of the long side of
the bench.
Slide the moveable assembly frame in direction of the corner bench. Now the bracket is in
basic position.
Lay the table top on the assembly frame. The assembly frame must lock into the routed parts
of the table top. Bring the assembly frame in the nearest position to the reference edge.
Spax 4,5 x 22
10. Fix the metal frame.
Fix the table top with the 16 srews (4,5 x 25).
Use 8 screws on each side.
3867_freemotion_UB_unmontiert_UK.xls
short
overlap
reference edge
3 / 4
bench
table top
Änderungsdatum: 29.10.2012
