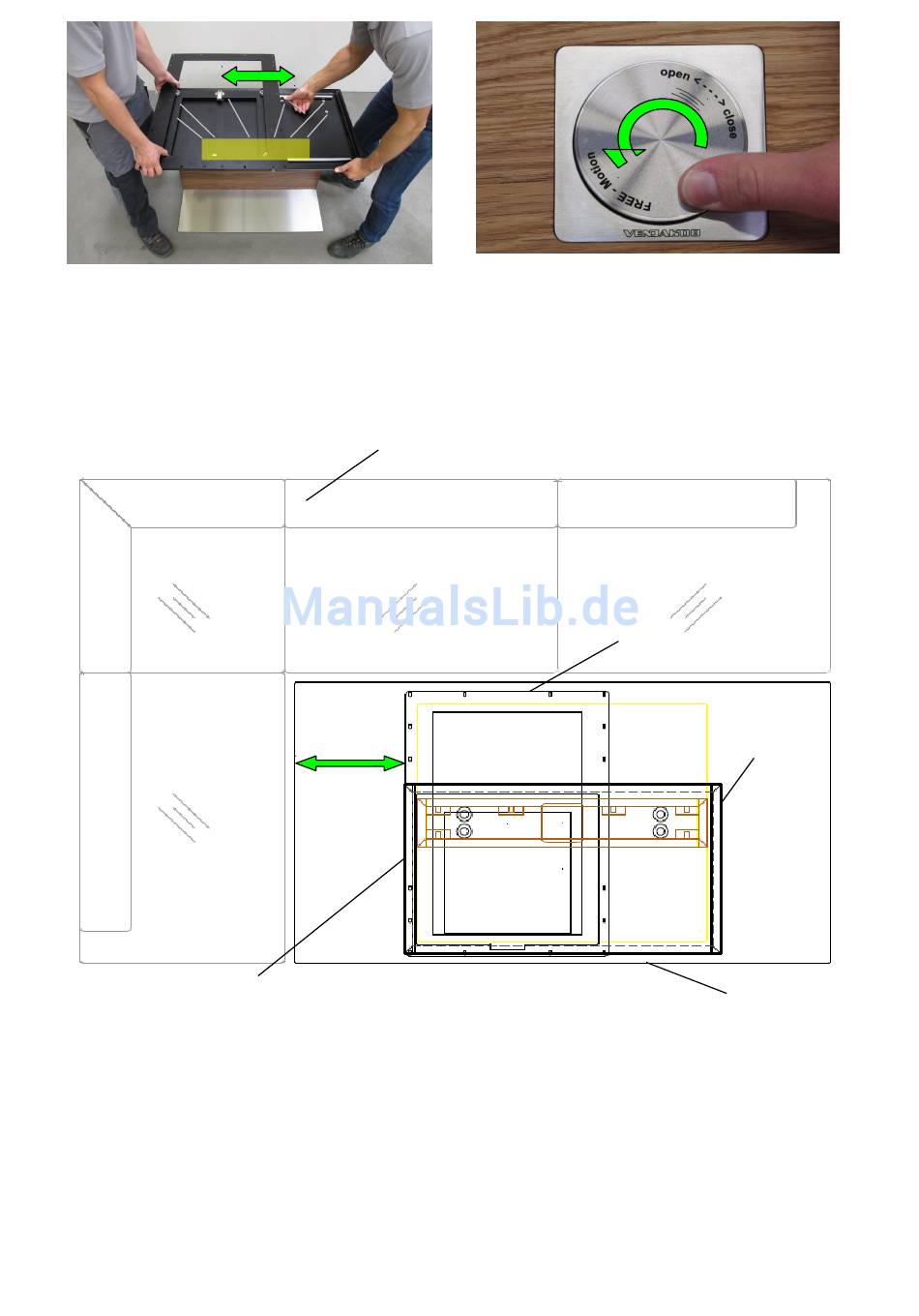

Venjakob 3867 free-motion Montageanleitung Seite 6

6 x M8 x 35
7. Fix everything with 6 screws (M8 x 35).
Slide the metal frame as pictured.
refernece edge
9.L option: corner bench LHF
The metal tub (assembled on frame asymmetrical) must be in the opposite of the long side of
the bench.
Slide the moveable assembly frame in direction of the corner bench. Now the bracket is in
basic position.
Lay the table top on the assembly frame. The assembly frame must lock into the routed parts
of the table top. Bring the assembly frame in the nearest position to the reference edge.
3867_freemotion_UB_unmontiert_UK.xls
8. Unpack the table top.
bench
short
overlap
2 / 4
ca. 5
U.
Release the free-motion stainless steel locking
completly.
assembly frame
metal
tub
table top
Änderungsdatum: 29.10.2012
