App. A PIN ASSIGNMENTS
App. A PIN ASSIGNMENTS
LCD1810.PM5

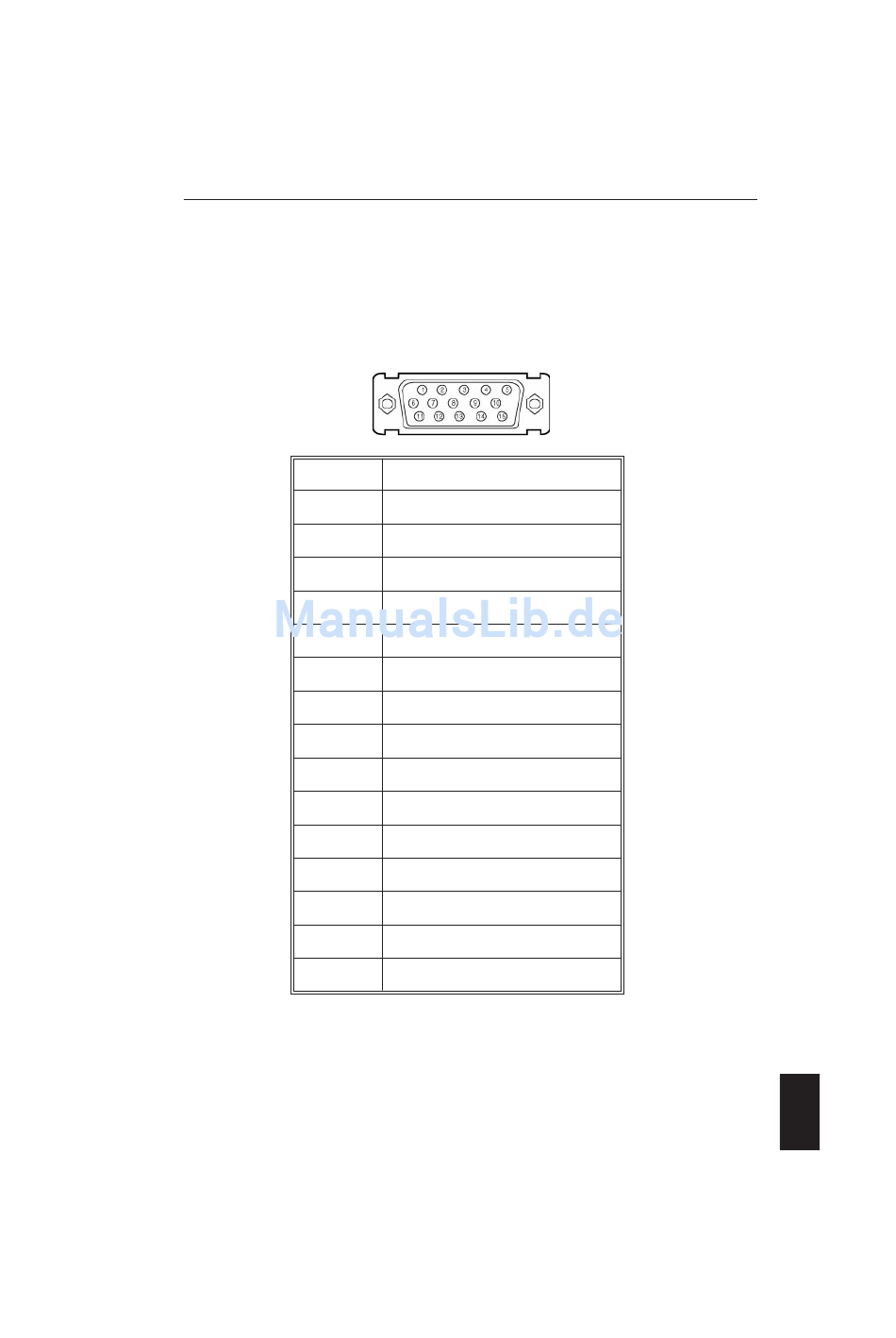

MINI D-SUB 15 P
Pin No. LCD
1810
1 RED
2 GREEN
3 BLUE
4 NO-CONNECTION
5 GROUND
6 GROUND
7 GROUND
8 GROUND
9 +5V (DDC)
10 GROUND
11 GROUND
12 SDA
13 H.SYNC, H/V.SYNC
14 V.SYNC
15 SCL
