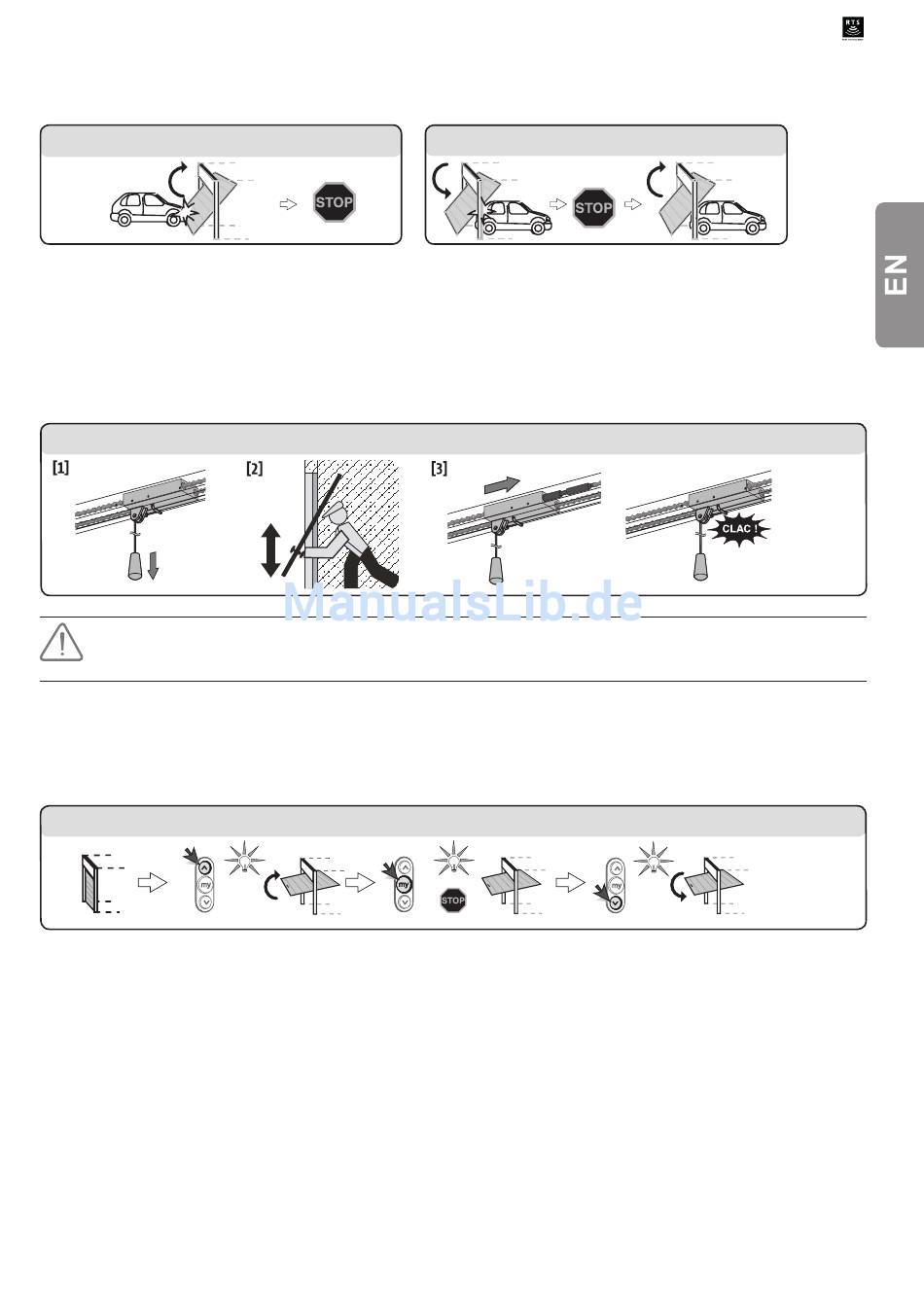

Obstacle detection operation (fig. 6 and 7)
When an obstacle is detected during opening, the door will stop (fig. 6).
When an obstacle is detected during closing, the door will stop and then re-open (fig. 7).
The integrated lighting is activated intermittently for 30 seconds.
Operation of the manual back release device (fig. 8)
The Dexxo Compact RTS is equipped with a manual back release device which makes it possible to manipulate the door manually, for example in the event of
an electrical fault. This device must be able to be accessed easily, at a maximum of 1.80 m from the ground.
[1]. Releasing the motorisation
Pull on the cord until the door drive system is released.
[2]. Manual manipulation of the door
This is possible as the drive system is released.
[3]. Re-engaging the motorisation
Move the door manually until the drive mechanism re-locks on the transmission rail.
When releasing the motorisation, sudden movements may occur if the door is incorrectly balanced which may be dangerous.
Only use the cord to release the motorisation. Never use the cord to manipulate the door manually.
It is essential that the motorisation is re-engaged before any new commands.

Specific operation

Depending on the peripherals installed and the operating options programmed by your installer, the Dexxo Compact RTS motor may have the following specific
functions:
Operation in "Total opening" mode with a TEliS type remote control or similar (fig. 9)
Operation with safety cells
An obstacle placed between the cells will prevent the door from closing.
if an obstacle is detected when the door is closing, the door stops then reopens.
The integrated lighting is activated intermittently for 30 seconds.
Operation with orange flashing light
The orange light is activated whenever the door moves, with a 2-second pre-warning before movement starts.
Operation using the backup battery
If a backup battery is installed, the Dexxo Compact RTS motor will work even during a general power outage.
Operation is then activated under the following conditions:
• Reduced speed.
• The lighting does not work.
• The safety devices do not work.
Battery specifications:
• Operation time: 24 hours; 5 to 10 operating cycles depending on the weight of the door.
• Recharging time: 72 hours
• Service life before replacement: Approximately 3 years.
For optimum battery life, it is recommended that the main power supply be switched off and the motor operated using the battery for several cycles, three times
a year.
