Staufenbiel MINI HAWK III REVOLUTION Montageanleitung Seite 21

19

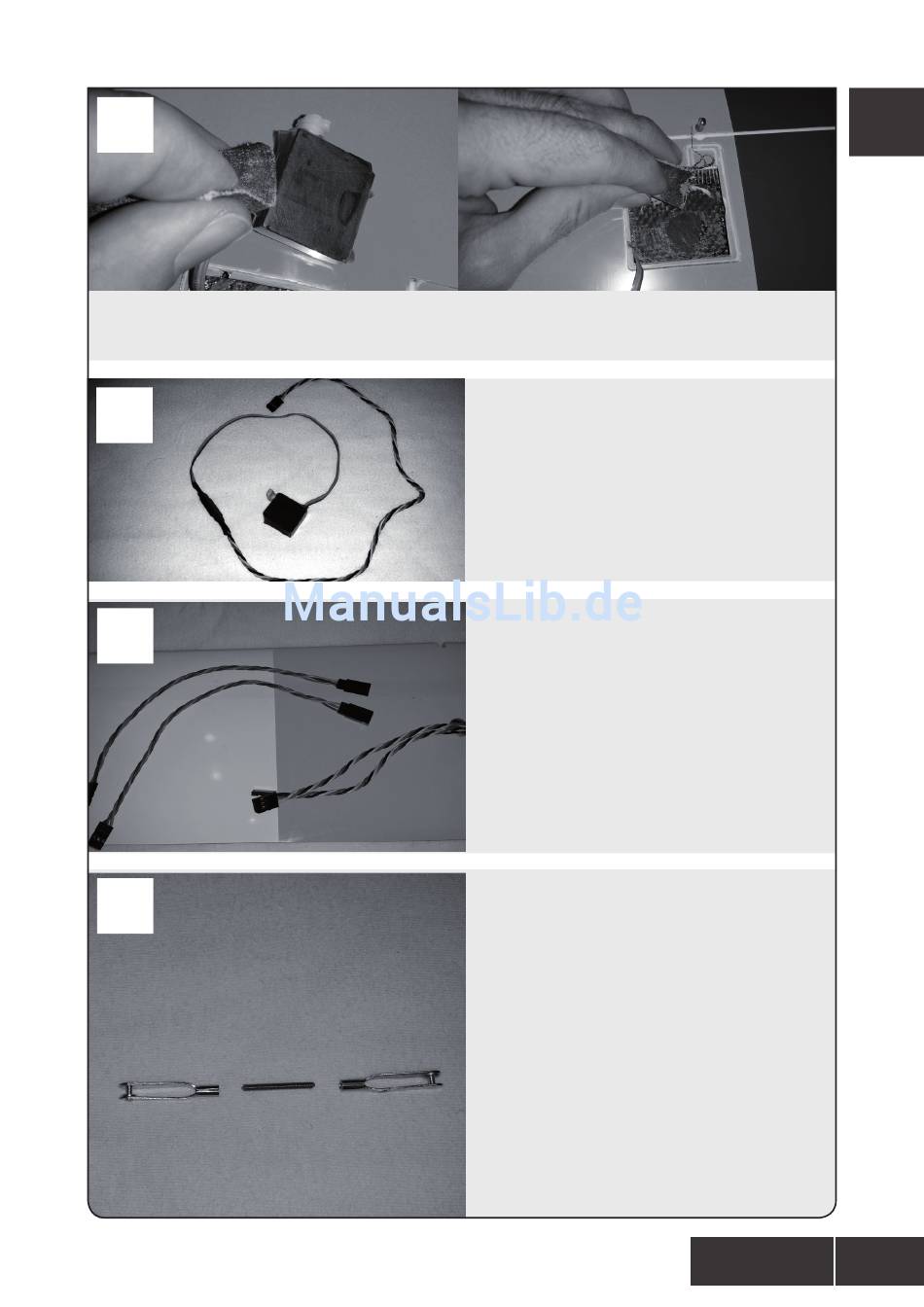

ARF VERSION ONLY: Sand the shrink sleeve on the bottom side of the servo as well as the bot-
tom of the compartment in the wing with coarse sanding paper.
20
21
22
ARF VERSION ONLY:
Prepare two servo extension cables that are
each 30cm long and connect them to the
servos.
ARF VERSION ONLY:
Thread the extension cables through the wing.
In order to make the assembly of the model
easier, we recommend installing an additional
plug-in connector with an MPX connector
between the wing and the receiver. With the
extra connector, two additional extension
cables approx. 15cm long will be necessary.
ARF VERSION ONLY:
Assemble the control surface with two fork-
heads and one M2 threaded rod. Due to limi-
ted space, the fork-heads are screwed directly
on one another and secured with Loctite.
Connect the rod with the servo and rudder
horn.
EN
21
