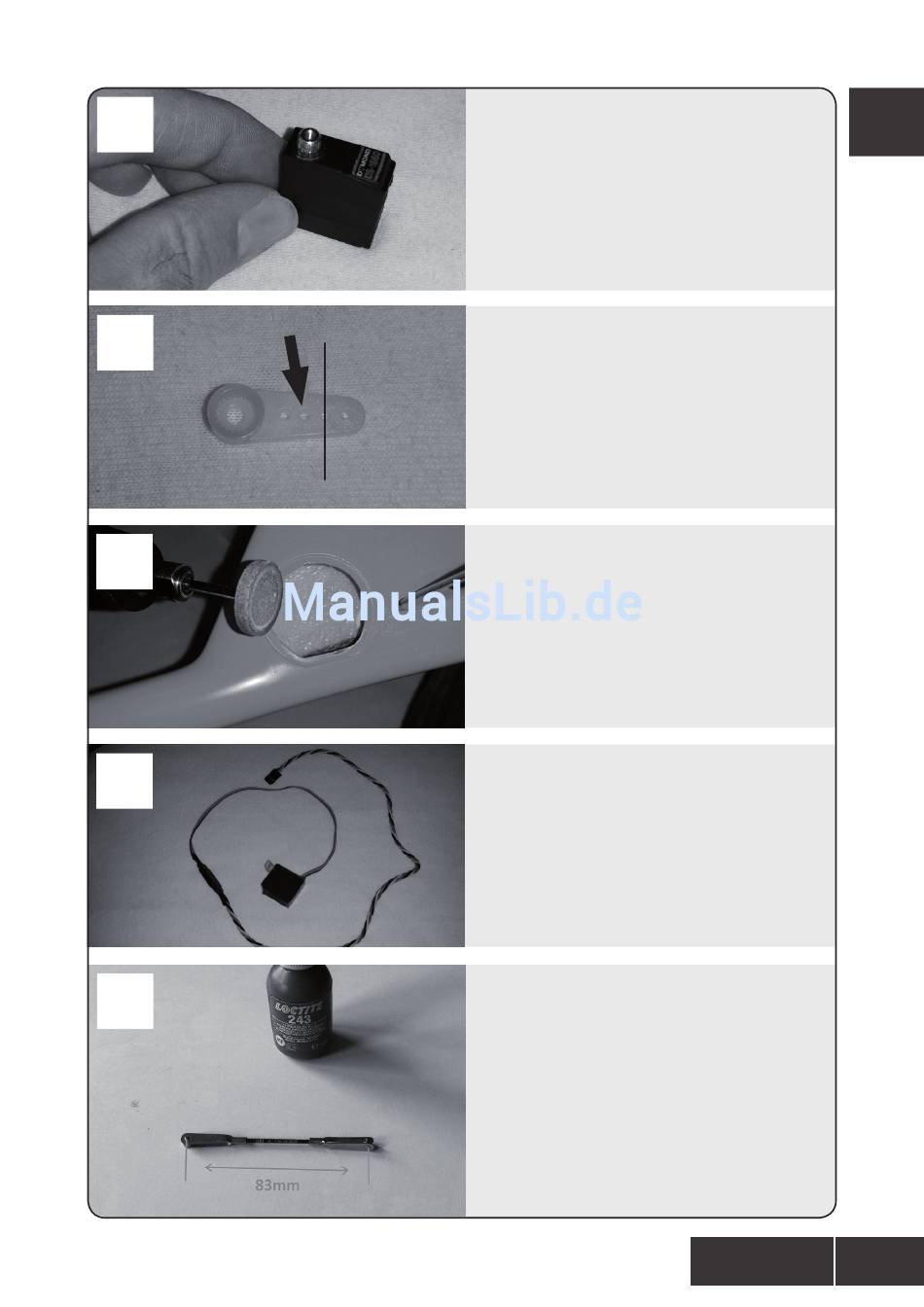

ARF VERSION ONLY:
For an easier assembly, remove both retaining
plates on the elevator servo with a milling cutter
or a cable cutter.
ARF VERSION ONLY:
Crop the servo horn according to the picture.
Expand the hole to 1.6mm using a drill. With
a servo tester, place the servo in a neutral posi-
tion and screw in the horn.
ARF VERSION ONLY:
Then roughen the support surface in the fusela-
ge with a large piece of coarse sandpaper.
ARF VERSION ONLY:
Prepare a servo extension cable with a length
of 25cm and attach it to the servo. We
recommend that you use tape or a safety as a
safeguard.
ARF VERSION ONLY:
Prepare the linkage rod. Distance between the
fork-heads: 83mm. Secure the screw joints with
Loctite so that they will not loosen with time.
Important: Twist one of the fork-heads until it is
at a 90° angle to the other.
