Markise Funk WS
(Awning radio control)
DIP switch
Setting the wind speed threshold value
SW1 button
Programming the External LED
radio transmitter
Operating button „retract" retracting sunshade
Operating button „extend" extending sunshade
11:43 Seite 31

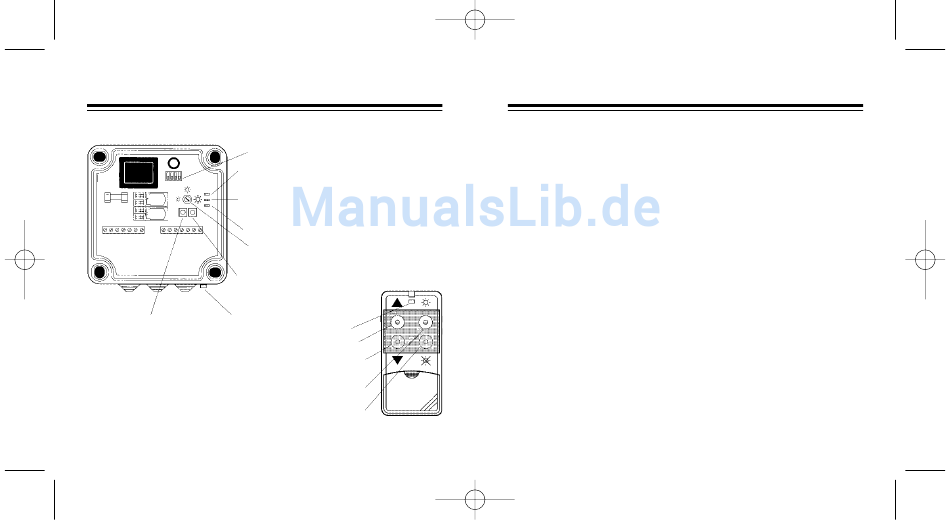

Display and operating elements

green LED
Display: control command is recognized
red LED
Display: wind velocity threshold value exceeded
cable rupture in wind meter
yellow LED
Display: programming the radio transmitter
Potentiometer
Hand-held
Setting the sun threshold value
radio
transmitter
SW2 button
Deleting the programmed
radio transmitter
LED
Operating button „automatic"
Operating button „manual"
- 31 -

Functional description of internal display elements

LED flashes green:
LED is lit up red:
LED flashes red:
Yellow LED flashes
slowly:
Yellow LED flashes
rapidly:
G G
A control command has been received from radio trans-
mitter or operating button and is being executed when the
red LED is not lit up or flashing.
Wind alarm. The preset wind velocity threshold value has
been exceeded. The sunshade is retracted immediately
and cannot be extended under any circumstances until the
wind velocity falls below the set limit and the safety delay
time (16 minutes) has elapsed continuously.
Cable rupture recognition is active. No wind meter has
been connected or the power supply cable of the wind
meter has been disconnected. The sunshade is retracted
immediately and cannot be extended under any circum-
stances. In this case, please contact a professional elec-
trician to check the wind meter and to reconnect the
corresponding cables.
Programming/deleting mode is switched on. A radio
transmitter can be programmed (i.e. assigned to the
Vestamatic Markise Funk WS [awning radio control])
or a programmed radio transmitter can be deleted.
Programming/deleting has been completed. Program-
ming or deleting the radio transmitter has been completed
and stored.
