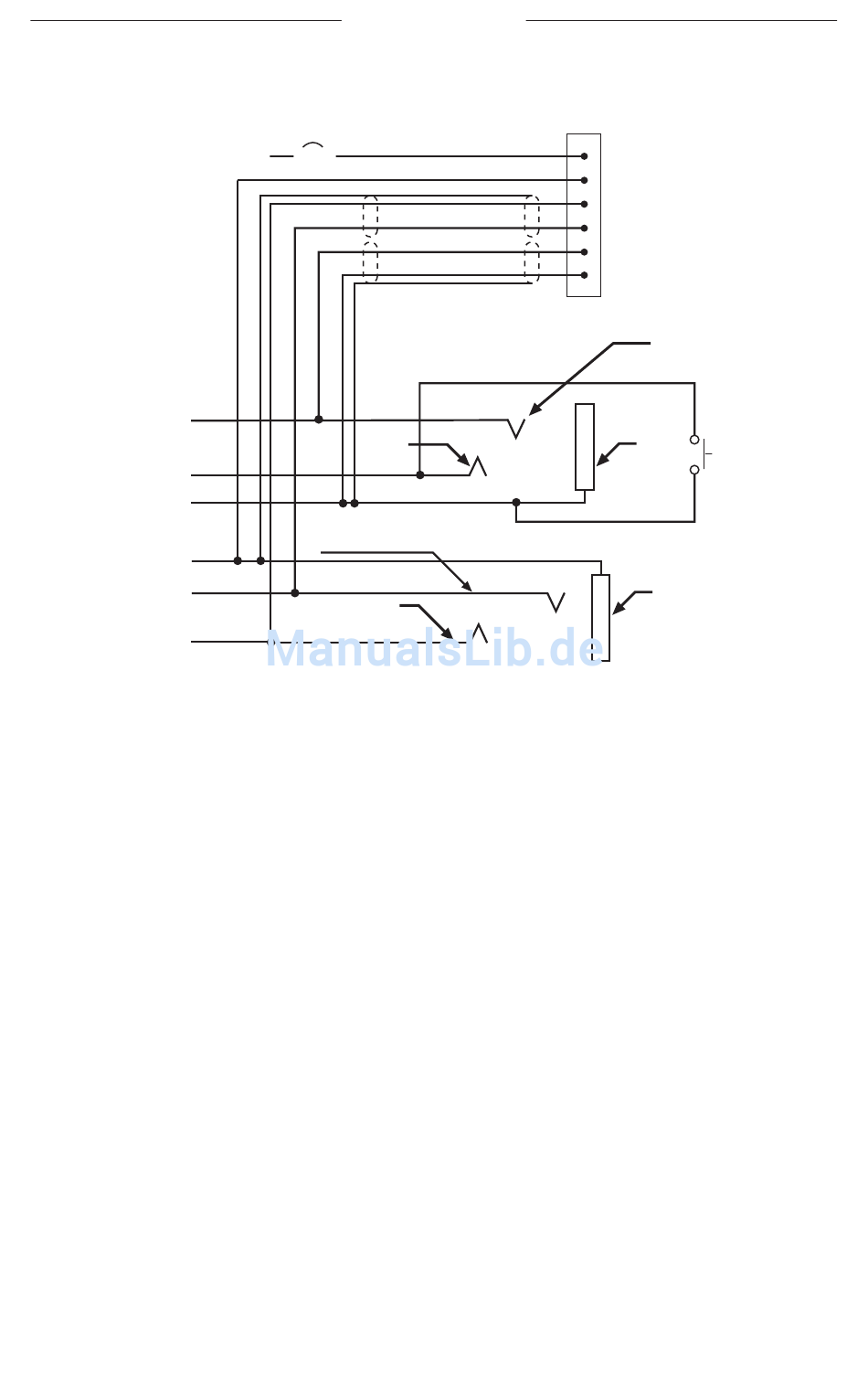

Stereo-Anschlussdiagramm
Existing wiring to
aircraft stereo
intercom/audio panel
I N STA L L ATI O N
10-32
1/2A
V DC
WHT/BLU
TPP
(PTT)
Phone
audio (right)
Tip
(phone audio left)
RED
BLK
BLK/WH
WHT
BLU
WHT
BLK/WH
Microphone - Jack
Stereo Headphone - Jack
|
5 2
D E U
1V+IN
2 GND
3 COMM L
4 COMM R
5 MIC HI
6 MIC LO
Audio
Existing
Barrel
PTT switch
(gnd)
and wiring
(no connection to
Bose headset)
Barrel
(audio gnd)
