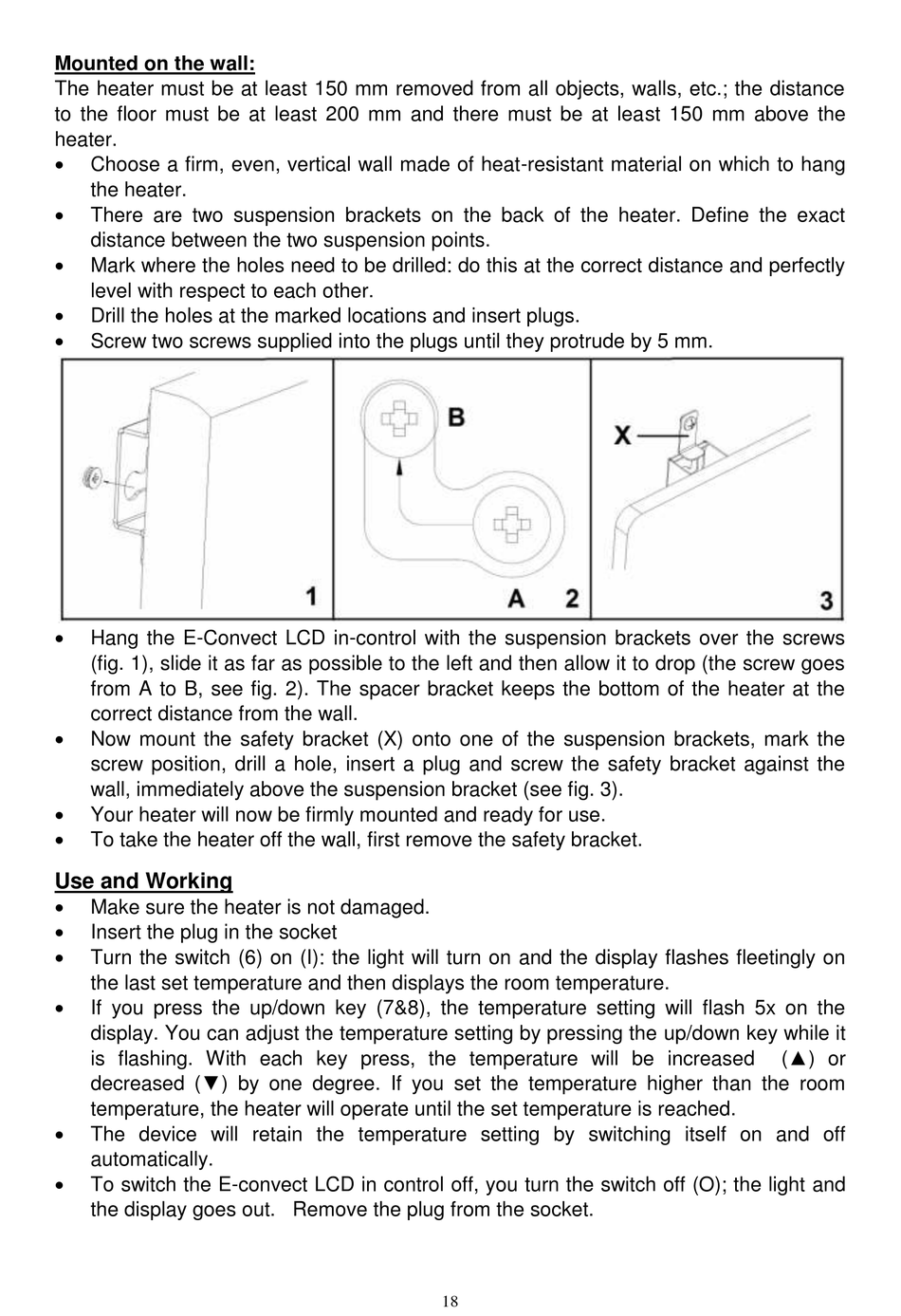

Mounted on the wall:
The heater must be at least 150 mm removed from all objects, walls, etc.; the distance
to the floor must be at least 200 mm and there must be at least 150 mm above the
heater.

Choose a firm, even, vertical wall made of heat-resistant material on which to hang
the heater.

There are two suspension brackets on the back of the heater. Define the exact
distance between the two suspension points.

Mark where the holes need to be drilled: do this at the correct distance and perfectly
level with respect to each other.

Drill the holes at the marked locations and insert plugs.

Screw two screws supplied into the plugs until they protrude by 5 mm.

Hang the E-Convect LCD in-control with the suspension brackets over the screws
(fig. 1), slide it as far as possible to the left and then allow it to drop (the screw goes
from A to B, see fig. 2). The spacer bracket keeps the bottom of the heater at the
correct distance from the wall.

Now mount the safety bracket (X) onto one of the suspension brackets, mark the
screw position, drill a hole, insert a plug and screw the safety bracket against the
wall, immediately above the suspension bracket (see fig. 3).

Your heater will now be firmly mounted and ready for use.

To take the heater off the wall, first remove the safety bracket.
Use and Working

Make sure the heater is not damaged.

Insert the plug in the socket

Turn the switch (6) on (I): the light will turn on and the display flashes fleetingly on
the last set temperature and then displays the room temperature.

If you press the up/down key (7&8), the temperature setting will flash 5x on the
display. You can adjust the temperature setting by pressing the up/down key while it
is flashing. With each key press, the temperature will be increased
decreased (▼) by one degree. If you set the temperature higher than the room
temperature, the heater will operate until the set temperature is reached.

The device will retain the temperature setting by switching itself on and off
automatically.

To switch the E-convect LCD in control off, you turn the switch off (O); the light and
the display goes out. Remove the plug from the socket.
18
(▲) or
