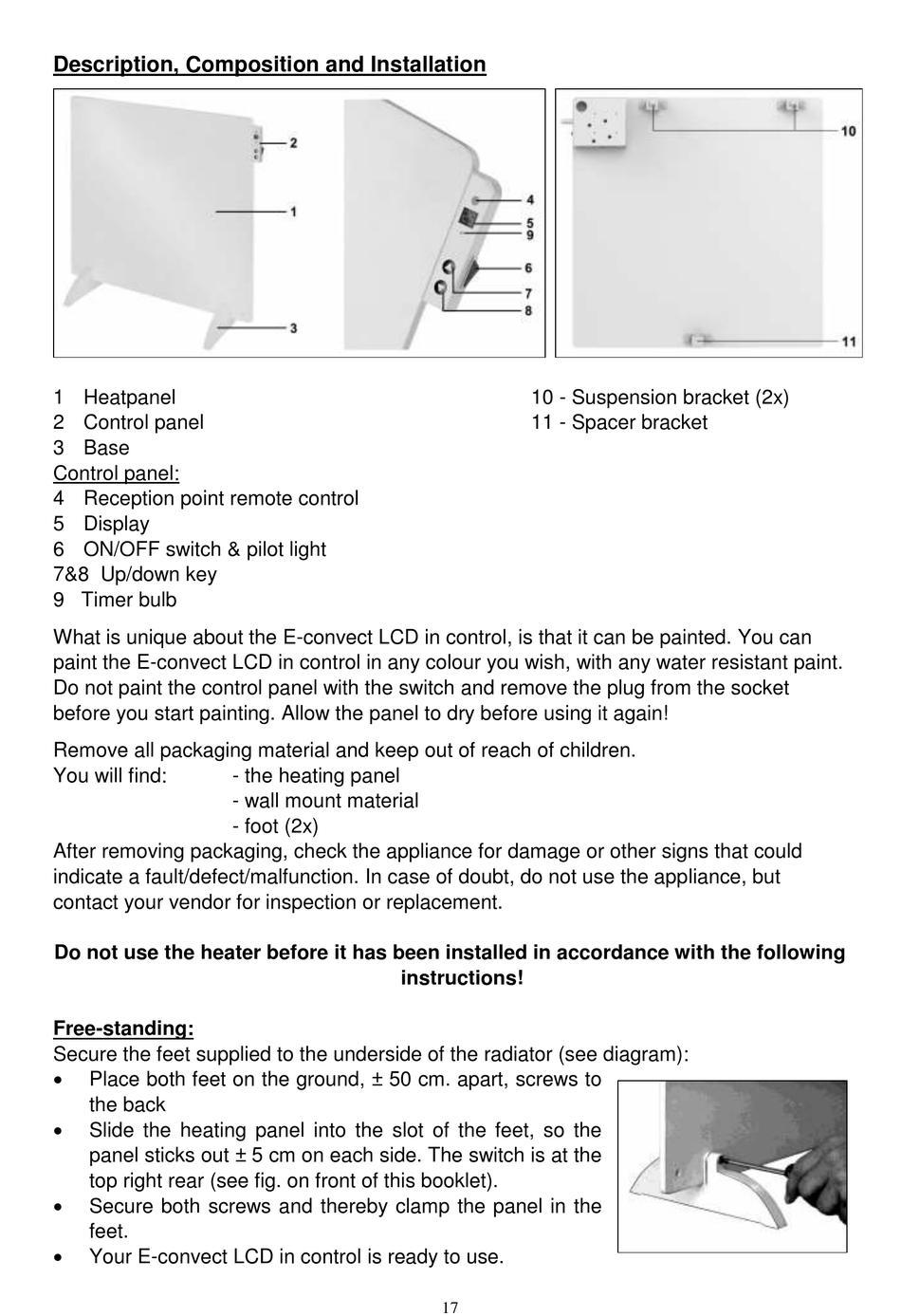

Description, Composition and Installation
1 Heatpanel
2 Control panel
3 Base
Control panel:
4 Reception point remote control
5 Display
6 ON/OFF switch & pilot light
7&8 Up/down key
9 Timer bulb
What is unique about the E-convect LCD in control, is that it can be painted. You can
paint the E-convect LCD in control in any colour you wish, with any water resistant paint.
Do not paint the control panel with the switch and remove the plug from the socket
before you start painting. Allow the panel to dry before using it again!
Remove all packaging material and keep out of reach of children.
You will find:
After removing packaging, check the appliance for damage or other signs that could
indicate a fault/defect/malfunction. In case of doubt, do not use the appliance, but
contact your vendor for inspection or replacement.
Do not use the heater before it has been installed in accordance with the following
Free-standing:
Secure the feet supplied to the underside of the radiator (see diagram):

Place both feet on the ground, ± 50 cm. apart, screws to
the back

Slide the heating panel into the slot of the feet, so the
panel sticks out ± 5 cm on each side. The switch is at the
top right rear (see fig. on front of this booklet).

Secure both screws and thereby clamp the panel in the
feet.

Your E-convect LCD in control is ready to use.
- the heating panel
- wall mount material
- foot (2x)
instructions!
10 - Suspension bracket (2x)
11 - Spacer bracket
