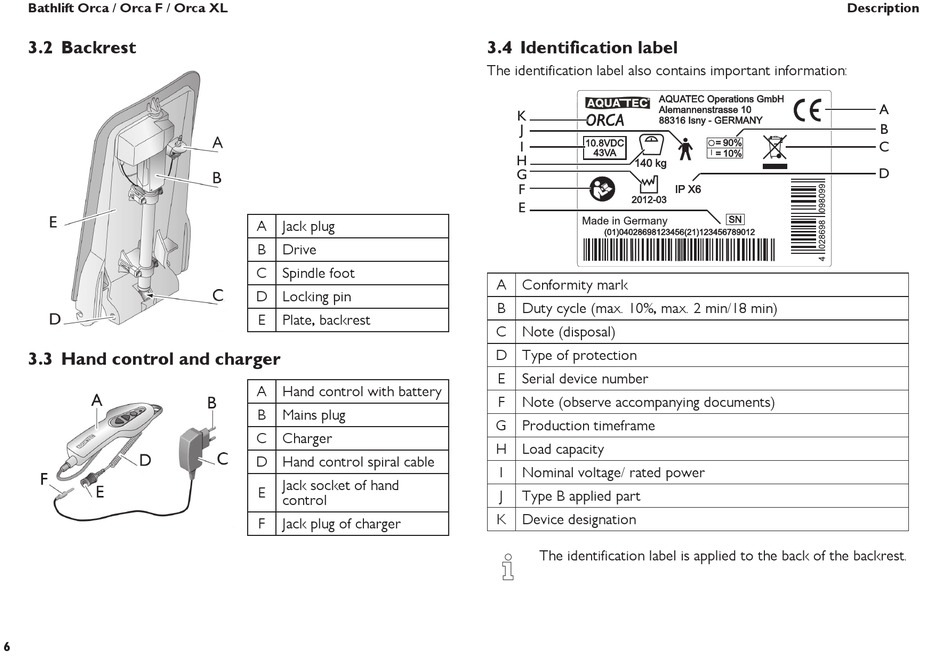

Backrest; Hand Control And Charger; Identification Label - Aquatec Orca Gebrauchsanweisung

Bathlift Orca / Orca F / Orca XL

3.2 Backrest

3.3 Hand control and charger

6
A Jack plug
B Drive
C Spindle foot
D Locking pin
E Plate, backrest
A Hand control with battery
B Mains plug
C Charger
D Hand control spiral cable
Jack socket of hand
E
control
F Jack plug of charger

3.4 Identification label

The identification label also contains important information:
K
J
I
H
G
F
E
A Conformity mark
B Duty cycle (max. 10%, max. 2 min/18 min)
C Note (disposal)
D Type of protection
E Serial device number
F Note (observe accompanying documents)
G Production timeframe
H Load capacity
I Nominal voltage/ rated power
J Type B applied part
K Device designation
The identification label is applied to the back of the backrest.
