Instructions for installation and use

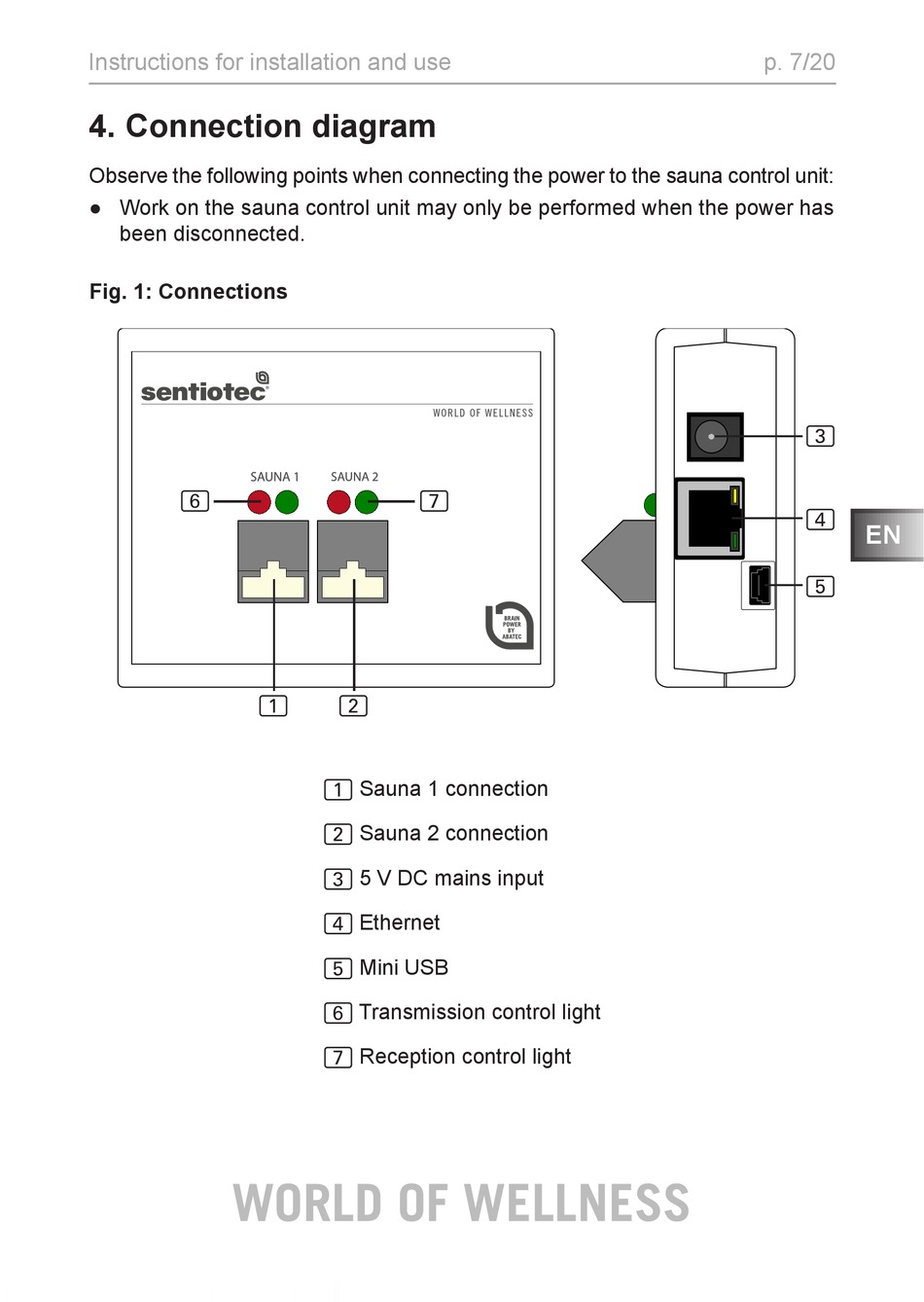

4. Connection diagram

Observe the following points when connecting the power to the sauna control unit:
● Work on the sauna control unit may only be performed when the power has
been disconnected.
Fig. 1: Connections
6
1
WORLD OF WELLNESS
7
2
1 Sauna 1 connection
2 Sauna 2 connection
3 5 V DC mains input
4 Ethernet
5 Mini USB
6 Transmission control light
7 Reception control light
p. 7/20
3
4
EN
5
