7. Selecting Start Program

First remove the plastic cover by lifting it
upwards. To do so, press the individual
attachment notches on the edge of the
housing slightly inwards so that the cover
comes away from the base of the unit.

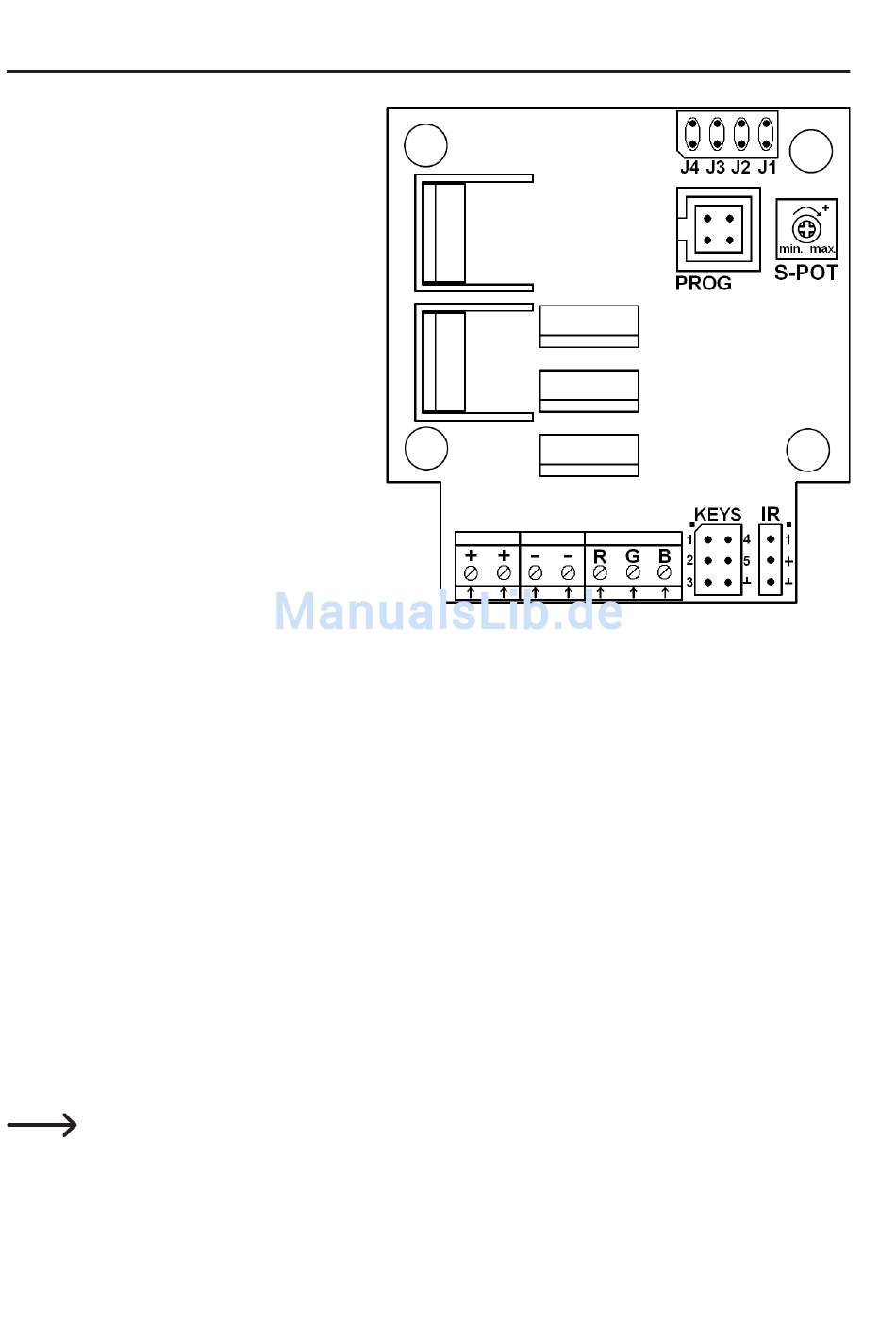

There are 4 jumper bridges on the circuit-
board J1, J2, J3 und J4, as shown on the
upper right of the adjacent figure.
These jumper bridges allow you to select
one of the lighting programmes which
will be activated automatically when the
power supply is attached.
The speed of the lighting program can
be selected with the "S-POT" dial, use a
suitable screwdriver to set the dial.
The following levels can be selected:
1 x, ½ x , ¼ x, 1/16 x, 1/64 x, 1/128 x
base speed (direction.: max. -> min.)
In the following table "x" indicates an attached jumper. A description of the lighting programs is
available on the next page.
J1 J2 J3
x - -
- x -
x x -
- - x
x - x
- x x
x x x
- - -
All other jumper combinations activate colour change at normal speed.
J4 Function
- Colour change (slow fading)
- Colour change (no hold time)
- Tempest
- Fireplace
- Sunrise and sunset
- Colour flashes
- User program 1
x User program 2
