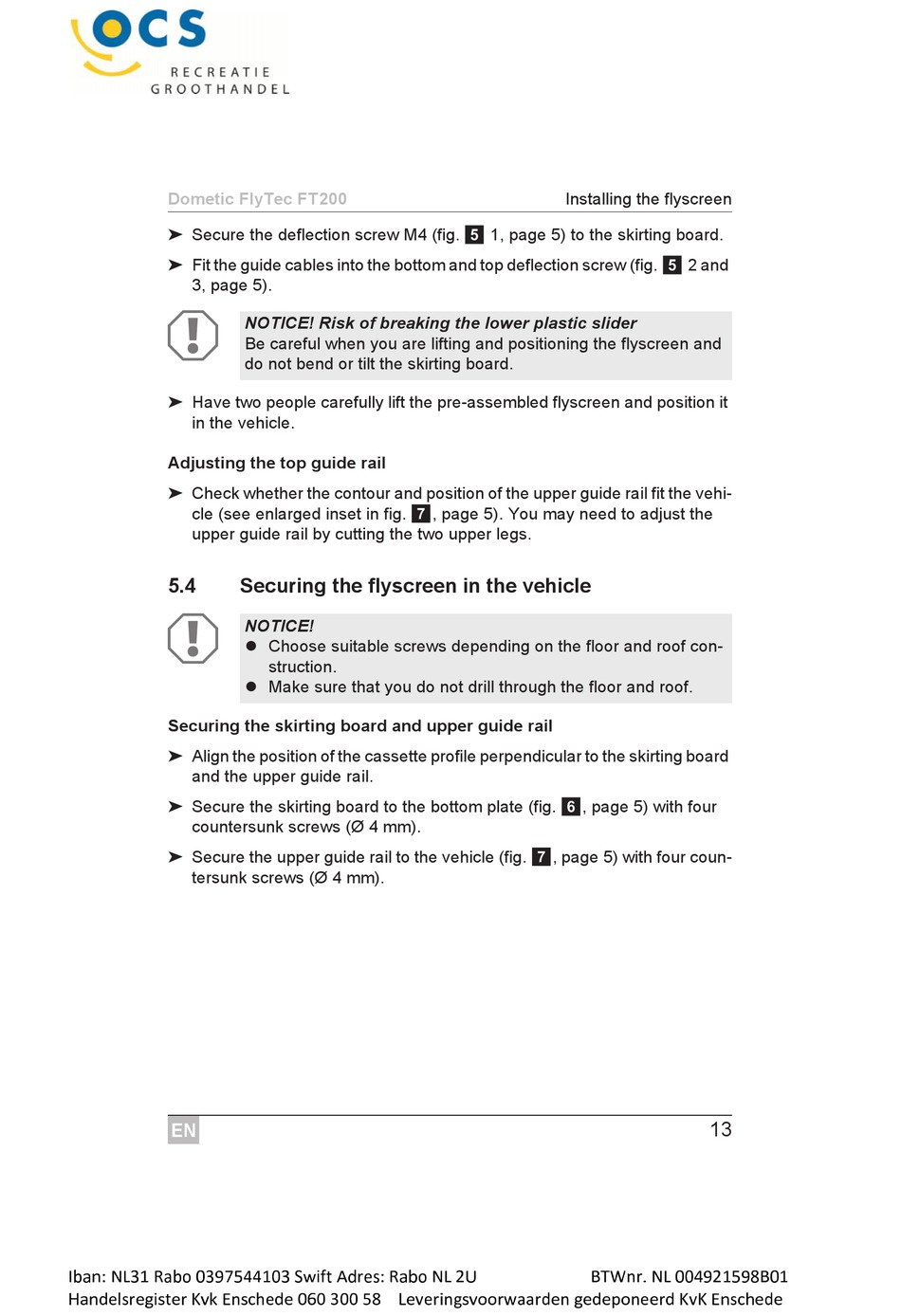

Dometic FlyTec FT200
➤ Secure the deflection screw M4 (fig. 5 1, page 5) to the skirting board.
➤ Fit the guide cables into the bottom and top deflection screw (fig. 5 2 and
3, page 5).
A
NOTICE! Risk of breaking the lower plastic slider
Be careful when you are lifting and positioning the flyscreen and
do not bend or tilt the skirting board.
➤ Have two people carefully lift the pre-assembled flyscreen and position it
in the vehicle.
Adjusting the top guide rail
➤ Check whether the contour and position of the upper guide rail fit the vehi-
cle (see enlarged inset in fig. 7, page 5). You may need to adjust the
upper guide rail by cutting the two upper legs.
5.4

Securing the flyscreen in the vehicle

A
NOTICE!
Choose suitable screws depending on the floor and roof con-
struction.
Make sure that you do not drill through the floor and roof.
Securing the skirting board and upper guide rail
➤ Align the position of the cassette profile perpendicular to the skirting board
and the upper guide rail.
➤ Secure the skirting board to the bottom plate (fig. 6, page 5) with four
countersunk screws (Ø 4 mm).
➤ Secure the upper guide rail to the vehicle (fig. 7, page 5) with four coun-
tersunk screws (Ø 4 mm).
EN
Installing the flyscreen
13
