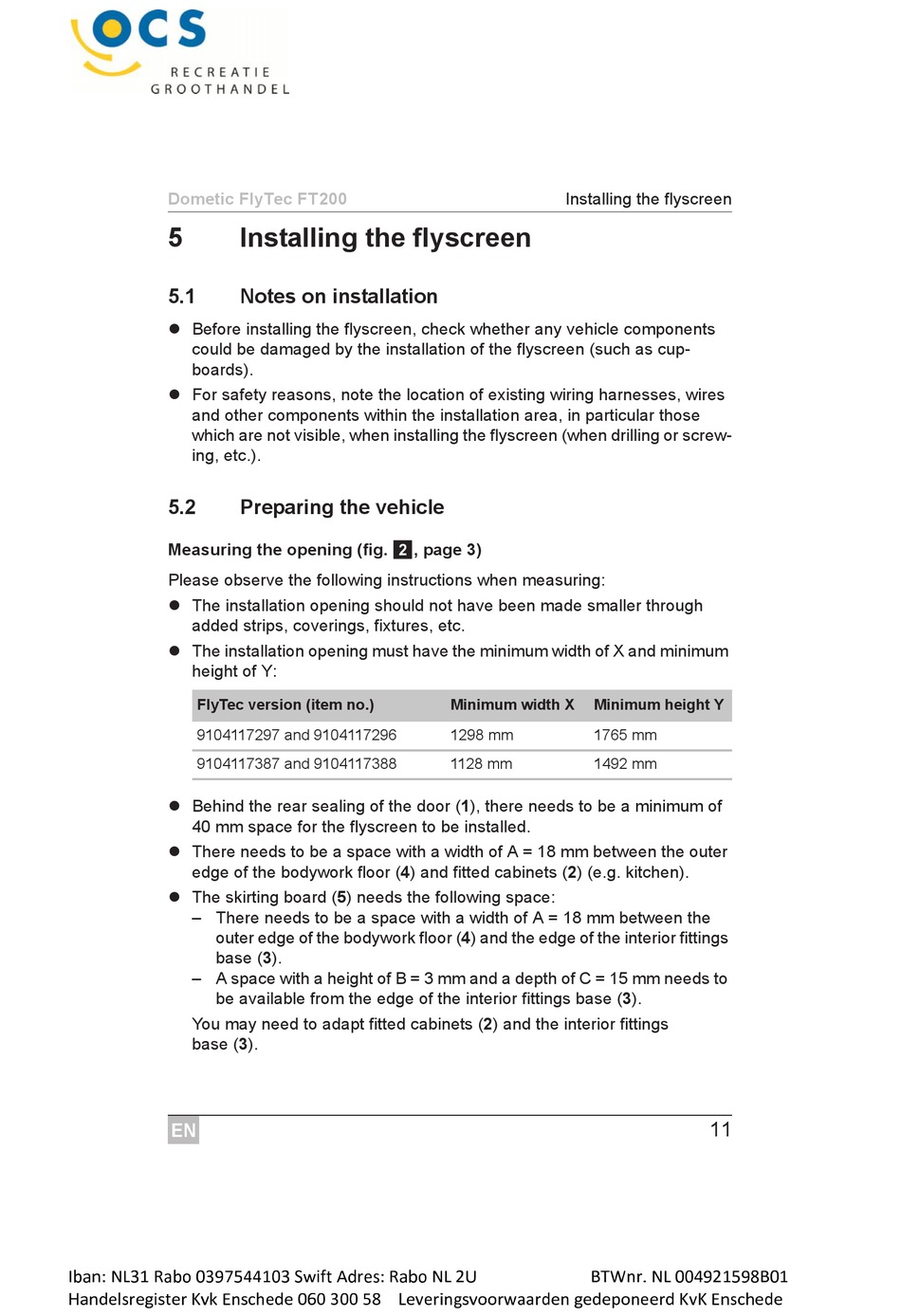

Dometic FlyTec FT200
5

Installing the flyscreen

5.1 Notes on installation
Before installing the flyscreen, check whether any vehicle components
could be damaged by the installation of the flyscreen (such as cup-
boards).
For safety reasons, note the location of existing wiring harnesses, wires
and other components within the installation area, in particular those
which are not visible, when installing the flyscreen (when drilling or screw-
ing, etc.).
5.2 Preparing the vehicle
Measuring the opening (fig. 2, page 3)
Please observe the following instructions when measuring:
The installation opening should not have been made smaller through
added strips, coverings, fixtures, etc.
The installation opening must have the minimum width of X and minimum
height of Y:
FlyTec version (item no.)
9104117297 and 9104117296
9104117387 and 9104117388
Behind the rear sealing of the door (1), there needs to be a minimum of
40 mm space for the flyscreen to be installed.
There needs to be a space with a width of A = 18 mm between the outer
edge of the bodywork floor (4) and fitted cabinets (2) (e.g. kitchen).
The skirting board (5) needs the following space:
– There needs to be a space with a width of A = 18 mm between the
outer edge of the bodywork floor (4) and the edge of the interior fittings
base (3).
– A space with a height of B = 3 mm and a depth of C = 15 mm needs to
be available from the edge of the interior fittings base (3).
You may need to adapt fitted cabinets (2) and the interior fittings
base (3).
EN
Installing the flyscreen
Minimum width X Minimum height Y
1298 mm 1765 mm
1128 mm 1492 mm
11
