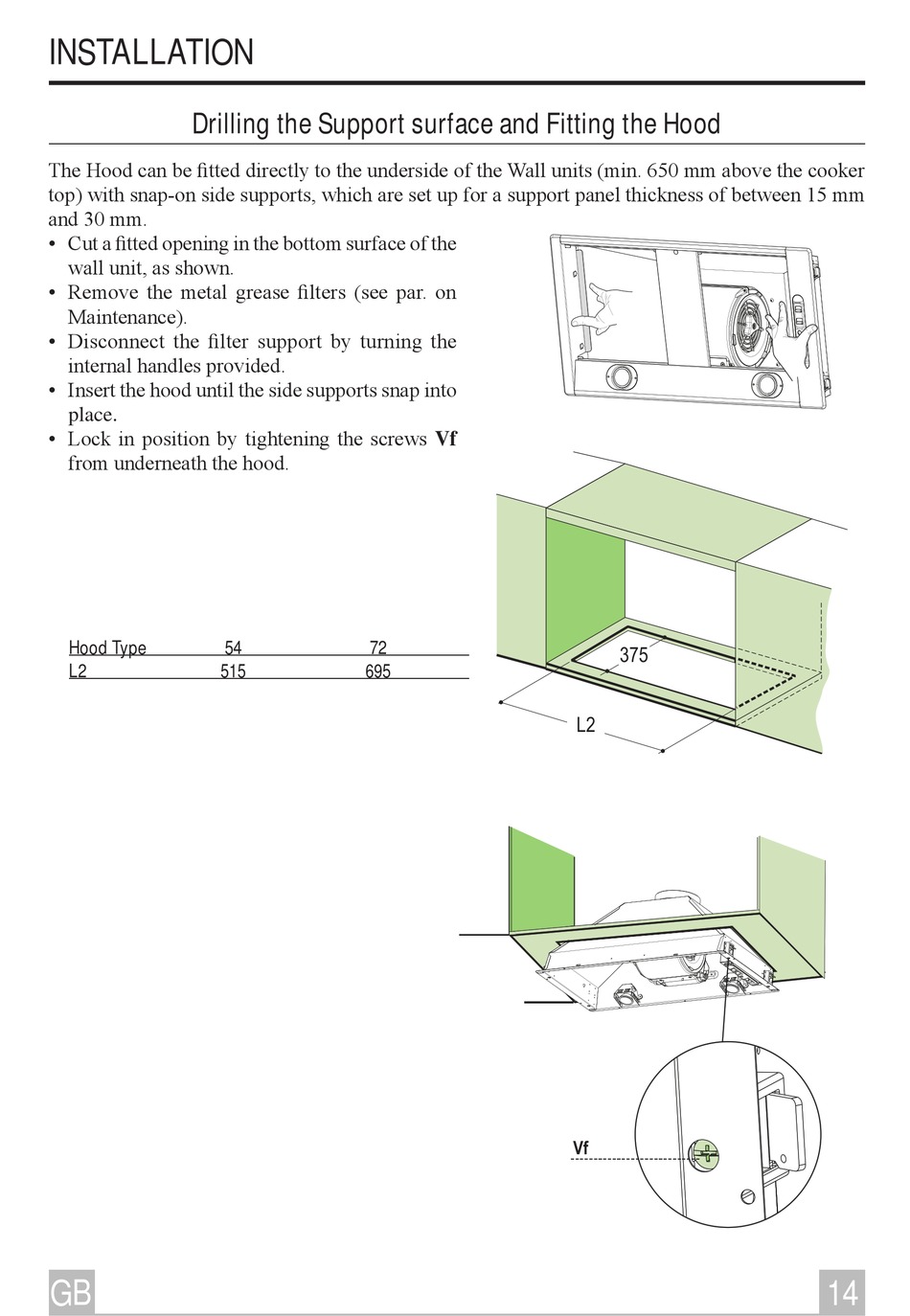

INSTaLLaTION

Drilling the Support surface and Fitting the Hood
The Hood can be fitted directly to the underside of the Wall units (min. 650 mm above the cooker
top) with snap-on side supports, which are set up for a support panel thickness of between 15 mm
and 30 mm.
• Cut a fitted opening in the bottom surface of the
wall unit, as shown.
• Remove the metal grease filters (see par. on
Maintenance).
• Disconnect the filter support by turning the
internal handles provided.
• Insert the hood until the side supports snap into
place.
• Lock in position by tightening the screws Vf
from underneath the hood.
Hood Type
L2
515
GB
54 72
695
���
��
��
