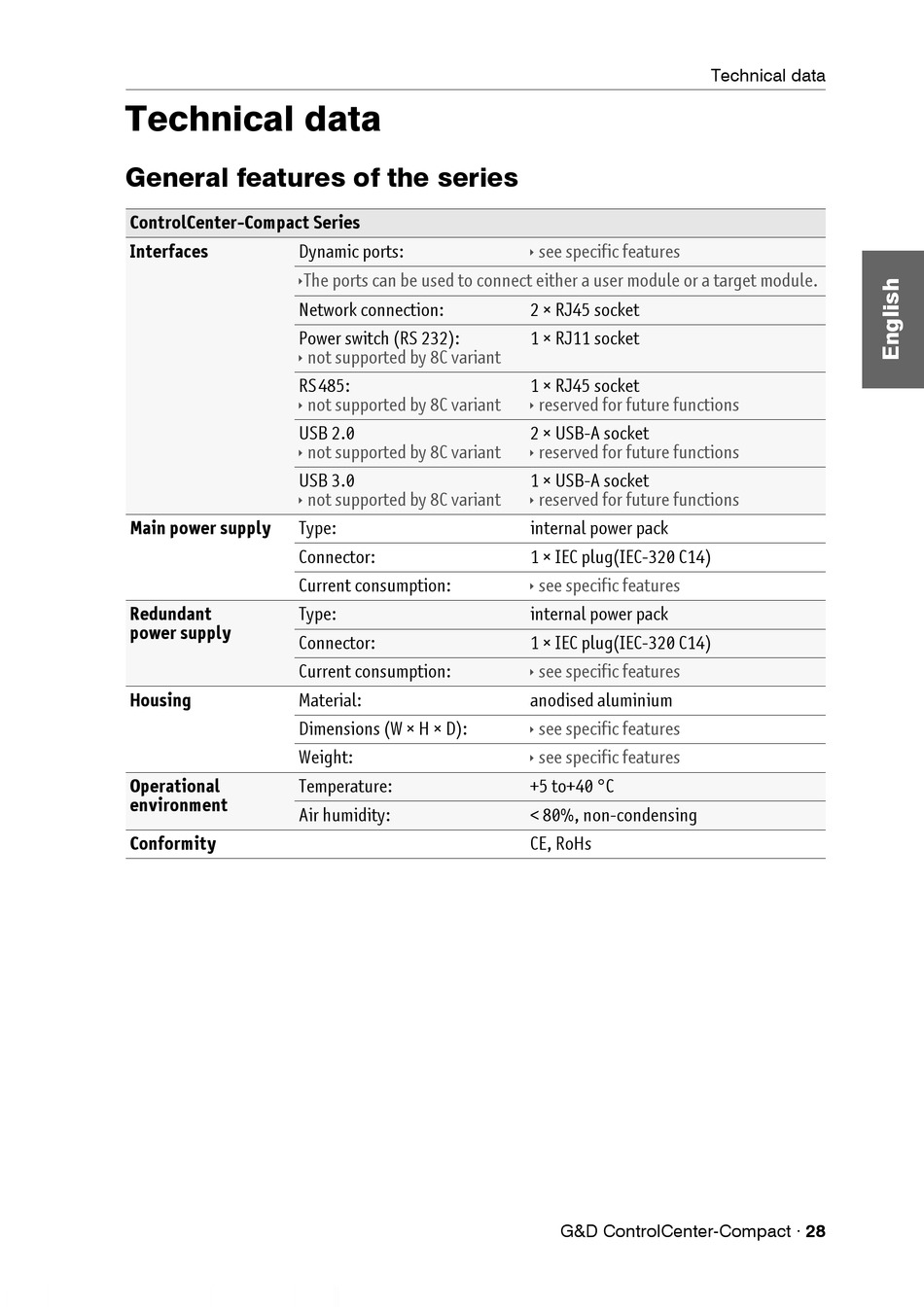

Technical data

General features of the series

ControlCenter-Compact Series
Interfaces Dynamic ports:
The ports can be used to connect either a user module or a target module.
Network connection:
Power switch (RS 232):
 not supported by 8C variant
RS 485:
 not supported by 8C variant
USB 2.0
 not supported by 8C variant
USB 3.0
 not supported by 8C variant
Main power supply Type:
Connector:
Current consumption:
Redundant Type:
power supply
Connector:
Current consumption:
Housing Material:
Dimensions (W × H × D):
Weight:
Operational Temperature:
environment
Air humidity:
Conformity
 see specific features
2 × RJ45 socket
1 × RJ11 socket
1 × RJ45 socket
 reserved for future functions
2 × USB-A socket
 reserved for future functions
1 × USB-A socket
 reserved for future functions
internal power pack
1 × IEC plug(IEC-320 C14)
 see specific features
internal power pack
1 × IEC plug(IEC-320 C14)
 see specific features
anodised aluminium
 see specific features
 see specific features
+5 to+40 °C
< 80%, non-condensing
CE, RoHs
G&D ControlCenter-Compact · 28
