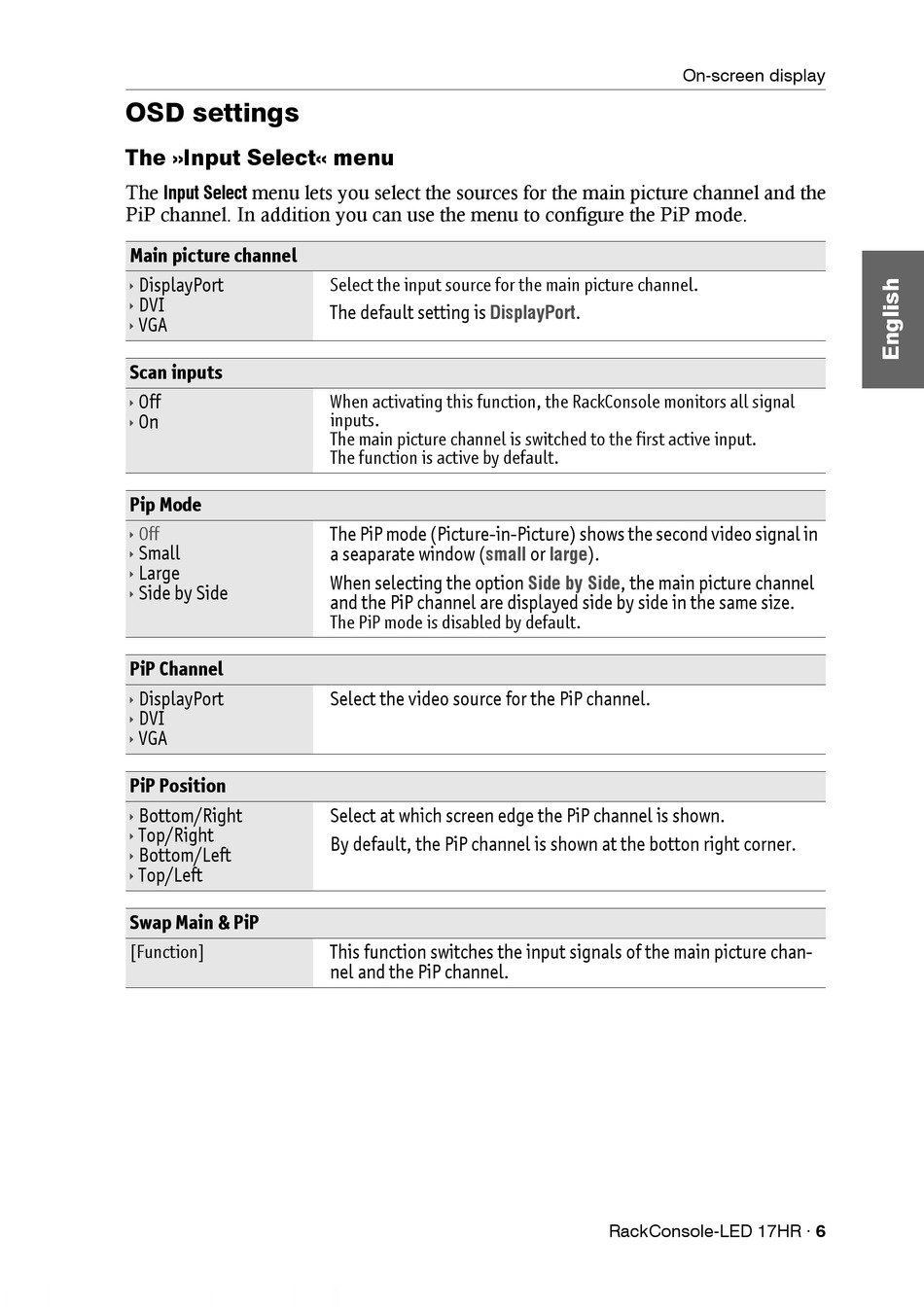

OSD settings

The »Input Select« menu
The Input Select menu lets you select the sources for the main picture channel and the
PiP channel. In addition you can use the menu to configure the PiP mode.
Main picture channel
DisplayPort

DVI

VGA

Scan inputs
Off

On

Pip Mode
 Off
Small

Large

Side by Side

PiP Channel
DisplayPort

DVI

VGA

PiP Position
Bottom/Right

Top/Right

Bottom/Left

Top/Left

Swap Main & PiP
[Function]
Select the input source for the main picture channel.
The default setting is DisplayPort
When activating this function, the RackConsole monitors all signal
inputs.
The main picture channel is switched to the first active input.
The function is active by default.
The PiP mode (Picture-in-Picture) shows the second video signal in
a seaparate window (
small
When selecting the option
and the PiP channel are displayed side by side in the same size.
The PiP mode is disabled by default.
Select the video source for the PiP channel.
Select at which screen edge the PiP channel is shown.
By default, the PiP channel is shown at the botton right corner.
This function switches the input signals of the main picture chan-
nel and the PiP channel.
On-screen display
.
or ).
large
, the main picture channel
Side by Side
