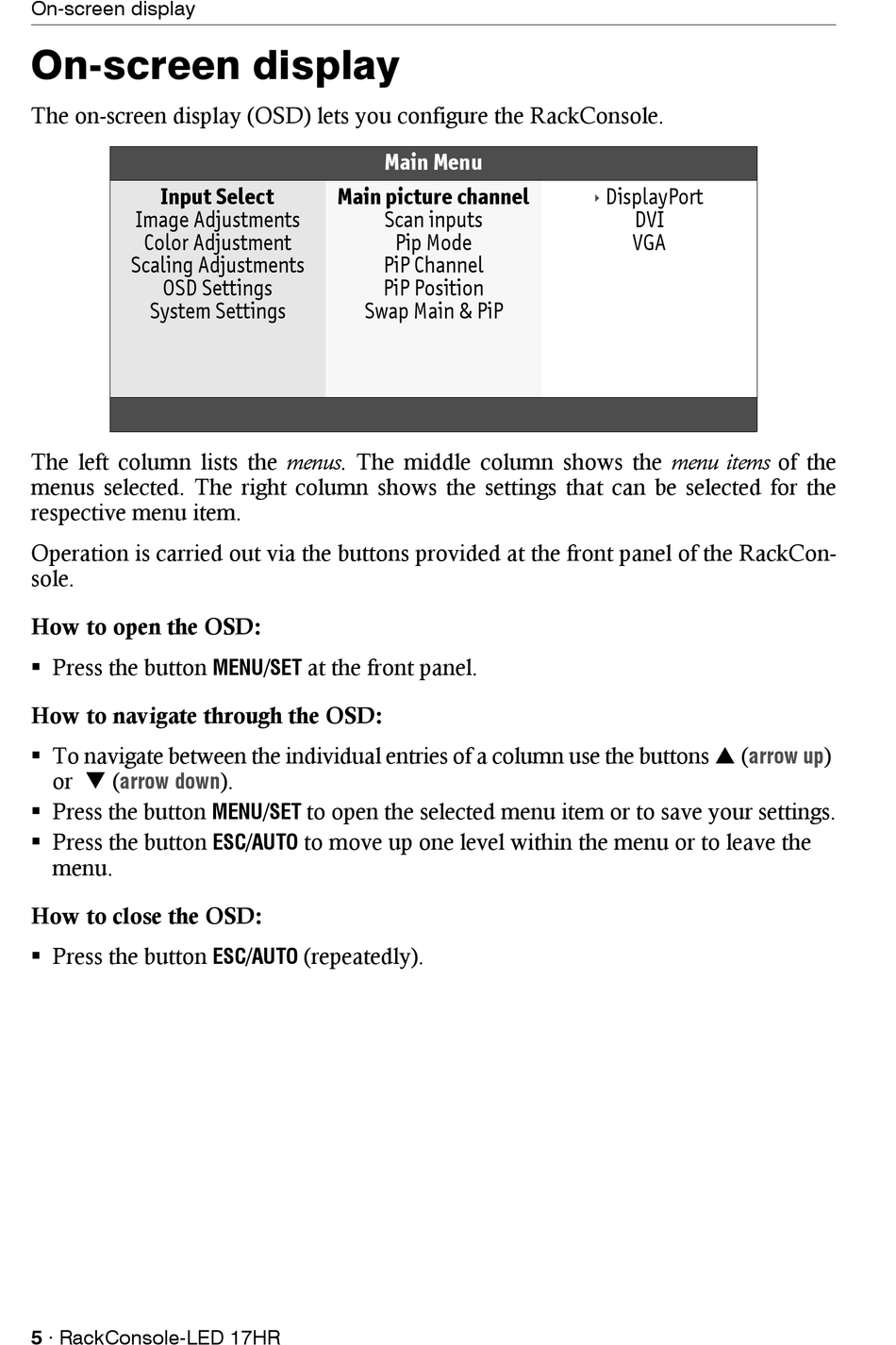

On-screen display

On-screen display
The on-screen display (OSD) lets you configure the RackConsole.
Input Select
Image Adjustments
Color Adjustment
Scaling Adjustments
OSD Settings
System Settings
The left column lists the menus. The middle column shows the menu items of the
menus selected. The right column shows the settings that can be selected for the
respective menu item.
Operation is carried out via the buttons provided at the front panel of the RackCon-
sole.
How to open the OSD:
 Press the button
How to navigate through the OSD:
 To navigate between the individual entries of a column use the buttons  (
or  ( arrow down
 Press the button
 Press the button
menu.
How to close the OSD:
 Press the button
5 · RackConsole-LED 17HR
