ACME T45 Goshawk Anleitung Seite 9

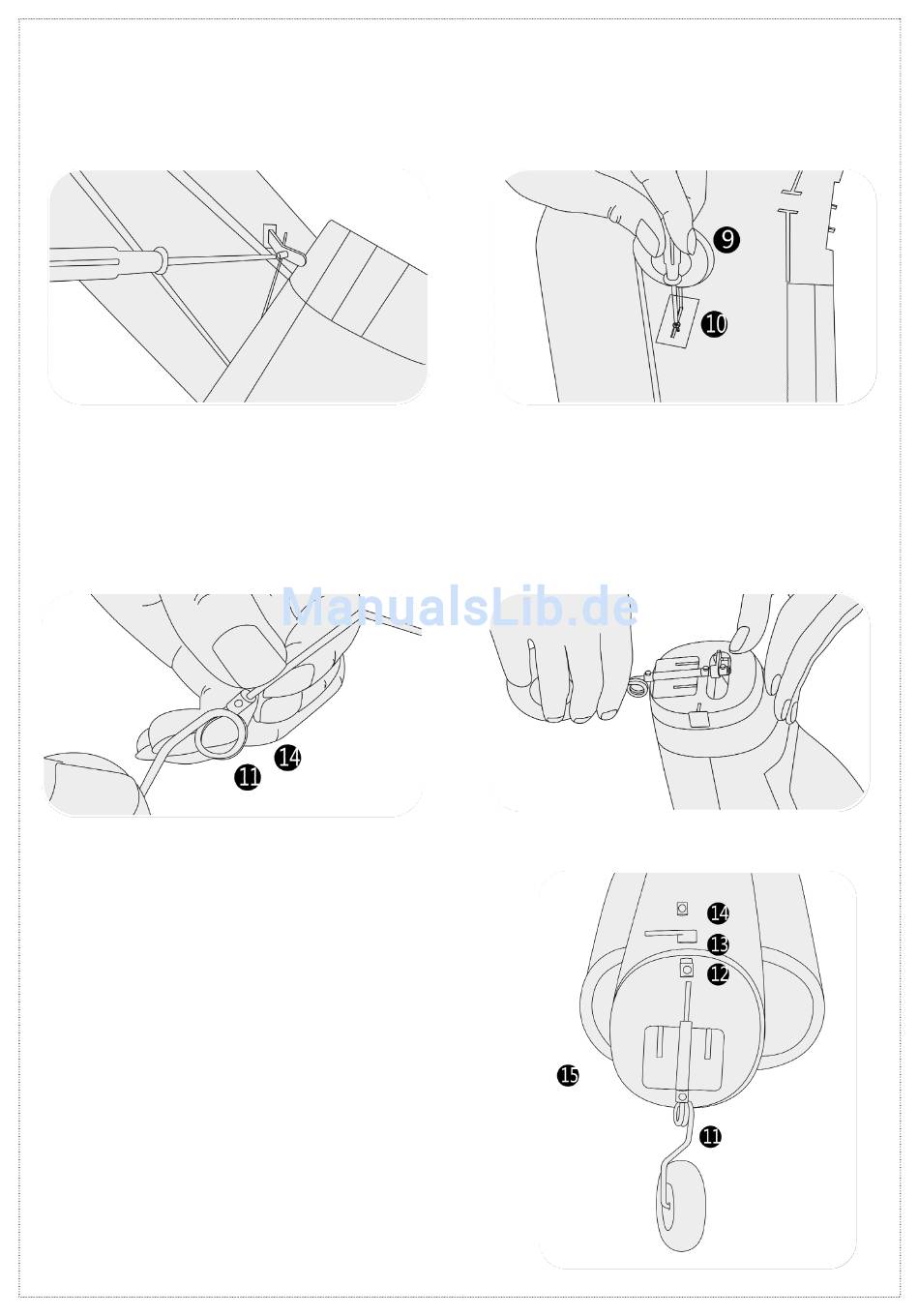

5. Guide the steel wire for the elevator through the fixing hole adjust the elevator and fix the grub screws.
6. Install the main undercarriage(9) into the fixing slots underneath each wing. Fix it with the screws (10).
7. Put the 5mm stopper(14) onto the shaft of the Nose‐Wheel (11) Landing Gear and fix the grub screw
8. Insert the shaft of the nose‐wheel landing gear through the fixing part. Put the next 5mm stopper followed by the
servo arm(13) and the final 5mm stopper (12)
9. Connect the steel wire into the servo arms hole of the front
landing gear.
10. Figure of correctly installed nose‐wheel landing gear
