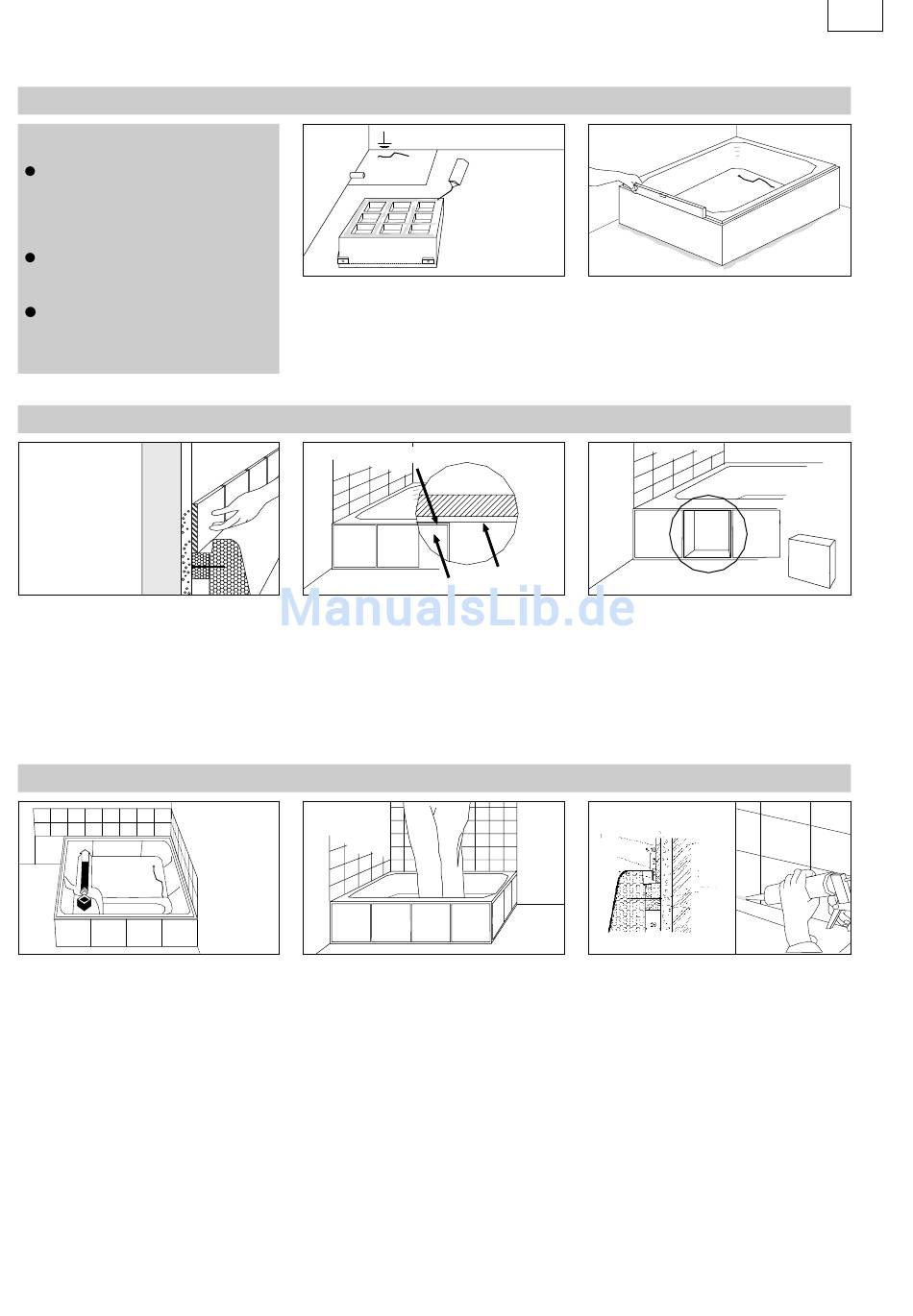

3. INSTALLATION
WARNING
Tile thickness above 7 mm
Set the shower tray support back from
the wall by the extra tile thickness.The
same applies to spacing between shower
tray support and bathtubs.
Tile thickness above 12 mm
Front sides to be tiled must be reduced
with suitable tools (hot wire devices etc.)
It is possible that the production tole-
rances allowed by DIN will make adapta-
tion work on the support necessary.
4. TILING AND INSPECTION OPENING
A.Tiling the walls
When tiling above the shower tray
support please ensure that the tiles are
fixed as exactly as possible to the mar-
king lines on the wall connection parts.
5. WALL CONNECTIONS AND GROUTING
A. Drainage fittings
Install the fittings to match the shower
tray height. Connect the fittings to the
drainage piping.
A. Glue shower support
Cut out holes for piping, then apply foam to
all floor ribs in the shower tray support
before fixing in installation location.
B. Tiling the shower tray support
Use suitable adhesive (dispersion or
flexible adhesive). Apply tiles flush with
the marking lines.
B. Inserting the shower tray
Put the shower tray in the shower tray
support and fix the drainage fittings.
To optimise grouting work the shower
tray can be moved around in the basin
support. To ensure that the shower tray
is correctly located in the support you
must apply loading for a short time.
To conclude, carry out a sealing check
and earthing.
Franz Kaldewei GmbH & Co
Post Office Box 1761 · D-59206 Ahlen · Beckumer Str. 33-35 · D-59229 Ahlen
Tel.: ++ 49 (0) 23 82/ 7 85-0 · Fax ++ 49 (0) 23 82/ 7 85-2 00
Top tile edge
Marking line
Tiles
www.kaldewei.com
B.
Align
Adjust the shower tray support until perfect-
ly level along both sides.
Do not grout tiles,
depending on size
C. Inspection opening
You should leave a small part of the drai-
nage area free of tile grouting for purpo-
ses of checking sealing and earthing. You
should then cut a conical inspection ope-
ning through the ungrouted tiles.
Plaster / dry wall
Tiles
Wall
Sealant
Sealant
Backfill
thickness
material
min. 10 mm
Fixing pin
Sound insu-
lation element
C. Sealing the joints
All surrounding joints must be sealed
with suitable silicon grout (including the
inspection opening - see 4C).
GB
